Inline Beverage Analyzer:
Fermentation Monitor

  • media
  • +1
  • In-tank fermentation monitoring of beer, wine, or spirits – no sampling required
  • Continuously tracks the progress and determines the endpoint of fermentation
  • “Install and forget” device for years of continuous operation
Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN
If you can't find your country in the list get a quote

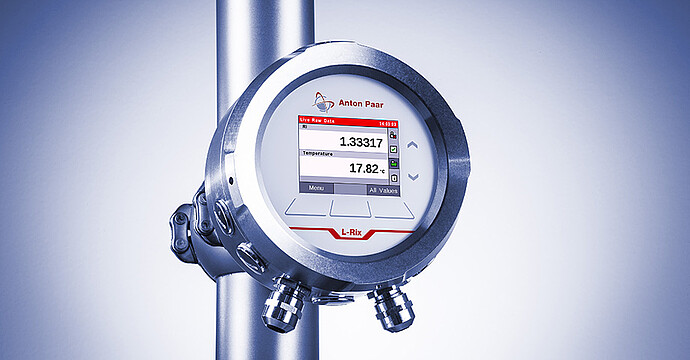

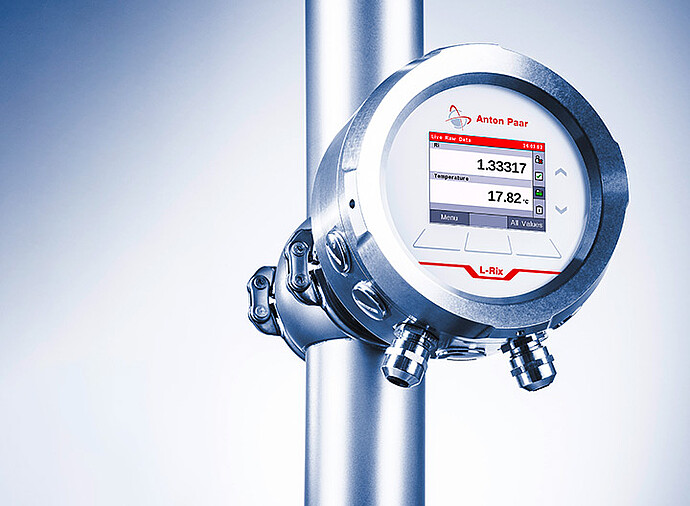

Fermentation Monitor 5100 continuously monitors the alcoholic fermentation during the production of beer, wine, or spirits via refractive index measurement directly in the tank.

The reduction in the concentration of sugars due to yeast metabolism and at the same time the increasing concentration of alcohols have opposing but predictable influences on the refractive index and can be used to determine the fermentation parameters.

Key features

Optimize and control your fermentation

Optimize and control your fermentation

Fermentation Monitor 5100 continuously tracks the progress and determines the endpoint of fermentation directly in the tank.

No time-consuming manual sampling and pretreatment of the wort is necessary. Any irregularities, such as incorrect temperature control, growth deviations, etc., are detected to ensure fermentation consistency and achieve greater end-product uniformity.

One monitor for the full range of fermentation parameters

One monitor for the full range of fermentation parameters

The Fermentation Monitor 5100 determines all relevant parameters to characterize the state of the fermentation:

  • Original extract [°Plato]
  • Apparent extract density [°Plato]
  • Alcohol [%w/w]
  • Alcohol 20 °C [%v/v]
  • Real extract [°Plato]
  • Real degree of fermentation [%]
  • Fermentation speed [Alcohol 20 °C increase in %v/v per hour]

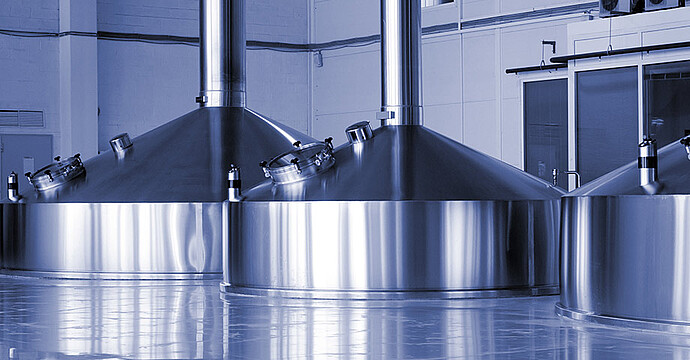

Ideal for in-tank monitoring

Ideal for in-tank monitoring

Benefit from “install and forget” simplicity and years of continuous operation. All cleaning routines are performed directly in the tank.

Technical specifications

Range
Extract 0 °Plato to 30 °Plato
Alcohol 0 %v/v to 10 %v/v
Parameters
  • Original extract [°Plato]
  • Apparent extract density [°Plato]
  • Alcohol [%w/w]
  • Alcohol 20 °C [%v/v]
  • Real extract [°Plato]
  • Real degree of fermentation [%]
  • Fermentation speed [Alcohol 20 °C increase in %v/v per hour]
Temperature control method Automatic temperature compensation; integrated Pt-100
Ambient temperature range -20 °C to 60 °C
Process temperature -20 °C to 100 °C
CIP/SIP up to 145 °C for 30 min
Pressure range, absolute 100 mbar to 16 bar (10 bar @ >120 °C)
Weight approx. 7 kg
Process wetted parts, standard Stainless steel 1.4404
PEEK
Sapphire (Al2O3 – 99.997 %)
Enclosure protection IP65; IP67 / NEMA 6P
Communication
  • Analog
  • Analog/Digital
  • HART
  • Modbus RTU
  • Modbus TCP
  • PROFIBUS DP
  • PROFINET IO
  • EtherNet/IP
Process connections Tuchenhagen VARIVENT® Type N

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
