Rotational Viscometer:
ViscoQC
-
-
-
- +12
- 360°
- Multi-point measurements on 7” color touchscreen
- Viscosity range from 24 mPa·s to 320,000,000 mPa·s
- 6 RH spindles to measure high-viscosity samples (ointments, sauces, and many more)
Do you need an easy-to-use viscometer that provides convenient operation for the most reliable and traceable viscosity results in your day-to-day work? ViscoQC rotational viscometers ensure the quality of your substance – from liquid to semi-solid.
Eliminate the risk of measurement errors and free up your time and budget with the simplest spindle exchange mechanism, automatic spindle detection, automatic speed searching function for new formulations, and more.. Your existing SOPs can be easily converted if the same setup and settings are used.
It’s time to switch to an easier way. It’s time to switch to ViscoQC.
Key features
The easiest-to-use rotational viscometer – unpack and measure
Setup takes less than two minutes: ViscoQC comes preassembled and includes an SOP booklet with first steps and straightforward user training. Our rotational viscometers guide you from startup through the entire measurement process via an intuitive user interface. Continue to use the SOP methods of your existing rotational viscometer: ViscoQC uses the same instrument setup and measuring settings to deliver the same results. Spindles with magnetic coupling for easy, fast, and safe spindle exchange come as standard.
Full traceability for reliable viscosity tests
Make your viscosity measurements error-proof and 100% traceable with our unique Toolmaster™ feature: spindles are automatically detected by the viscometer as soon as they’re attached. With ViscoQC 300, you can further restrict each method to a unique spindle identity. Furthermore, all connected accessories are detected and documented as well:
Built-in digital leveling automatically monitors and indicates the correct levelling status, which prevents faulty measurements and ensures remarkable, full-scale range accuracy of ± 1%. If you need to measure new formulations, ViscoQC automatically leads you to the right spindle/speed configuration using TruMode™.
Your future-proof rotational viscometer
You can upgrade your ViscoQC with accessories to cover any need:
- PTD 80 – For fast and accurate control of sample temperature (+15 °C to +80 °C)
- PTD 175 – High performance temperature control, suitable for standards like ASTM D2983/D8210/D5133/7110 and DIN 51398
- PTD 100 Cone-Plate – For small sample volumes (0.5 mL to 2 mL)
- ETD 300 – For high-temperature measurements of bitumen and hot melts, and for standards like ASTM D4402 and AASHTO T316

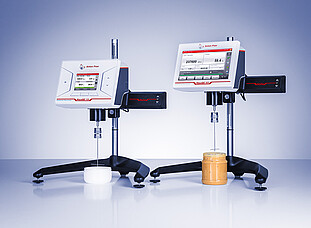

- Heli-Plus – For non-flowing substances like gels, pastes, and creams
You can add other software functionality to ViscoQC 300 with V-Curve, adding real-time graphs, analysis (e.g., yield point), programmability, and extended method functionality.
Be fully compliant within one day
ViscoQC is qualified and ready to use within a single day and is compliant to 21 CFR Part 11, GMP, and GAMP 5. The V-Comply software for ViscoQC 300 delivers features like audit trail, electronic signatures and advanced user management. Additionally, it can be accompanied by a pharma qualification document. This elevates the qualification process to much more than just a simple installation and basic IQ/OQ. An in-depth risk analysis, performance qualification, traceability matrix, and final qualification report enhance the value of the qualification package for the entire qualification process.
The most convenient way to generate and export QC data
Every ViscoQC includes the V-Collect PC data collection software. As ViscoQC 100 doesn’t store any data, results are directly exported or printed via the Brother QL-700 label printer after each test. ViscoQC 300 has memory space for up to 999 measurements with up to 10,000 sub-measurements on 150 MB. Additionally, it’s possible to print and export data as PDF, CSV, page printer (USB or network), or label printer. For automated data export, ViscoQC 300 can be integrated into your network via Laboratory Information Management System (LIMS) or FTP Server. Kickstart your paperless lab with AP Connect to connect your instruments, communicate measurement information, and ensure compliance.
Durable parts, maximum uptime
Since ViscoQC uses highly durable bearings and regularly performs an automatic bearing check (TruSine™), your uptime is maximized and ongoing service costs are reduced to a minimum. All of our spindles are made of superior stainless steel (AISI 316L), which increases spindle lifetime by protecting them from corrosion.
Specifications
| ViscoQC 100 | ViscoQC 300 | |||||
|---|---|---|---|---|---|---|
| L | R | H | L | R | H | |
| Viscosity test | Single-point | Multi-point | ||||
| Viscosity range [mPa·s or cP] (depends on measuring system) | 0.2* to 6 M | 1.6** to 40 M | 13.2*** to 320 M | 0.1* to 6 M | 1.3** to 40 M | 10.6*** to 320 M |
| Speed [rpm] | 0.1 rpm to 200 rpm 740 increments | 0.01 rpm to 250 rpm Speed list with 18 standard speeds Freely selectable speeds within the speed range | ||||
| Max. spring torque [mNm] | 0.0673 | 0.7187 | 5.7496 | 0.0673 | 0.7187 | 5.7496 |
| Accuracy | ±1.0 % full scale range | |||||
| Repeatability | ±0.2 % full scale range | |||||
| Heli-Plus compatibility | ✔ | |||||
| PTD 100 Cone-Plate compatibility | ✔ | |||||
| ETD 300 compatibility | ✔ | |||||
| Peltier temperature control | +15 °C to +80 °C 0 °C to + 100 °C | +15 °C to +80 °C 0 °C to + 100 °C | ||||
| Electrical temperature control | +25 °C to +300 °C (for SSA/DIN with ETD 300) | |||||
| Liquid temperature control/sensing | Ambient to +100 °C (control of L/RH spindles with optional thermostat bath) | |||||
| Temperature sensing | -60 °C to +300 °C (temperature sensing with optional Pt100) | |||||
| Intuitive user interface | 3.5" color LCD display | 7" color touchscreen display; Options: keyboard, mouse, 2D bar code reader | ||||
| Languages | EN, DE, ES, FR, CN, JA, KO, IT, RU, PT | EN, DE, ES, FR, IT, PT, JA, KO, RU, ZH-CN, ZH-TW, PO, CZE | ||||
| Built-in digital leveling | ✔ | |||||
| Easiest spindle exchange (magnetic coupling) | ✔ | |||||
| Automatic spindle recognition (Toolmaster™) | ✔ | |||||
| Automatic measuring range calculation | ✔ | |||||
| Automatic speed searching function (TruMode™) | ✔ | |||||
| Spindle correction by user | ✔ | |||||
| Users, user groups | None | ✔ Customizable | ||||
* With optional PTD 100 Cone-Plate, with L1 spindle 15 mPa·s
** With optional PTD 100 Cone-Plate, with RH1 spindle 100 mPa·s
*** With optional PTD 100 Cone-Plate, with RH1 spindle 800 mPa·s
M = million
DIN = Concentric cylinders, double-gap
SSA = Small sample adapter (SC4-xx)
UL = Ultra-low viscosity adapter
Standards
ASTM
BS
Chinese Pharmacopoeia (ChP)
DIN
EN
ISO
Japanese Pharmacopoeia (JP)
European Pharmacopoeia (Ph. Eur.)
TAPPI
AASHTO
US Pharmacopoeia (USP)
Standards
ASTM
BS
Chinese Pharmacopoeia (ChP)
DIN
EN
ISO
Japanese Pharmacopoeia (JP)
European Pharmacopoeia (Ph. Eur.)
TAPPI
AASHTO
US Pharmacopoeia (USP)
Standards
ASTM
BS
Chinese Pharmacopoeia (ChP)
DIN
EN
ISO
Japanese Pharmacopoeia (JP)
European Pharmacopoeia (Ph. Eur.)
TAPPI
AASHTO
US Pharmacopoeia (USP)
Standards
ASTM
BS
Chinese Pharmacopoeia (ChP)
DIN
EN
ISO
Japanese Pharmacopoeia (JP)
European Pharmacopoeia (Ph. Eur.)
TAPPI
AASHTO
US Pharmacopoeia (USP)
Standards
ASTM
BS
Chinese Pharmacopoeia (ChP)
DIN
EN
ISO
Japanese Pharmacopoeia (JP)
European Pharmacopoeia (Ph. Eur.)
TAPPI
AASHTO
US Pharmacopoeia (USP)
Standards
ASTM
BS
Chinese Pharmacopoeia (ChP)
DIN
EN
ISO
Japanese Pharmacopoeia (JP)
European Pharmacopoeia (Ph. Eur.)
TAPPI
AASHTO
US Pharmacopoeia (USP)
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
Adhesives | Measurement of Hot Melt Adhesives According to ASTM D3236 Application Reports
-
Adhesives | ViscoQC Quality Control of Adhesives Application Reports
-
Asphalt, Bitumen | Measurement of bitumen according to ASTM D4402 / AASHTO T316 Application Reports
-
Beverages | ViscoQC Quality Control of Fruit Juice Application Reports
-
Chemicals | Rotational Viscosity Testing in Battery Cell Manufacturing Application Reports
-
Chemicals | Rotational Viscosity Testing of Isocyanates with ViscoQC Application Reports
-
Coatings, Paints | ViscoQC Quality Control of Coatings and Paints Application Reports
-
Cosmetics | Rotational Viscosity Testing of Make-up (Remover) with ViscoQC Application Reports
-
Cosmetics, Pharma | Rotational Viscosity Testing of Hand Sanitizer with Visco Application Reports
-
Detergents | ViscoQC Quality Control of Dishwashing Detergents Application Reports
-
E-Book - Field Guide to Food and Feed Testing Application Reports
-
E-Book - The Field Guide to Data Integrity in Regulated Industries Application Reports
-
E-Book - The Future of Plant-Based Foods Application Reports
-
Food | Rotational Viscosity Testing of Chocolate with ViscoQC Application Reports
-
Food | Rotational Viscosity Testing of Dairy Products with ViscoQC Application Reports
Similar products
ViscoQC FAQ
A. General
B. Cleaning
C. Maintenance
D. ViscoQC 300 and its software packages
E. Contact
Consumables, Accessories & Software
Consumables, Accessories & Software
Accessories & Software
Accessories & Software
If you do not find the item you require, please contact your Anton Paar sales representative.
To find out if you can purchase online from your location, check the online availability below.
MOUNTING LINK SET
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD CANNON N44 500mL-90/35/5.8mPa.s 20/40/100°C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Spindle Link (5pcs)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD ANTON PAAR S60 500 ml - 140 / 46 / 6.0 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD ANTON PAAR N350 500 ml - 1100 / 270 / 19 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD ANTON PAAR S30000 500 ml - xxxxx / 21000 / 540 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD ANTON PAAR S200 500 ml - 565 / 157 / 15 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
PEEK PLUG MEASURING SYSTEM DIN/SSA/UL
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
GEL TIME KIT
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- A measuring kit for determining gel times of thermosetting compounds, resins, glues, etc.
- The glass rods, which serve as measuring bobs, can be used as disposable parts.
100 pcs. disp. cups DC-CC18 elongated For SC4-xx, CCxx bobs
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
GLAND 3.7x1.5x1.5 PTFE
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
ALLEN SCREW M3x5 STAINLESS STEEL
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
GLASS SYRINGE 5 ml LUER LOCK
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
INSULATION HOSE ARMAFLEX D12/34
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
COUNTERSUNK SCREW I-TORX M2.5x6 A2
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD SET FOR SVM 3000 4x4oz(120ml) CANNON S3, N14, N44, N415
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VISCOSITY STANDARD H2O 1000 ml BIDEST. STERILE
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SEAL RING G 1/8 PVC
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
DESICCANT BAG DESI PAK ( 15 pcs.) 4 DIN UNITS = 125 g
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
O-RING 7x2 FPM 75 VITON EXTREME
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
HOSE 6.4x9.6 mm TYGON CHEMICAL (FORMERLY:
NORPRENE CHEMICAL)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SEALING GASKET PTFE GL45
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB ETD SC4-34 SOLID 2 PARTS
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Vapor protection for PTD 80
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
LABEL PRINTER USB DYMO LabelWriter 450 Duo
ViscoQC 300 L | 300 R | 300 H
Hand Wheel Set
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
TOUCHSCREEN STYLUS
ViscoQC 300 L | 300 R | 300 H
Flat bath cover for PURA 10
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
COOLING COIL FOR PURA 10
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
JULABO PURA 10 WATERBATH 20...100 °C +/-0.15 °C, 230V/50-60Hz
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
LABELS 90 x 29 mm, 1 x 400 pcs. FOR BROTHER Label Printer
ViscoQC 100 L | 100 R | 100 H
Pt100 Clip
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Marking Tool CC12/Dm18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Spindle L5
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Display Protection Foil ViscoQC 300
ViscoQC 300 L | 300 R | 300 H
ANGULAR SCREWDRIVER TORX T10
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
ANGULAR SCREWDRIVER TORX T20
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
O-RING 22x3 VMQ 70 SILICONE (RED-BROWN)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- O-ring sitting on the bottom plug of cups of the following DIN/SSA/UL systems.
- Recommended for low- and high-temperature range, especially when working with PTD 175 Peltier temperature device.
VISCOSITY STANDARD APCL68 CCS (500 mL)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Low-temperature viscosity standard.
- Viscosity values from 19,584 mPa.s (-15 °C) up to 11,417 mPa.s (-10 °C)
VISCOSITY STANDARD APCL60 CCS (500 mL)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Low-temperature viscosity standard.
- Viscosity values from 21,961 mPa.s (-18 °C) up to 5,731 mPa.s (-5 °C)
SILICONE VISCOSITY STANDARD AP RT30k 600 ml - 33 / 30 Pa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- 33 Pa·s / 30 Pa·s at 20 °C / 25 °C
- Recommended for ViscoQC x00 - H
SILICONE VISCOSITY STANDARD AP RT5k 600 ml - 5.6 / 5.0 Pa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- 5.6 Pa·s / 5.0 Pa·s at 20 °C / 25 °C
- Recommended for ViscoQC x00 - R
SILICONE VISCOSITY STANDARD AP RT500 600 ml - 554 / 501 mPa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- "554 mPa·s / 501 mPa·s at 20 °C / 25 °C
- Recommended for ViscoQC x00 - L and ViscoQC x00 - R"
SILICONE VISCOSITY STANDARD AP RT10 600 ml - 11 / 10 mPa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- 11 mPa·s / 10 mPa·s at 20 °C / 25 °C
- Recommended for ViscoQC x00 - L
VISCOSITY STANDARD ANTON PAAR N26 (C) 100 ml - 50 / 21 / 4.2 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Recommended for DIN/SSA/UL spindles
VISCOSITY STANDARD ANTON PAAR N7.5 (M) 100 ml - 10 / 5.4 / 1.6 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Recommended for DIN/SSA/UL spindles
VISCOSITY STANDARD ANTON PAAR S3 (L) 100 ml - 3.7 / 2.3 / 0.9 mPa.s
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Recommended for DIN/SSA/UL spindles
VISCOSITY STANDARD ANTON PAAR N415 (H) 100 ml - 1100 / 330 / 32 mPa.sc
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Recommended for DIN/SSA/UL spindles
LABELS 89 x 28 mm, 2 x 130 pcs. FOR DYMO LabelWriter
ViscoQC 100 L | 100 R | 100 H
For Dymo LabelWriter (ViscoQC 100 only)
LABELS 89 x 36 mm, 2 x 260 pcs. FOR DYMO LabelWriter
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
For Dymo LabelWriter (ViscoQC 100, ViscoQC 300)
SILICONE VISCOSITY STANDARD AP RT50 600 ml - 55 / 50 mPa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
55 mPa·s / 50 mPa·s at 20 °C / 25 °C
SILICONE VISCOSITY STANDARD AP RT100 600 ml - 111 / 100 mPa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
111 mPa·s / 100 mPa·s at 20 °C / 25 °C
SILICONE VISCOSITY STANDARD AP RT1k 600 ml - 1.1 / 1.0 Pa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
1.1 Pa·s / 1.0 Pa·s at 20 °C / 25 °C
SILICONE VISCOSITY STANDARD AP RT12k 600 ml - 14 / 13 Pa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
14 Pa·s / 13 Pa·s at 20 °C / 25 °C
SILICONE VISCOSITY STANDARD AP RT60k 600 ml - 66 / 60 Pa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
66 Pa·s / 60 Pa·s at 20 °C / 25 °C
SILICONE VISCOSITY STANDARD AP RT100k 600 ml - 111 / 100 Pa.s at 20 / 25 °C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
111 Pa·s / 100 Pa·s at 20 °C / 25 °C
Centering adapater PTD 80
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
FOAM PACKING MATERIAL ViscoQC
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
VITON O-RING FOR DIN/SC4 SYSTEMS
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
O-ring sitting on the bottom plug of cups of the following DIN/SSA systems.
HOLDER DISPOSABLE MEASURING CUP CC12/D18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
O-RING 22x3 EPDM 70
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
O-ring sitting on the bottom plug of cups of the following DIN/SSA systems.
GLASS ROD
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
10 pcs. of glass rods for Gel Time Kit.
DISPOSABLE MEASURING CUP D22 1 pack = 100 pcs. (blank aluminium)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
For measuring system 4B2 insulated and L1D22.
VISCOSITY STANDARD APCL16 CCS (500 mL)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Low-temperature viscosity standard.
- Viscosity values from 10 459 mPa.s (-40°C) up to 1 014 mPa.s (-18°C)
VISCOSITY STANDARD APCL20 CCS (500 mL)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Low-temperature viscosity standard
- Viscosity values from 21,337 mPa.s (-40 °C) up to 862.4 mPa.s (-10 °C)
VISCOSITY STANDARD APCL25 CCS (500 mL)
ViscoQC 100 L | 100 R | 300 L | 300 R | 300 H
- Low-temperature viscosity standard.
- Viscosity values from 19,907 mPa.s (-35 °C) up to 1,371 mPa.s (-10 °C)
VISCOSITY STANDARD APCL28 CCS (500 mL)
ViscoQC 100 L | 100 R | 300 L | 300 R | 300 H
- Low-temperature viscosity standard.
- Viscosity values from 16,682 mPa.s (-30 °C) up to 2,022 mPa.s (-10 °C)
VISCOSITY STANDARD APCL38 CCS (500 mL)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Low-temperature viscosity standard.
- Viscosity values from 20,950 mPa.s (-25 °C) up to 2,670 mPa.s (-5 °C)
Temperature Control Solutions for ViscoQC:
Temperature Device PTD 80
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- For ViscoQC 100/300; viscometers and temperature device from a single source
- Air cooling ensures small footprint, and reduces maintenance costs
- Exact sample temperature control of, e.g. chocolate, adhesive
- For routine QC applications from +15 °C to +80 °C (±0.1 °C)
Cone-Plate Measuring System with Integrated Peltier Temperature Device:
PTD 100 Cone-Plate
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- For small sample volumes from 0.5 mL to 2 mL
- Upgrades ViscoQC 100 and 300 to a cone-plate viscometer
- Two in one: Cone-plate and Peltier temperature device combined
- Automated gap setting process
- Magnetic coupling, Toolmaster™ feature, and temperature probe as standard
High-Temperature Viscometer Accessory:
ETD 300
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Temperature control from +25 °C to +300 °C
- Applicable for ViscoQC 100 and 300
- Full control via ViscoQC display
- For measurement of bitumen, hot melts, polymers, waxes
- Complies with ASTM D4402, D3236, AASHTO T316, EN 13302, and more
Temperature Control Solutions for ViscoQC:
Temperature Device PTD 175
ViscoQC 300 L | 300 R | 300 H
- For ViscoQC 300; viscometer and temperature device from a single source
- Air cooling saves tempering time and reduces maintenance costs
- From low-temperature engine oil to high-temperature asphalt binder tests
- Wide-range Peltier device: -45 °C to +175 °C (±0.1 °C)
Temperature Control Solutions for ViscoQC:
Temperature Device Water Bath
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- For ViscoQC 100/300 to control the sample temperature of a 600 mL beaker
- Budget-friendly solution for precise viscosity measurement
- Saves space as installation occurs on stand of ViscoQC
- From ambient to +100 °C (optional cooling coil with tap water)
Accessory for ViscoQC 100/300:

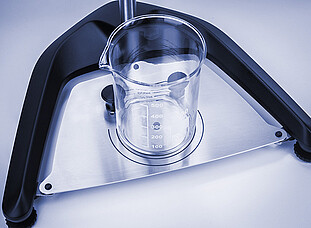

Flexible Cup Holder
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Ensures your sample is always centered in the right place
- To easily center ½ pint, pint, quart containers, or 600 mL beakers
- Easily mounted on instrument stand
- Guarantees reproducible results
USB CABLE
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Motorized accessory for ViscoQC 100/300:
Heli-Plus
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Convenient operation thanks to motorized stand instead of manual height adjustment
- Measure paste-like materials (e.g. mayonnaise) with helical T-bar spindle movement
- Simplest spindle exchange saves up to 15 seconds per measurement
SPINDLE T-E
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE T-B
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE T-A
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE T-C
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE T-F
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Measuring Systems for ViscoQC:
Spindle L/RH
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- L or RH set included in standard viscometer delivery
- According to ISO 2555/ISO 1652
- To measure in an open beaker (infinite gap)
- Flexible cup holder for highest repeatability in viscosity results
Measuring Systems for ViscoQC:
Spindle DIN systems
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Defined gap systems optionally available
- Concentric cylinders according to ISO 3219, DIN 53019
- Double-gap system according to DIN 54453
- For sample volumes from 2 mL to 18.5 mL
Measuring Systems for ViscoQC:
Spindle SSA/UL systems
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Defined gap systems optionally available
- Gap size varies between small sample adapter systems
- Ultra-low viscosity adapter, to measure from 1 mPa·s
- For sample volumes from 6.7 mL to 16.1 mL
Measuring Systems for ViscoQC:
Spindle ASTM systems
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Optional systems to determine low-temperature viscosity
- Insulated 4B2 system according to ASTM D2983/D8210
- L1D22 system according to ASTM D5133/D7110
- 4B2 requires 20 mL; L1D22 requires 16.1 mL
Measuring Systems for ViscoQC:
Spindle T-bar/Vanes
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
- Optional systems to measure non-flowing samples
- T-bar spindles require Heli-Plus for helical movement
- Vanes to measure samples with particles (0.1 mm to 2 mm)
- Measure in an open beaker or directly in a sample container
MEASURING BOB SC4-14
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-15
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-16
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-6R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-7R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-8R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM SC4-14/6R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM SC4-15/7R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM SC4-16/8R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB CP40
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB CP41
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB CP52
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB CP51
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB CP42
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP PTD 100 Cone-Plate
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MOUNTING TOOL PTD 100 Cone-Plate FOR CONE-PLATE MEASURING BOBS
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM SC4-25
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-UL26/SS
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB B-UL26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-25
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-28
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-29
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-31
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-34
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
LABEL PRINTER USB BROTHER Label Printer QL-700
ViscoQC 100 L | 100 R | 100 H
SPINDLE SET T-BAR
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE T-D
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
CLAMP FOR T-Bar SPINDLE
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
CARRYING CASE ViscoQC
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM DG26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM CC26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM CC18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM CC12
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
SPINDLE GUARD R
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Recommended for ViscoQC x00 - R
SPINDLE GUARD L
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Recommended for ViscoQC x00 - L
PT100 TEMPERATURE SENSOR
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Comes with a metal clip (mounting clamp) for fixing the Pt100 sensor on the rim of open sample vessels or on the L/R spindle guard.
SPINDLESET RH
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLESET L
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH1
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RACK
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
DIN ADAPTER
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Required for measurement with a concentric cylinder (CC), double-gap (DG), ultra-low viscosity adapter (UL), or SSA (SC4) measuring system if not using a Peltier temp. device.
KEYBOARD USA USB
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
KEYBOARD GERMAN USB
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM DG26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
JULABO CORIO C-BT5 BATH THERMOSTAT 20...100 °C +/-0.03 °C, 208-230V/50-60Hz
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires stand for bath thermostat (P/N 194946) and stainless bath cover (P/N 194765) to be mounted on ViscoQC and to operate 600 mL beakers from ambient to +100 °C. 208 V to 230 V / 50 Hz to 60 Hz
STAINLESS BATH COVER FOR 600 ml BEAKER ACCESSORY JULABO CORIO C-BT5 (191891)
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
For Julabo bath thermostat to operate 600 mL beakers
STAND FOR BATH THERMOSTAT CORIO C-BT5
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
To mount Julabo bath thermostat on ViscoQC
JULABO CORIO C-BT5 BATH THERMOSTAT 20ºC_100°C +/-0.03°C, 100-115V/50-60Hz
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires stand for bath thermostat (P/N 194946) and stainless bath cover (P/N 194765) to be mounted on ViscoQC and to operate 600 mL beakers from ambient to +100 °C. 100 V to 115 V / 50 Hz to 60 Hz
SPINDLESET VANES
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Includes vane spindles V71 to V73.
SPINDLE V75
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Has only full immersion. For very low sample volume.
MEASURING SYSTEM SC4-18
ViscoQC 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM SC4-21
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
ETHERNET CABLE FOR PC CONNECTION CAT5E, RJ45G-RJ45G, SFTP, 2 m, CROSSED
ViscoQC 300 L | 300 R | 300 H
Only for ViscoQC 300. Cable for LIMS Bridge connection to PC for transferring measurement data.
MEASURING SYSTEM SC4-27
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
BARCODE SCANNER 2D WITH USB CABLE
ViscoQC 300 L | 300 R | 300 H
Only for ViscoQC 300
COVER DIN SPINDLES
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Made of PEEK to cover cups of DIN/SSA systems.
MEASURING SYSTEM CC12/D18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
SPINDLE V74
ViscoQC 100 L | 100 R | 300 L | 300 R | 300 H
Has only full immersion. For very low sample volume.
EXTERNAL POWER SUPPLY
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP LOCK
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
PROTECTING COVER FOR KEYBOARD
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
POWER SUPPLY PoE INCL. POWER CABLE
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
COOLING COIL FOR BATH THERMOSTAT
ViscoQC 100 R | 100 H | 300 L | 300 R | 300 H
- For operating the Julabo CORIO™ C-BT5 Bath
- Thermostat close to ambient temperature
SPINDLE L1
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
ANGULAR SCREWDRIVER TORX T30
ViscoQC 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE L2
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE L3
ViscoQC 100 L | 100 R | 100 H | 300 R | 300 H
SPINDLE L4
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH2
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH3
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH4
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH5
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH6
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
SPINDLE RH7
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
PACKING SPINDLESET ViscoQC
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB B-CC12
ViscoQC 100 L | 100 R | 300 L | 300 R | 300 H
MEASURING CUP C-CC12
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB B-CC18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-CC18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB B-CC26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-CC26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB B-CC12/D18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB B-DG26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-DG26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-DG26/SS
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING CUP C-CC18/SS
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-18
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-21
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING BOB SC4-27
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
MEASURING SYSTEM SC4-28
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM SC4-29
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM SC4-31
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM SC4-34
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter or Peltier temp. device to be mounted on ViscoQC
MEASURING SYSTEM UL26
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Requires DIN adapter to be mounted on ViscoQC or PTD 175 Peltier temperature device for ViscoQC 300 only
HOLDER DISPOSABLE MEASURING CUP D22
ViscoQC 100 L | 100 R | 100 H | 300 L | 300 R | 300 H
Software Solutions for ViscoQC:
Software V-Curve
ViscoQC 300 L | 300 R | 300 H
- Upgrade your stand-alone ViscoQC 300
- Follow your measurement data live
- Programmable with up to 50 steps for more sophisticated tests
- For easy analysis of test data, e.g. yield stress, gel time, pot life
Lab Execution System:
AP Connect Start
ViscoQC 300 L | 300 R | 300 H
- Kickstart your paperless lab
- Featuring key benefits of the Standard edition
- Restricted to one instrument, single user access, one export rule
Lab Execution System:
AP Connect Standard subscription license
ViscoQC 300 L | 300 R | 300 H
- Annual fee per instrument
- Time-saving processes: automatic, digital data transfer
- Top data quality: elimination of transcription errors
- Fast decisions: data at your fingertips
Lab Execution System:
AP Connect Standard one-time license
ViscoQC 300 L | 300 R | 300 H
- One-time fee per instrument
- Time-saving processes: automatic, digital data transfer
- Top data quality: elimination of transcription errors
- Fast decisions: data at your fingertips
Lab Execution System:
AP Connect Pharma subscription license
ViscoQC 300 L | 300 R | 300 H
- Annual fee per instrument
- Time-saving processes: automatic, digital data transfer
- Assurance of lab data integrity
- Fast decisions: data at your fingertips
Lab Execution System:
AP Connect Pharma one-time license
ViscoQC 300 L | 300 R | 300 H
- One-time fee per instrument
- Time-saving processes: automatic, digital data transfer
- Assurance of lab data integrity
- Fast decisions: data at your fingertips
Software Solutions for ViscoQC:
Software V-Comply
ViscoQC 300 L | 300 R | 300 H
- Upgrade your stand-alone ViscoQC 300
- Full compliance with FDA 21 CFR Part 11
- Adds audit trail, electronic signature, and more
- Optional qualification documentation available
Plant-Based Foods Analysis
Find out more
Next-generation food analysis
Find out more
Food and Feed Testing
Find out more
