SAXS/WAXS/BioSAXS System:
SAXSpace
- Small angle X-ray Scattering studies on 1.8 m x 0.9 m footprint
- Investigate nanostructured materials whenever you want
- Perform stability studies on non-ambient conditions
- Measure your samples directly in a native biological environment
- Increase throughput up to 192 liquid samples

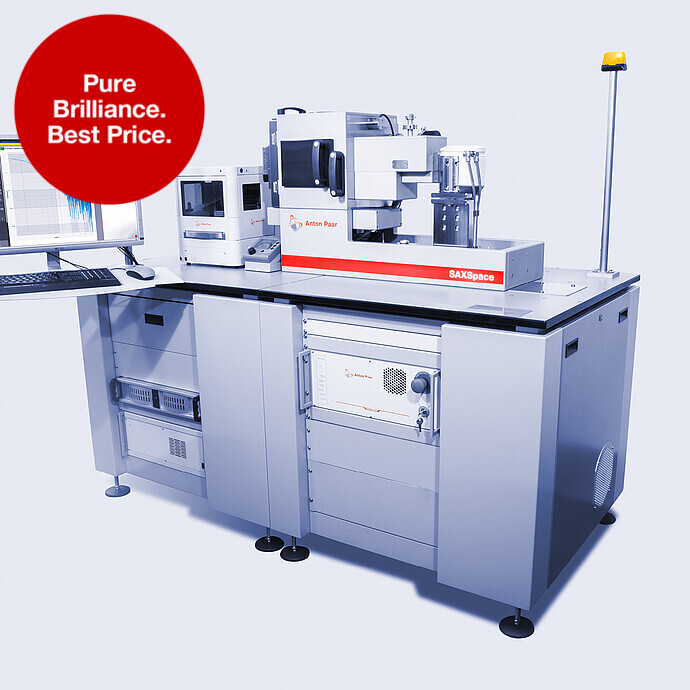

SAXSpace is a compact (size info) lab-scale system for SAXS and WAXS studies. The line-collimation beam is optimized for the analysis of isotropic samples with very short measurement times. It determines the size, size distribution, and shape of nano-sized particles and sample domains and is especially suited for analyzing isotropic, colloidal, and biological samples (BioSAXS). SAXSpace’s robust design, high system uptime, and automated workflows ensure a high sample throughput and high-quality SWAXS results.
Key features
Speed up your daily lab work: optimized for high throughput
The investigation and characterization of biological samples, like proteins and enzymes or nanoparticle dispersions, typically require multiple analyses of many samples at once. SAXSpace is optimized to handle up to 192 liquid samples in an automated workflow. Combined with the ASX autosampler, fast and precise sampling and efficient cleaning without operator input are ensured. This enables measurements overnight, providing you with complete data sets for analysis when you start the next day. The ASX autosampler is equipped with a cooling option, which is often necessary for sensitive biological samples.
Facilitate your SAXS analysis with TrueFocus and Stagemaster
Alignment is achieved at the push of a button with TrueFocus, a fully automated and intelligent self-alignment of all X-ray components and sample stages.
In parallel, Stagemaster automatically recognizes which stage is implemented and configures the system accordingly. This ensures the best possible result for your measurement setup without any manual steps and gives you full flexibility for your measurements.
Investigate structures from the atomic level to a few hundred nm
TrueSWAXS enables simultaneous and continuous SWAXS studies up to 60° 2Ѳ at uniform resolution. With the collected scattering signal at low angles (SAXS), you get information on large assemblies like particle structure and the particle/macromolecule assembly, up to a few hundred nanometers, whereas the signal at large angles (WAXS) gives information on the crystalline structure at the atomic level. The TrueSWAXS feature delivers all of this in one go from one and the same sample and helps you accelerate your throughput for multiple analyses. With TrueSWAXS, there is no need to re-align your system. You can be sure of uniform resolution and reliable results.
Wide range of measurement options: Versatile sample stages
The versatile SAXSpace sample chamber gives you countless analysis options and full experimental flexibility. Benefit from a wide range of sample stages and holders for ambient and non-ambient studies, like temperature-controlled- (-150 °C to 600 °C), humidity-, defined mechanical load studies, automated measurements of multi-solid/paste-like/liquid samples or analysis of thin films and nanostructured surfaces (GISAXS). The sample stages are plug-and-play and automatically recognized via Stagemaster, which configures the system automatically.
Get straight to your results
Control and analysis of scattering data calls for powerful software solutions. SAXSdrive™ and SAXSanalysis™ support automated routine steps, like measurement setup and alignment, and thereby comprehensive data analysis. Benefit from serial measurements, automated sampling, temperature scans, and time-dependent studies, and analyze your received 1D and 2D data sets. Determination of parameters like radius of gyration (RG), particle size, Porod constant, specific surface, Kratky plot, etc., is standard in SAXSanalysis™. For advanced structure interpretation (PCG) like particle size, size distribution, shape, and inner structure, IFT and deconvolution techniques are available.
Technical specifications
X-ray source | Primux 3000 sealed tube (Cu, Mo) |
X-ray optics | Custom-designed multilayer optics (fully evacuated) Advanced scatterless Kratky-based block beam collimation (fully evacuated) |
Sample stages/Autosamplers |
|
Special features | TrueFocus: self-alignment with X-ray beam TrueSWAXS: simultaneous SWAXS studies up to 60° 2Ѳ StageMaster: YZ stage with auto-recognition of sample stages |
System resolution | qmin: 0.03 nm-1 |
Sample environment - Temperature range - Atmosphere | -150 °C to +600 °C, ±0.1 °C Vacuum, air, inert gas, humidity (reactive gases on request) |
Sample holders |
|
Measurement time | <1 minute to 30 minutes (typical) |
Detectors | 1D Mythen2 R series and 2D EIGER R series HPC detectors |
Accessible q range | 0.03 nm-1 to 40.7 nm-1 200 nm > d > 0.15 nm |
Software | SAXSdrive™ measurement and acquisition software SAXSanalysis™ data processing and analysis software Advanced data interpretation software (PCG) |
Dimensions (footprint) | 1.8 m x 0.9 m (L x D) |
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
An Insight into the Structure of Copolymer Surfactants Application Reports
-
An Insight into the Structure of Surfactants Application Reports
-
Characterization of Fibrous Materials with SAXS Application Reports
-
Coenzyme Q10 - Organic Nanoparticle Characterization Application Reports
-
Coir Fibers - SWAXS Studies of Structural Changes Induced by Tensile Stress Application Reports
-
Fast SAXS Studies of Sensitive Biological Samples Application Reports
-
In-line SEC-SAXS of HSA Protein Using a Laboratory SAXS Instrument Application Reports
-
Integration of SAXS and NMR for Structure Determination of Biomolecules Application Reports
-
Measurement of Biological Fibers Application Reports
-
Protein Mass Determination using Small Angle X-Ray Scattering Application Reports
-
Protein Shape Determination by Small Angle X-Ray Scattering Application Reports
-
Quality Control of Pharmaceutical Excipients during Storage and Processing Application Reports
-
Quantum dots - Size Determination by SAXS Application Reports
-
Size and Shape of Gold Nanoparticles in an Organic Solvent via SAXS Application Reports
-
Size and Size Distribution of Gold Nanoparticles by SAXS Application Reports
Consumables & Accessories
Consumables & Accessories
Accessories
Accessories
If you do not find the item you require, please contact your Anton Paar sales representative.
To find out if you can purchase online from your location, check the online availability below.
HV BULB 24V FOR ID3003 GENERATOR Spare bulb for the high voltage lamp of the ID3003 X-ray
QUARTZ CUVETTE 1 mm FOR TCS Sample holder with 1 mm quartz capillary for measurements of
Temperature-Controlled Sample Stages:
TCStage
- Temperature-controlled sample stages for single samples
- Dedicated sample holders for liquids, solids, pastes, and gels
- Special sample holders e.g. for sample spinning, under pressure, and for disposable capillaries
- Temperature range from -150 °C to +600 °C
Autosampler:
ASX
- High sample throughput of up to 192 samples from 96 well plates
- High-precision injection down to 10 µL sample volume
- Compatible with all Anton Paar flow-through cells: Flow Cell, Tube Cell, SiN Cell
- Minimal bench space required
GISAXS Stage 2.0
- Investigation of nanostructured surfaces and thin film samples
- Ideal for mesoporous thin films, surface-deposited nanoparticles, metal deposits on oxide surfaces, soft matter systems, and biological materials attached to surfaces
- Samples can be tilted and rotated
Tensile Stage 2.0
- The only commercially available stage specially designed for in-situ SWAXS studies of stress/strain phenomena
- For investigating fibers, foils, and thin films
- Studies at forces between 0.01 N and 600 N
- Temperature range from -150 °C to +350 °C
Humidity Stage
- For temperature- and humidity-dependent SAXS and WAXS studies of nanostructures
- Ideal for investigating the influence of temperature and humidity on powders and thin films
- Studies in vacuum, air, and inert gas from 10 °C up to 110 °C
