Digital performance refractometer:
Abbemat

Model:
  • For routine quality control measurements of refractive index and concentration at a precision of
  • +/-0.0001 nD
  • Avoids human errors by showing a clear pass/fail result
  • Connects to other Anton Paar instruments for multiparameter measurements
  • Highly precise (+/-0.00002 nD) routine quality control of refractive index and concentration
  • Avoids human errors by showing a clear pass/fail result
  • Connects to other Anton Paar instruments for multiparameter measurements
  • Precise refractive index (+/-0.0001 nD) and concentration measurement in all industries
  • Full 21 CFR Part 11 compliance with complete pharma feature set and data integrity software solutions
  • Highest precision (+/-0.00002 nD), ideal for R&D and advanced quality control applications
  • Full 21 CFR Part 11 compliance with complete pharma feature set and data integrity software solutions
Online price only | excl.incl. 0VAT
Price
upon request
Purchasable online
in specific countries
Buy Anton Paar instruments online
Part number:
Check online availability Get a quote Buy this product online
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months

Abbemat refractometers allow fast and non-destructive refractive index and concentration measurements. All instruments of the Performance and Performance Plus lines provide full compliance with 21 CFR Part 11, including user levels, audit trail, and forgery-proof data export. The Abbemat T-Check feature precisely calibrates and adjusts the surface temperature of the measuring prism of all Anton Paar refractometers.

They are factory-calibrated with official standards from the Physikalisch-Technische Bundesanstalt (PTB, National Metrology Institute of Germany).

Independent of sample properties you can measure liquids, pastes, polymers, solids, turbid, colored, or opaque samples. A wide range of methods is available for each Abbemat model, allowing fast and precise concentration measurements of binary solutions.

Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
HR
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
China
ZH
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
TH
If you can't find your country in the list get a quote

Key features

More than refractive index – precise concentration measurement

More than refractive index – precise concentration measurement

Besides the standard application of refractive index measurements, Abbemat refractometers are the instruments of choice for concentration measurement of binary solutions, e.g. acids or bases. The advantages of Abbemat refractometers compared to other concentration measuring techniques are measuring speed, ease of operation, highest accuracy, low sample volume and no need of sample preparation. More than 200 methods are available for all industries, e.g. pharma, food, beverage or chemical.

Durability for a long product life

Durability for a long product life

Apart from the fan, there are no moving parts in the refractometer and therefore no wear. The LED light source guarantees 100,000 hours of operation. The measuring prism is almost as hard as a diamond and therefore virtually indestructible. Both the prism and the surrounding sample well are resistant to aggressive chemicals. An optional sample well made of Hastelloy® is available.

Fit for the pharmaceutical industry

Fit for the pharmaceutical industry

The Abbemat software fully supports the requirements of the pharmaceutical industry, including GMP, 21 CFR Part 11, GAMP 5, USP, and international pharmacopoeia (e.g. Ph. Eur., JP). User management, audit trail, check and adjustment history, and electronic signature are just a few examples of the powerful pharma-compliant configuration possibilities of the Abbemat line. To minimize the time it takes to integrate your new Abbemat into your workflow, Anton Paar offers a Pharma Qualification Package.

Additionally, Anton Paar offers attractive data management solutions for the Abbemat 350/550 refractometer models to guarantee a high level of data integrity and usability.

On-site temperature calibration and adjustment

On-site temperature calibration and adjustment

The temperature is the biggest influencing factor on the refractive index. To ensure accurate results, the built-in Peltier temperature control adjusts the temperature at the prism/sample interface at an unmatched accuracy within seconds. The patented Abbemat T-Check calibrates and adjusts the surface temperature of the measuring prism for precise and traceable results. To ensure full traceability, the temperature adjustments are automatically documented in the audit trail of Abbemat.

Simplification of your work

Simplification of your work

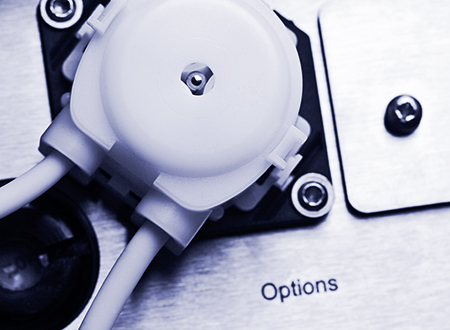

A wide range of accessories allow the adaption to every task: There are accessories available for the measurement of volatile to solid samples, low sample volumes, or samples containing particles. The Abbemat refractometers can be connected to other Anton Paar instruments, e.g. to measure density, optical rotation, or viscosity alongside refractive index and concentration. With the Performance Plus line refractometers you can automate sample filling and measurement of up to 96 samples with a sample changer or use an optional built-in peristaltic pump to fill the measuring cell with your sample.

Technical specifications

Measuring ranges Refractive index scale (RI) Abbemat 300/350 Abbemat 500/550
Range nD 1.26 to 1.72 1.26 to 1.72
Resolution nD ± 0.00001 ± 0.000001
Accuracy nD 1) ± 0.0001 ± 0.00002
Repeatability nD 1) ± 0.0001 ± 0.000002
Measuring ranges Brix scale
Range 0 to 100 % 0 to 100 %
Resolution 0.01 % 0.001 %
Accuracy 0.05 % 0.015 %
Measuring range Temperature
Range 4 to 85 °C 4 to 85 °C
Temperature probe accuacy 1) ± 0.05 °C ± 0.03 °C
Temperature probe stability 1) ± 0.002 °C ± 0.002 °C
Additional information
Wetted parts FFKM, PP GF 30, stainless steel
Sapphire
Light source LED light source, average lifetime > 100,000 h
Wavelength 589 nm
Minimum sample amount approx. 0.2 mL
Measuring time 5 seconds per sample (after temp. equilibration)
Scales/methods Sugar scales, syrup and honey scales, alcohol scales, urine scales, serum scales, more than 70 scales available
Interfaces
  • RS-232, CAN-bus, 3 USB ports
  • Ethernet and VGA connector (Performance Plus line only)


Dimensions

(W x H x D)

300 mm x 145 mm x 330 mm (11.8 in x 5.7 in x 13 in)
Weight 6.5 kg (14.3 lb)
1) valid at refractometric standard conditions (T = 20 °C, λ = 589 nm, ambient temperature = 23 °C)

Standards

AOAC

898.02
898.02
905.01
920.78
920.141
920.141
921.08
921.08
932.12
932.14, Section C
940.09
943.05
945.102
948.10
950.04
950.13
953.16
969.18
969.38
970.15
970.59
976.20
983.01
983.17
2000.19

ASTM

D542
D1218
D3321
D4095
D4542
D5006

DIN

51423

ICUMSA

GS4/3-13
SPS-3

ISI

06-1e

OIML

R 108

OIV

MA-AS2-02
MA-AS312-01B

Pharmacopoeia Europe (Ph. Eur.)

2.2.6 - Refractive index

U.S. Pharmacopoeia (USP)

831 - Refractive index
