Accessories for MCR:
Ball Measuring System & Building Material Cell
- Accessories for extended material characterization
- Measuring systems for large-particle rheology
- Designed for building materials, food products, slurries, and sludges
- Built-in temperature control
Accurate rheological characterization of suspensions with large particles is a challenge. Standard measuring geometries like cone-plate, parallel-plate, or concentric cylinders are only suitable for materials with no or very small particles and granulates. The Ball Measuring System (BMS) and the Building Material Cell (BMC) overcome this limitation and open the door to large-particle rheology.
Ball Measuring System: Opens the door to large-particle rheology

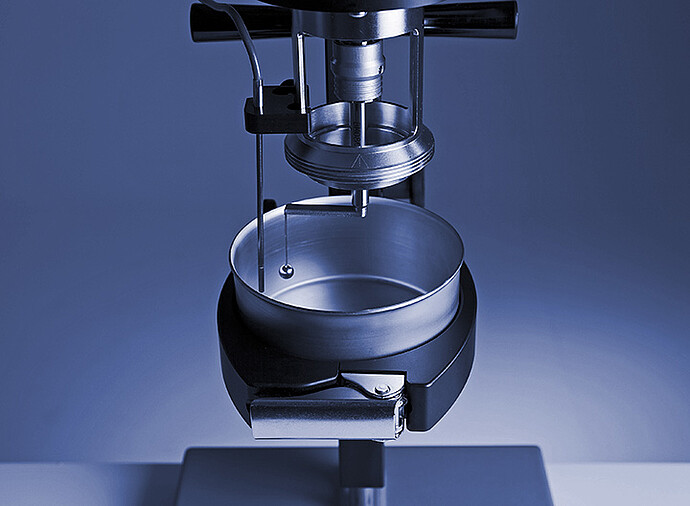

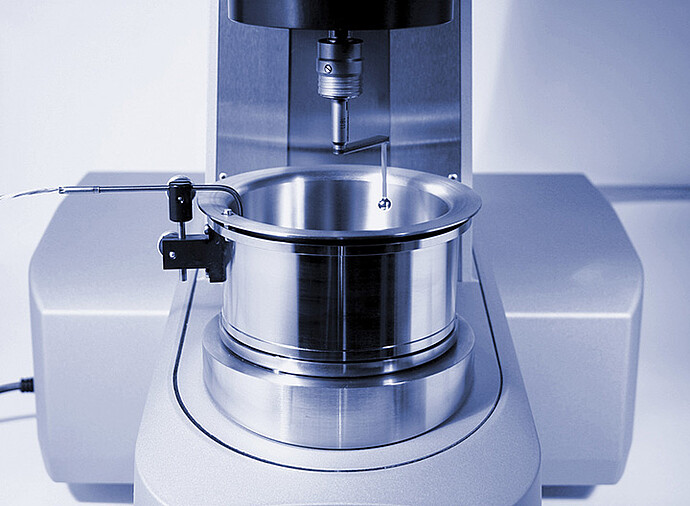

The Ball Measuring System (BMS) is designed to measure the flow properties of samples with large particles such as many food samples (typical particle size of such samples ranges between 1 mm and 10 mm). The measuring principle, developed by Müller-Thyrach*, is based on an eccentrically rotating ball (sphere) in a cup which avoids undesired slipping, gliding, and disturbing edges. The ball is available in various diameters to be able to measure a large range of sample viscosities. Accurate temperature control of the sample is possible in a range between -10 °C to 70 °C. Due to the outstanding motor control, a full flow and viscosity curve can be recorded in one single revolution of the measuring system. An integrated analysis of the produced flow field allows the online calculation of rheological parameters such as viscosity and shear rate.
Suitable rheometers: MCR series, RheolabQC
Building Material Cell: Designed for quality control and product development

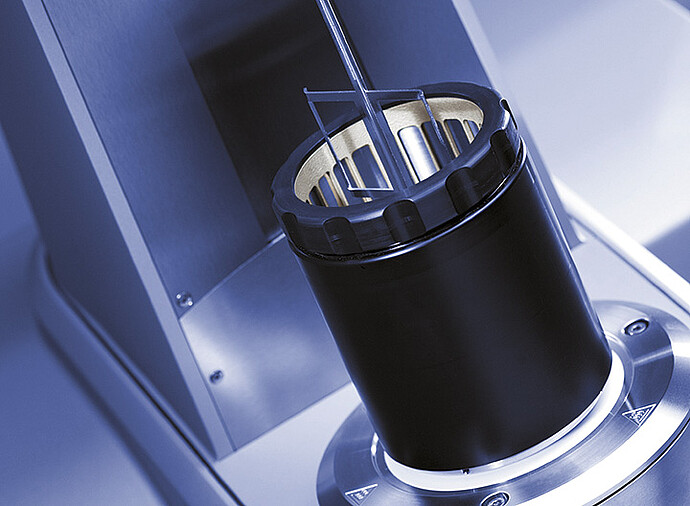

The Building Material Cell (BMC) enables measurements of suspensions and paste-like materials with a particle size up to 5 mm, such as building materials (cement, concrete, plaster), providing reliable information on processability, shelf life, and flowability. The exchangeable, robust, and easy-to-clean inset cage and special stirrer are resistant to abrasive materials, prevent sample slippage, and provide improved mix-up effects to avoid separation. All surfaces which are in contact with the sample are made of stainless steel. The needed sample volume is significantly lower compared to the Ball Measuring System and Peltier temperature control of the sample is possible in a range from 0 °C to 90 °C. For sophisticated rheological characterization all typical test modes are available, including dynamic measurements in oscillation.
Suitable rheometers: MCR series
Direct rheological characterization of real-life samples
A variety of real-life materials contain large particles by design. These particles can play an important role for the mouthfeel of food products, the general flow properties, setting behavior, and the influence of additives in building materials. Hence, these particles cannot be avoided during the production process and in the finished product.
Typical examples for such materials include:
- Building materials (e.g. cement, concrete, plaster)
- Food products (e.g. marmalade with fruit pieces, meat sauce, rice pudding)
- Other coarse suspensions (e.g. slurries and sludges)
Read more about rheological investigations of building materials
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Building Materials | Determining Rheological Properties with RheolabQC Application Reports
Measuring the flow curve of a meat sauce containing meat chunks Application Reports
Instruments - MCRxx2 Evolution series Brochures
Instruments - RheolabQC Brochures
*LÄUGER, J., MÜLLER, M., TYRACH, J. (1999). A new ball measuring system for large particle suspensions. Applied Rheology, July/August pp. 145–147.
