Surface area and pore size analyzers:
Nova
-
-
-
- +10
- 360°
Model:
- Maximize your budget with this multi-station BET surface area analyzer
- Boost throughput with two analysis, four degassing stations
- Conserve helium using short sample cells and NOVA mode
- Achieve 2 % reproducibility with ≥2 m2 measurement surface area
- Simplify the analysis process with built-in profiles
Looking for consumables & accessories for this product? Click here
Nova instruments set a new benchmark in surface area and pore size analysis.
Four degassing stations and up to four analysis stations let you degas samples while analyzing others. Analyze four
5-point BETs in approximately 20 minutes with 2 % reproducibility – those are quick, reliable results. Automated degassing means no operator intervention.
Simple. Precise. Fast. Nova.
Key features
Integrated sample preparation simplifies your process
Eliminate the clutter, cost, and complexity of external degassing devices with four integrated degassing stations and up to four analysis stations in one space-saving design. Prepare a range of samples with vacuum or flow degassing at temperatures up to 425 ºC. Degassing is software programable and linked with an individual sample ID, ensuring full traceability.
Speed up your surface area and pore size analysis with NOVA Mode
Utilize pre-calibrated sample cells – no need to measuring void volumes before every analysis – and accelerate your analysis speeds while maintaining a high level of measurement precision.

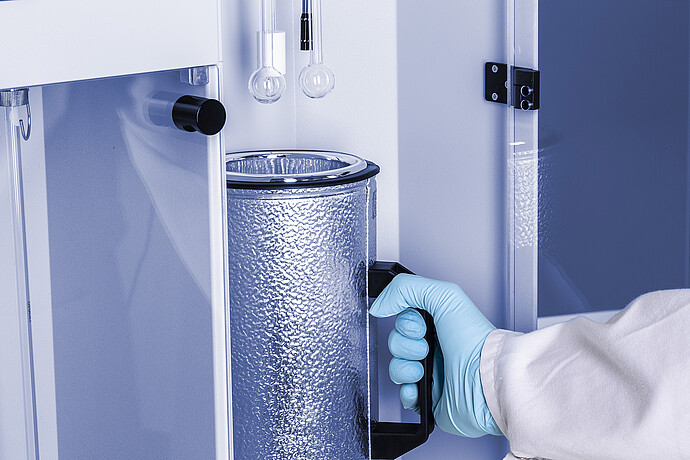

TruZone – active coolant level control
With TruZone, create and maintain a small cold zone on the sample cell and maximize the measurement sensitivity of your surface area and pore size analyzer. Increased sensitivity when measuring gas molecules that are adsorbed by the sample results in exceptional measurement performance. Nova instruments deliver better than 2 % reproducibility with as low as 2 m2 total surface area in the sample cell. This best-in-class performance lets you measure materials with specific surface areas as low as 0.01m2/g.
Suite of smart dosing algorithms for effortless method creation
Intelligent dosing algorithms, such as DoseWizard, VectorDose, and Initial Fill, simplify the creation of analysis profiles to accelerate analyses without sacrificing precision. In combination with the 20+ built-in analysis profiles for standardized methods like ASTM, ISO, USP, and DIN, our surface area and pore size analyzer delivers operational simplicity from start to finish.

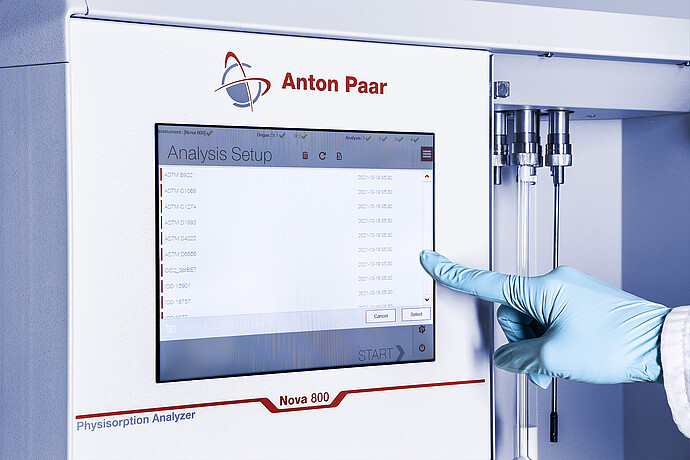

A surface area and pore size analyzer with smart software
Combine instrument control and data processing with Kaomi for Nova. Set up and perform analyses, and process, report, and store data easily. Control up to four Nova instruments from one PC.
21 CFR Part 11-compliant software
Enhance data integrity for the pharmaceutical industry with Kaomi for Nova 21 CFR Part 11 Software (user management, audit trail, customizable reporting, and electronic signature). Comply with the FDA’s 21 CFR Part 11 guidelines with our comprehensive pharma qualification and requalification package.
Technical specifications
| Nova 600 BET | Nova 800 BET | Nova 600 | Nova 800 | |
| Analysis specifications | ||||
| Measurement principle | Vacuum Volumetric | |||
| Analysis gases | N2 only | N2, Ar, CO2, and other non-corrosive gases | ||
| Analysis stations | 2 | 4 | 2 | 4 |
| Independent P0 station | Yes | |||
| Relative pressure range (P/P0 ) | 10-4 to 0.5 | 10-4 to 0.999 | ||
| Pressure measurement accuracy | 0.1 % (of full scale) * | |||
| Pressure resolution | Absolute : 1.2 x 10-4 Torr Relative : 1.5 x 10-7 p/p0 | |||
| Lower specific surface area limit | From 0.01 m2/g | |||
| Lower absolute surface area limit | From 0.5 m2 | |||
| Surface area reproducibility | 2 %** | |||
| Pore size range | N/A | 0.35 - 500 nm (Diameter) (0.35 - 1.1 nm with CO2) (1.1 - 500 nm with N2) | ||
| Minimum pore value | N/A | 1.2x10-8 cm3 | ||
| Truzone | Yes | |||
| Powerprotect | Yes | |||
| Dosewizard | Yes | |||
| Vectordose | Yes | |||
| Analysis dewar | Volume: 1 L Duration: Up to 7 Hours | Volume: 2 L Duration: Up to 40 Hours | ||
| Sample preparation | Integrated Degassing Stations : 4 Temperature Control: 2 Heating Zones, Ambient to 425 oC Available Methods: Flow & Vacuum, Programable Multi-Step Heating Profiles | |||
| Physical specifications | ||||
| Dimensions (DxWxH) | 44 cm x 63 cm x 84 cm | |||
| Weight | 63 kg | |||
| Operating environment | Temperature : 15 to 35 oC Humidity : 20 to 80 % relative, non-condensing | |||
| Wetted parts | Stainless steel, Viton elastomers | |||
| Gas | Ports: 5 (3 Analysis, 1 Helium, 1 Degas/Backfill) Purity: 99.999 % (He, N2) Input Pressure: 8 to 10 PSIG | |||
| Vacuum connection | Rotary Pump Exhaust Port, KF 16 | |||
| Vacuum requirements | Ultimate vacuum of 2.3 x 10-3 Torr | |||
| Electrical | Supply : AC 100~240 V AC , 50 / 60 Hz Consumption: 345 VA (Maximum) | |||
| Additional specifications | ||||
| Display | 10-inch Touchscreen | |||
| PC connection | Ethernet | |||
| Kaomi for Nova Software | Instrument Control: Up to 4 Instruments 6 Languages: English, French, German, Japanese, Chinese, Spanish | |||
| Kaomi for Nova 21 CFR Part 11 Software | Features: User management, audit trail, customizable reporting, and electronic signature to enhance data integrity for use in the pharmaceutical industry | |||
| Pharma Qualification Package | Yes | |||
| Pre-loaded analysis profiles | 20+ (ASTM, USP, DIN, ISO) | |||
| ROHS 3 compliant | Yes | |||
| CE certified | Yes | |||
* Includes precision, linearity, and hysteresis s of the complete pressure measurement system
** Performed with BAM P115 certified reference material
Standards
Open all
Close all
ASTM
B922-10
C1069-09
C1274-12
D3663-20
D4222-03
D4365
D4641
D6556-17
DIN
66134
ISO
9277
15901-2
18757
U.S. Pharmacopoeia (USP)
846 Method II – Specific Surface Area and European Pharmacopoeia 2.9.26 Method II
Anton Paar Certified Service
The Anton Paar quality in service and support:
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
Your choice:
Reset all filters X
-
Advantages of QSDFT for Pore Size Analysis of Carbons Application Reports
-
Analysis of Carbon Black Surface Area: NSA (BET) and STSA Application Reports
-
Defining Nova 600 | 800 Series Equilibration Parameters Application Reports
-
Field Guide to Battery Materials Characterization – Revised and Updated Application Reports
-
Graphene Characterization Application Reports
-
Lactose Monohydrate: Density and Surface Area - Nova and Ultrapyc Application Reports
-
Material Brief: Battery Cathode BET Surface Area – Nova 600 | 800 Series Application Reports
-
Material Brief: Graphite – BET Surface Area – Nova 600 | 800 Series Application Reports
-
Material Brief: Manganese Dioxide – BET Surface Area Nova 600 | 800 Series Application Reports
-
Material Brief: Quartz – BET Surface Area Nova 600 | 800 Series Application Reports
-
Measuring Low Surface Area Materials Using Nova 600 | 800 Series Instruments Application Reports
-
Merging Pore Size Distributions from CO2 and N2 Adsorption Measurements Application Reports
-
Mesoporous Catalyst Supports Application Reports
-
Micropore Area and Volume by the t-Plot Method Application Reports
-
Micropore Size Analysis of Porous Carbons Using CO2 Adsorption at 273 K Application Reports
-
Practical Methods to Prevent Sample Elutriation Application Reports
-
Remarkable Reproducibility - Nova 600 | 800 Series Application Reports
See more
Similar products
Consumables & Accessories
Consumables & Accessories
Not all items are purchasable online in specific countries.
To find out if you can purchase online from your location, check the online availability below.
Not all items are available for purchase online.
If you do not find the item you require, please contact your Anton Paar sales representative.
Online price only
| excl.incl. 0VAT
1L ALUMINUM SHORT DEWAR WITH HANDLE
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 243683
Product details
1L Dewar used for the Nova x00 BET series
2L Aluminum Dewar with handle
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193666
TYPE B SHORT CELL, 6 mm NO BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193890
Product details
Type B short cell with 6 mm stem and no bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 155.5 mm, 0.1 cm3 capacity.
TYPE B LONG CELL, 6 mm NO BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193651
Product details
Type B long cell with 6mm stem and no bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 292 mm, 0.2 cm3 capacity
TYPE C SHORT CELL, 6 mm SM BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193848
Product details
Type C short cell with 6 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 130 mm, bulb diameter 11 mm, 1 cm3 capacity.
TYPE B LONG CELL, 6 mm SM BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193637
Product details
Type B long cell with 6 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 292 mm, bulb diameter 16 mm, 1 cm3 capacity.
TYPE C LONG CELL, 6 mm SM BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193621
Product details
Type C long cell with 6 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 266 mm, bulb diameter 11 mm, 1 cm3 capacity.
TYPE B LONG CELL, 6 mm SM BULB, DIMPLE
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193876
Product details
Type B long cell with 6 mm stem, small bulb, and dimple. For use with non-elutriating kits. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 292 mm, bulb diameter 16 mm, 1 cm3 capacity.
LEVEL SENSOR, CLS TYPE, CRYOGEN, SHORT
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 195454
Product details
CLS type coolant level sensor for use with liquid argon (87 K) or liquid nitrogen (77 K). Appropriate for use with short cells.
TYPE B LONG CELL, 6 mm LG BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193638
Product details
Type B long cell with 6 mm stem and large bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 292 mm, bulb diameter 26 mm, 6 cm3 capacity.
CELL-SEAL, OPENER 9MM
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 197546
TYPE B LONG CELL, 9 mm NO BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193652
Product details
Type B long cell with 9 mm stem and no bulb. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, 0.5 cm3 capacity.
NON-ELUTRIATING PLUG, 12 mm
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193258
Product details
Replacement non-elutriating plug for use with 12 mm OD (10 mm ID) sample cells.
TYPE B LONG CELL, 9 mm SM BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193639
Product details
Type B long cell with 9 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, bulb diameter 15.9 mm, 1 cm3 capacity.
DEWAR CRYOGEN LEVEL INDICATOR
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193431
TYPE B LONG CELL, 9 mm SM BULB, DIMPLE
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193881
Product details
Type B long cell with 9 mm stem, small bulb, and dimple. For use with non-elutriating kits. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, bulb diameter 15.9 mm, 1 cm3 capacity.
Nova X00 DEWAR COVER, 2 L, FOAM
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 240852
Product details
Replacement foam cover for Nova X00 2 L analysis dewars
TYPE B LONG CELL, 9 mm LG BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193640
Product details
Type B long cell with 9 mm stem and large bulb. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, bulb diameter 26 mm, 6 cm3 capacity.
TYPE B SHORT CELL, 6 mm SM BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193875
Product details
Type B short cell with 6 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 155.5 mm, bulb diameter 16 mm, 1 cm3 capacity.
TYPE B LONG CELL, 9 mm LG BULB, DIMPLE
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193885
Product details
Type B long cell with 9 mm stem, large bulb, and dimple. For use with non-elutriating kits. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, bulb diameter 26 mm, 6 cm3 capacity.
O-RING, PFE 019, BLACK
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193835
TYPE B LONG CELL, 12 mm NO BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193653
Product details
Type B long cell with 12 mm stem and no bulb. Borosilicate Glass. Nominal Dimensions: 12 mm OD (10 mm ID), cell length 283 mm, 0.8 cm3 capacity.
TYPE B SHORT CELL, 6 mm LG BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193878
Product details
Type B short cell with 6 mm stem and large bulb. Borosilicate Glass. Nominal Dimensions: 6 mm OD (4 mm ID), cell length 155.5 mm, bulb diameter 26 mm, 6 cm3 capacity.
TYPE B LONG CELL, 12 mm SM BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193641
Product details
Type B long cell with 12 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 12 mm OD (10 mm ID), cell length 283 mm, bulb diameter 16 mm, 1 cm3 capacity.
TYPE B SHORT CELL, 9 mm SM BULB, DIMPLE
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 197836
Product details
Type B short cell with 9 mm stem, small bulb, and dimple. For use with non-elutriating kits. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 151 mm, bulb diameter 16 mm, 1 cm3 capacity.
TYPE B LONG CELL, 12 mm LG BULB
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193642
Product details
Type B long cell with 12 mm stem and large bulb. Borosilicate Glass. Nominal Dimensions: 12 mm OD (10 mm ID), cell length 283 mm, bulb diameter 26 mm, 6 cm3 capacity.
TYPE B SHORT CELL, 9 mm LG BULB, DIMPLE
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193884
Product details
Type B short cell with 9 mm stem, large bulb, and dimple. For use with non-elutriating kits. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 151 mm, bulb diameter 26 mm, 6 cm3 capacity.
LEVEL SENSOR, CLS TYPE, CRYOGEN, LONG
Compatible with:
Nova 600 | 800
Nova 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 197484
Product details
CLS type coolant level sensor for use with liquid argon (87 K) or liquid nitrogen (77 K). Appropriate for use with long cells.
TYPE B SHORT CELL, 12 mm SM BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 197838
Product details
Type B short cell with 12 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 12 mm OD (10 mm ID), cell length 146.5 mm, bulb diameter 16 mm, 1 cm3 capacity.
TYPE B LONG CELL, 9 mm LG BULB, QUARTZ
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 197837
Product details
Type B long cell with 9 mm stem and large bulb. Quartz for temperatures above 350 C. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, bulb diameter 26 mm, 6 cm3 capacity.
TYPE B LONG CELL, 9 mm NO BULB, QUARTZ
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193892
Product details
Type B long cell with 9 mm stem and no bulb. Quartz for temperatures above 350 C. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 287.5 mm, 0.5 cm3 capacity.
TYPE B ROD, FOR 6 mm LONG DIMPLE CELL
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193897
Product details
Non-flared filler rod (cell insert) for 6 mm, long, dimpled, type B cell For use with non-elutriating cell kits. Nominal Dimensions: 3 mm diameter, 243 mm long.
TYPE B ROD, FOR 9 mm SHORT DIMPLE SM
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 195474
Product details
Non-flared filler rod (cell insert) for 9 mm, short, small bulb dimpled, type B cells. For use with non-elutriating cell kit. Nominal Dimensions: 6 mm diameter, 112 mm long.
TYPE B ROD, FOR 9 mm SHORT DIMPLE LG
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193901
Product details
Non-flared filler rod (cell insert) for 9 mm, short, large bulb dimpled, type B cells. For use with non-elutriating cell kit. Nominal Dimensions: 6 mm diameter, 102 mm long.
TYPE B ROD, FOR 9 mm LONG DIMPLE SM CELL
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193899
Product details
Non-flared filler rod (cell insert) for 9mm, long, small bulb dimpled, type B cells. For use with non-elutriating cell kit. Nominal Dimensions: 6 mm diameter, 248 mm long.
P0 COLLAR, LARGE
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 244886
FUNNEL, 9 mm OPENING, 9 mm CELL
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193371
FUNNEL, 12 mm OPENING, 12 mm CELL
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193370
BALANCE CELL HOLDER 6, 9, 12 mm CELL
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 259357
ETHERNET CABLE, 25 FEET
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 196556
COMPRESSION NUT
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 197674
GAS SORPTION CALIBRATION CELL ASSEMBLY
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193250
O-RING, VITON 007, BROWN, PACK OF 2
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193806
SURFACE AREA REFERENCE MATERIAL, 2001
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193438
Product details
Surface area reference material catalog number 2001 for gas sorption instruments. Aluminum oxide powder with 14 m2/g nominal BET surface area using nitrogen.
SURFACE AREA REFERENCE MATERIAL, 2004
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193440
Product details
Surface area reference material catalog number 2004 for gas sorption instruments. Aluminum oxide powder with 220 m2/g nominal BET surface area using nitrogen.
SURFACE AREA REFERENCE MATERIAL, 2007
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193442
Product details
Surface area reference material catalog number 2007 for gas sorption instruments. Aluminum oxide powder with 2.5 m2/g nominal BET surface area using nitrogen.
SURFACE AREA REFERENCE MATERIAL, 2016
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193459
Product details
Surface area reference materials catalog number 2016 for gas sorption instruments. Set of seven carbon black samples with surface areas ranging from 9-145 m2/g (N2), used for STSA.
SURFACE AREA REFERENCE MATERIAL, 2019
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193447
Product details
Surface area reference material catalog number 2019 for gas sorption instruments. Aluminum oxide powder with 170 m2/g nominal BET surface area using nitrogen.
REGULATOR (CGA)-CO2, 30 PSIG
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193689
Product details
Two stage, gas regulator for carbon dioxide. North American CGA-320 fitting. Output pressure range 0 - 2 bar (0 - 30 psig). Includes isolation valve and 1/8 inch Swagelok output fitting.
TYPE B SHORT CELL, 9 mm SM BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193880
Product details
Type B short cell with 9 mm stem and small bulb. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 151 mm, bulb diameter 16 mm, 1 cm3 capacity.
TYPE B SHORT CELL, 9 mm LG BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193883
Product details
Type B short cell with 9 mm stem and large bulb. Borosilicate Glass. Nominal Dimensions: 9 mm OD (7 mm ID), cell length 151 mm, bulb diameter 26 mm, 6 cm3 capacity.
TYPE B SHORT CELL, 12 mm LG BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193887
Product details
Type B short cell with 12 mm stem and large bulb. Borosilicate Glass. Nominal Dimensions: 12 mm OD (10 mm ID), cell length 146.5 mm, bulb diameter 26 mm, 6 cm3 capacity.
TYPE B SHORT CELL, 12 mm LG BULB, QUARTZ
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 253578
Product details
Type B short cell with 12 mm stem and large bulb. Quartz for temperatures above 350 °C. Nominal dimensions: 12 mm OD (10 mm ID), cell length 146.5 mm, bulb diameter 26 mm, 6 cm3 capacity
TYPE B SHORT CELL, 6 mm LG BULB, QUARTZ
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 253566
Product details
Type B short cell with 6 mm stem and large bulb. Quartz for temperatures above 350 °C. Nominal dimensions: 6 mm OD (4 mm ID), cell length 155.5 mm, bulb diameter 26 mm, 6 cm3 capacity
TYPE B SHORT CELL, 9 mm LG BULB, QUARTZ
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 253567
Product details
Type B short cell with 9 mm stem and large bulb. Quartz for temperatures above 350 °C. Nominal dimensions: 9 mm OD (7 mm ID), cell length 151 mm, bulb diameter 26 mm, 6 cm3 capacity
TYPE B SHORT CELL, 12 mm NO BULB
Compatible with:
Nova 600 BET | 800 BET
Nova 600 BET | 800 BET
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193895
Product details
Type B short cell with 12 mm stem and no bulb. Borosilicate Glass. Nominal Dimensions: 12 mm OD (10 mm ID), cell length 146.5 mm, 0.8 cm3 capacity.
TYPE B ROD, FOR 12 mm SHORT CELL
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193905
Product details
Flared filler rod (cell insert) for 12 mm, short, type B cells. Nominal Dimensions: 9 mm diameter, 128.5 mm long.
CIRCULATING BATH, -20 C TO 150 C, 110 V
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 194980
Product details
Refrigerated/heating circulator capable of controlling temperatures from -20 C to 150 C. Temperature stability +/- 0.03 C with 0.1 C resolution. Reservoir volume 4 L max. Pumping flow rate of 15 L/min. Includes 2 barbed fittings for 8 and 12 mm ID tubing.
CIRCULATING BATH, -20 C TO 150 C, 220 V
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193308
Product details
Refrigerated/heating circulator capable of controlling temperatures from -20 C to 150 C. Temperature stability +/- 0.03 C with 0.1 C resolution. Reservoir volume 4 L max. Pumping flow rate of 15 L/min. Includes 2 barbed fittings for 8 and 12 mm ID tubing.
NOVA X00, RECIRCULATING DEWAR KIT
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 252992
Product details
Recirculating dewar kit for the Nova X00 series
DEWAR, STORAGE, 5 L
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193929
Product details
5 L cryogen dewar for the transport and storage of liquefied gasses.
DEWAR, STORAGE, 10 L
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193930
Product details
10 L cryogen dewar for the transport and storage of liquefied gasses.
DEWAR, STORAGE, 30 L
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193931
Product details
30 L cryogen dewar for the transport and storage of liquefied gasses.
DEWAR, STORAGE, 50 L
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 194984
Product details
50 L cryogen dewar for the transport and storage of liquefied gasses.
WITHDRAWAL DEVICE, 30 L STORAGE DEWAR
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193932
Product details
Withdrawal device (hose) for use with the 30 L Storage Dewar.
WITHDRAWAL DEVICE, 50 L STORAGE DEWAR
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 194991
Product details
Withdrawal device (hose) for use with the 50 L Storage Dewar.
ROLLER BASE, 30 L STORAGE DEWAR
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193933
Product details
Rolling trolley for the easy transport of the 30 L Storage Dewar.
ROLLER BASE, 50 L STORAGE DEWAR
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 194989
Product details
Rolling trolley for the easy transport of the 50 L Storage Dewar.
CONTROLLER/DATA MANAGEMENT MODULE (PC)
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193742
Product details
Dell Optiplex or equivalent, equipped with Windows 10 Professional or newer. Includes 20 inch flat screen monitor.
REGULATOR (CGA)-N2/HE/AR/KR, 25 PSIG
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193530
Product details
Two stage, gas regulator for inert gasses nitrogen, helium, argon, krypton, etc. North American CGA-580 fitting. Output pressure range 0 - 1.7 bar (0 - 25 psig). Includes isolation valve and 1/8 inch Swagelok output fitting.
REGULATOR (CGA)-H2/CO/CH4, 25 PSIG
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 193692
Product details
Two stage, gas regulator for reactive gasses hydrogen, carbon monoxide, methane, etc. North American CGA-350 fitting. Output pressure range 0 - 1.7 bar (0 - 25 psig). Includes isolation valve and 1/8" Swagelok output fitting.
Vacuum Pump, 100-120V
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 235911
Product details
Two stage, direct drive oil vacuum pump with ultimate vacuum to 3.0x10-3 mbar. Noise level 54 dB(A).
Vacuum Pump, 200-240V
Compatible with:
Nova 600 BET | 800 BET | 600 | 800
Nova 600 BET | 800 BET | 600 | 800
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 235912
Product details
Two stage, direct drive oil vacuum pump with ultimate vacuum to 3.0x10-3 mbar. Noise level 54 dB(A).
Trade in any gas adsorption analyzer, get a special deal
Learn more
