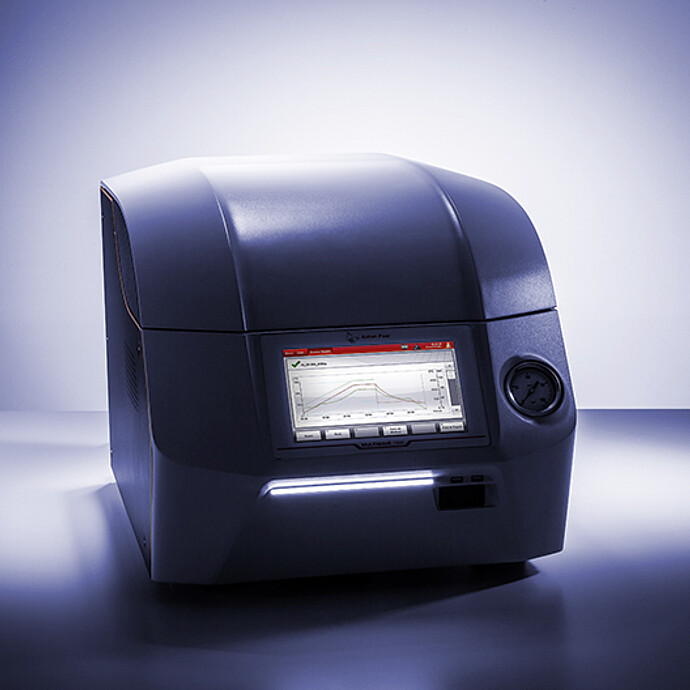

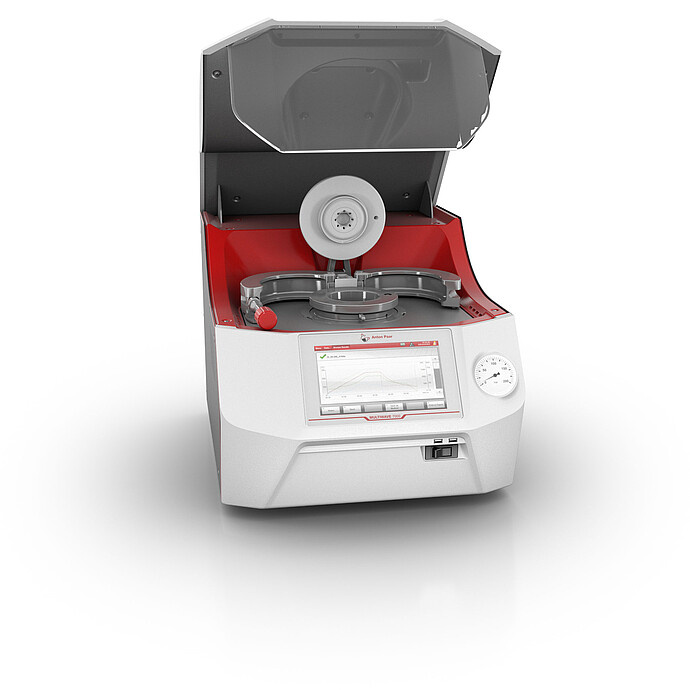

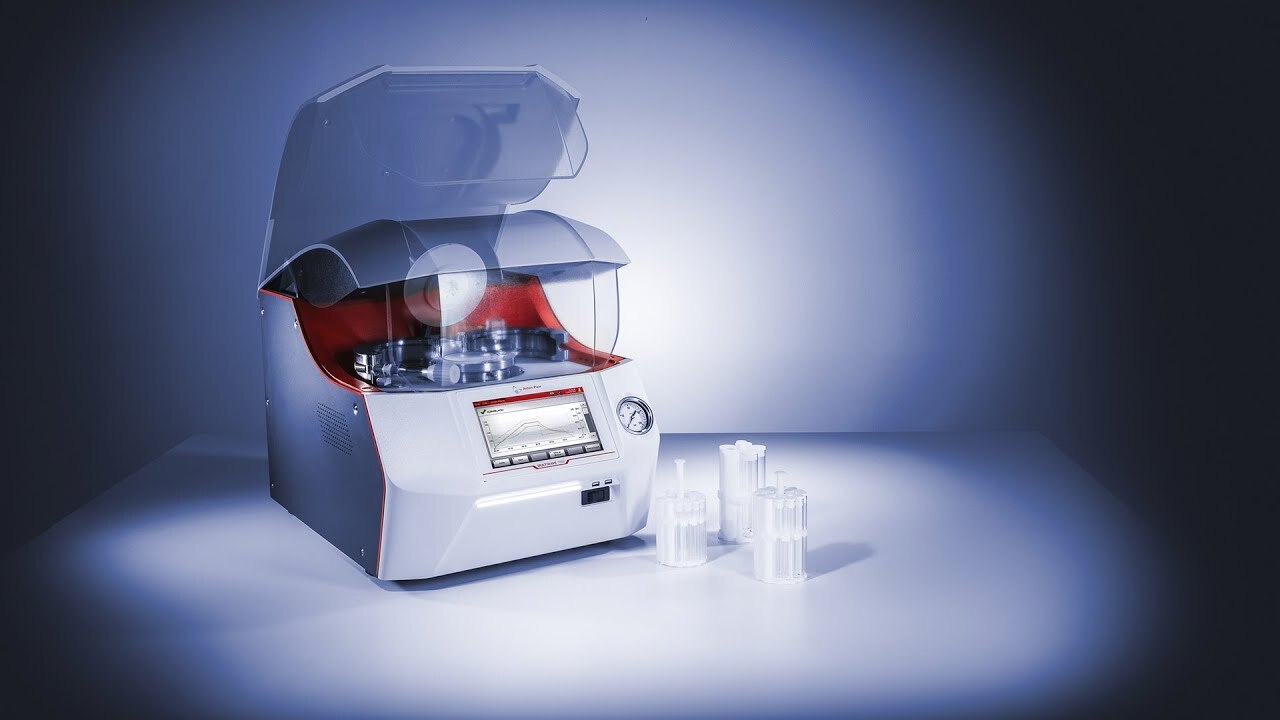

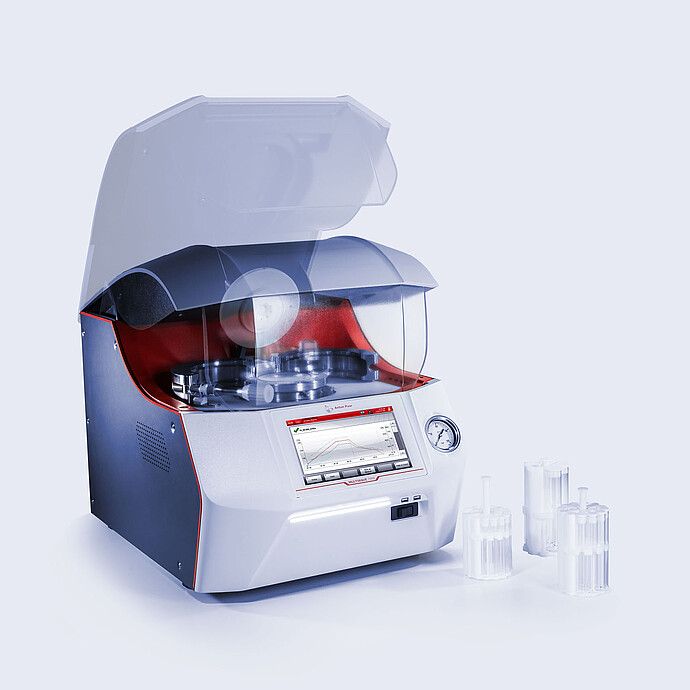

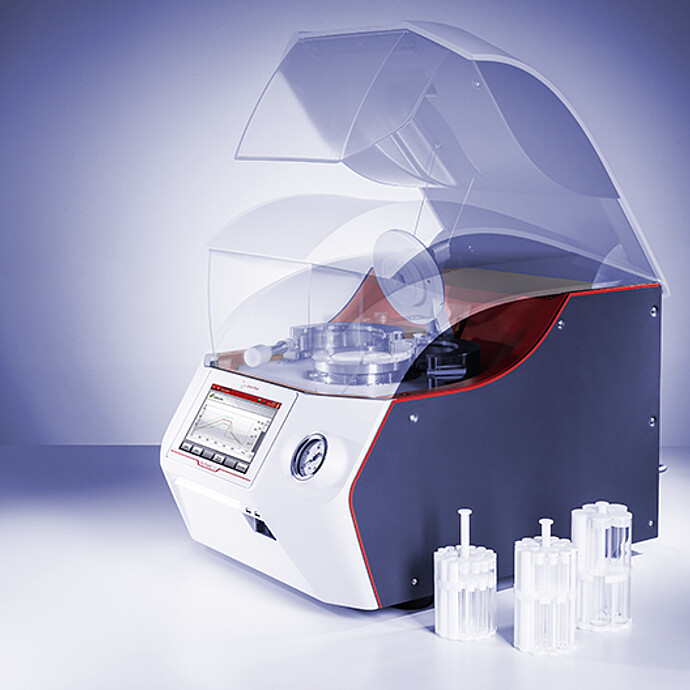

Microwave Digestion System:
Multiwave
-
-
-
- +14
- Easy handling (thanks to workflow support); convenient digestion
- Multiple backup safety systems
- All the benefits of a PDC system at a competitive price
- Smart system for digestion of most samples
- To be used with an external cooler for additional cost savings
When 50 years of experience in sample preparation meet advanced microwave technology, a high-performance microwave digestion system is the outcome. The Multiwave 7101/7301/7501 series delivers next-level performance, working at up to 300 °C and up to 199 bar. This ensures complete digestions of all kinds of samples, such as food, environmental, polymer, cosmetic, pharmaceutical, geological, chemical, and petrochemical samples, even in the same run. With a range of accessories, consumables, and racks of up to 41 positions, sample preparation has never been easier.
Key features
One microwave digestion system for all samples
With Multiwave 7101/7301/7501, digest all kinds of samples – such as food, environmental, polymer, cosmetic, pharmaceutical, geological, chemical, and petrochemical materials – in the same run with the same method. Low blank values and low residual carbon content facilitate elemental analysis. With high temperature and pressure specifications (300 °C and 199 bar), there’s unlimited digestion performance while the magnetron output is automatically adjusted for reactive samples. Powerful stirring aids the digestion of floating samples (optional).
Demanding samples, easy digestion
The PDC (Pressurized Digestion Cavity) revolutionizes your sample preparation workflow:
- Weigh your samples into vials
- Add digestion reagents and cover the vials with plug-on caps
- Load the vials into a rack and put it into the PTFE-TFM liner
- Safely transfer the closed liner (<1 kg) into the PDC
- Use software-guided, semi-automated opening and closing procedures
- Rely on automated pressurization, pressure release, and acid fume removal
- Pressure sealing of the vessels avoids cross-contamination
The microwave digestion systems come with ready-to-use methods and customized application support, so method development has never been easier.
A microwave digestion system fit for any analytical task

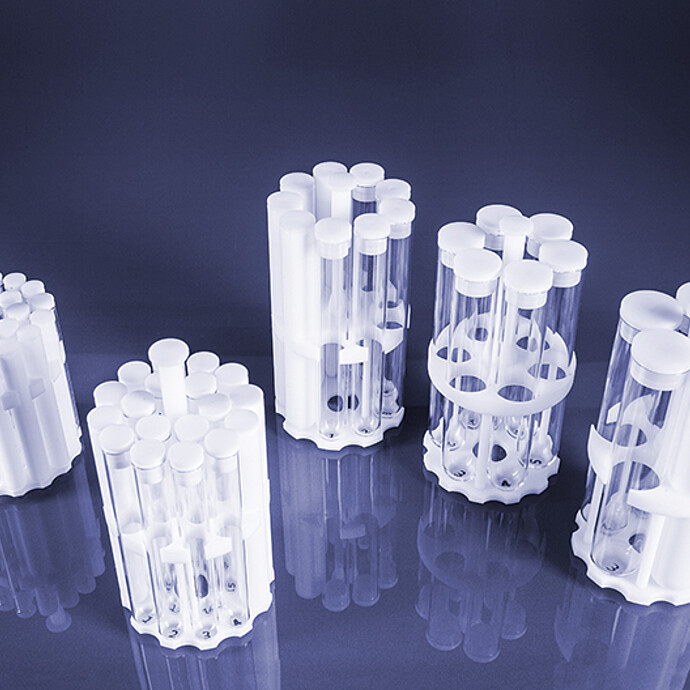

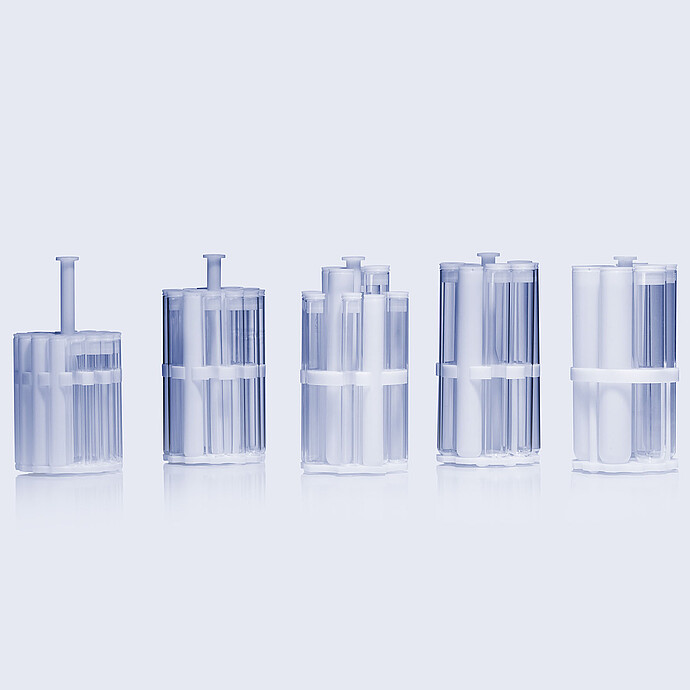

Multiwave 7101/7301/7501 microwave digestion systems can accommodate different PTFE-TFM racks so you can perform microwave digestion of up to 41 samples in one run. Up to 4g of sample can be digested in one position. A wide selection of vials is available: Use thin-walled quartz vials that have low blank values or disposable borosilicate vials for routine tasks. PTFE-TFM vials are for hydrofluoric acid applications. Use sealed quartz vessels, when working with very volatile analytes.
Space-saving and safe
With their compact footprint, these microwave digestion systems save you lab space. The integrated water coolers of Multiwave 7301 and 7501 save even more space. Multiple safety features, including redundant safety systems, fault-tolerant software, a window shield, and a drip cup, make Multiwave 7101/7301/7501 the safest microwave digestion system of its kind.
Communicative and compliant

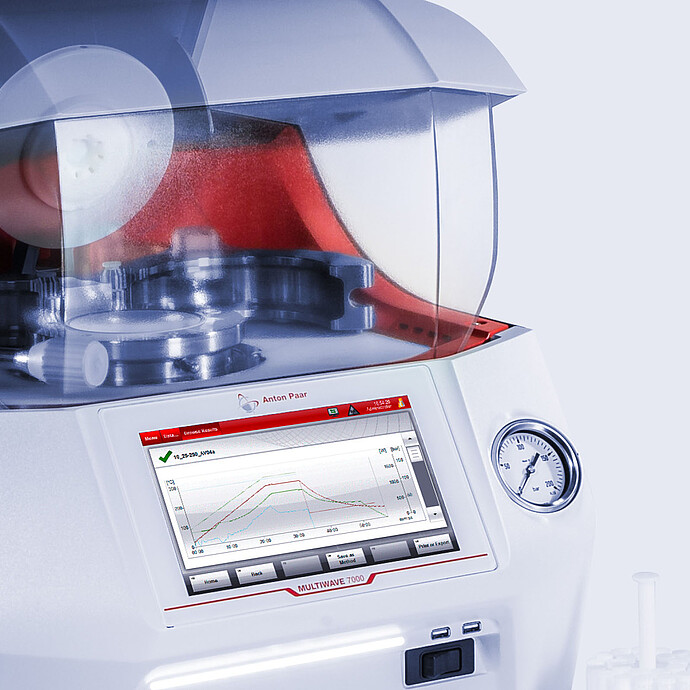

Stay connected and up-to-date with your digestions with several smart communication, control, and documentation features. Control the instruments via PC, smartphone, or tablet from a distance with VNC. Various standard methods are already available on the instruments, such as EPA, USP <232/233>, ICHQ3D, and European Pharmacopoeia 5.20. The software complies with 21 CFR part 11, and a comprehensive Pharma Qualification Documentation package is also available.
Multiwave 7501: For demanding samples
Do you perform aqua regia digestions or use HCl as a reagent on a regular basis? Then Multiwave 7501 is your solution. With upgraded parts and extended automated cleaning procedures, it has improved corrosion resistance, so you can digest even the most demanding samples.
Specifications
| SPECIFICATIONS | Multiwave 7101 | Multiwave 7301 | Multiwave 7501 |
| Maximum power delivered | 1,500 W | 1,700 W | 1,700 W |
| Installed power | 2,000 W | 2,000 W | 2,000 W |
| Cooler | External | Internal | Internal |
| Maximum temperature | 300 °C | 300 °C | 300 °C |
| Maximum pressure | 199 bar | 199 bar | 199 bar |
| HCl/Aqua regia digestions | x* | x* | x |
| Liner lift | x | x | x |
| Stirring option | x | x | |
| SmartLight | x | x | |
| VNC | x | x | |
| Pharma qualification package | x | x | x |
| Automatic cleaning routines | x | x | x |
| INSTRUMENT DIMENSIONS | |||
| Weight | 110.5 kg | 112 kg | 113.5 kg |
| W x D x H | 497 mm x 742 mm x 470 mm (19.5 in x 29.2 in x 18.5 in) | 615 mm x 760 mm x 470 mm (24.2 in x 29.9 in x 18.5 in) | |
*In sealed vessels.
Standards
ASTM
Chinese Pharmacopoeia (ChP)
EN
EN ISO
EPA
GB
HJ
ICH
European Pharmacopoeia (Ph. Eur.)
US Pharmacopoeia (USP)
GA
Standards
ASTM
EN
EN ISO
EPA
GA
GB
HJ
ICH
European Pharmacopoeia (Ph. Eur.)
US Pharmacopoeia (USP)
Chinese Pharmacopoeia (ChP)
Standards
ASTM
Chinese Pharmacopoeia (ChP)
EN
EN ISO
EPA
GB
HJ
ICH
European Pharmacopoeia (Ph. Eur.)
US Pharmacopoeia (USP)
GA
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
2-Step Acid Digestion of Graphite Materials for Analysis with ICP-OES and ICP-MS Application Reports
-
Digestion of Dust Filter Samples for Element Analysis with ICP Application Reports
-
Digestion of Environmental Samples for Element Analysis with ICP Application Reports
-
Digestion of Fish Samples for Mercury Analysis Application Reports
-
Digestion of Food and Other Organic Samples for Element Analysis with ICP Application Reports
-
Digestion of Petroleum Samples for Element Analysis with ICP Application Reports
-
Digestion of Platinum Group Metals using Multiwave 7501 for Analysis with ICP-MS Application Reports
-
Digestion of Polymer Samples for Element Analysis with ICP Application Reports
-
Digestion of Secondary Recovered Fuel Samples with PDC Application Reports
-
Digestion of Steels and Alloys for Analysis with ICP-OES Application Reports
-
Digestion of Various Cannabis Samples for Trace Metal Analysis with ICP-MS Application Reports
-
E-Book - A Practical Guide for Great Building Materials Application Reports
-
E-Book - Baby Food Safety Application Reports
Complementary products
If you do not find the item you require, please contact your Anton Paar sales representative.
SILICONE OIL 1 Bottle with 500g
Multiwave 7101 | 7301 | 7501
Silicone oil for impregnating the Pressurized Digestion Cavity of Multiwave 7000/7x01.
ANTISTATIC GUN
Multiwave 7101 | 7301 | 7501
VIAL STAND
Multiwave 7101 | 7301 | 7501
The vial stand is a lightweight polymer tool to aid weighing of samples. Applicable with Vial 8 mL Glass (179433), Vial 8 mL Quartz (179440), Vial 8 mL TFM (179046), Vial 18 mL Glass (179436), Vial 18 mL Quartz (179441), Vial 18 mL TFM (179047), Vessel Quartz 15 ml (70865), Vial 30 mL Glass (179437), Vial 30 mL Quartz (179442), Vial 30 mL TFM (179049), Vial 55 mL Glass (179438), Vial 55 mL Quartz (179443), Vessel Quartz 50 mL (70868), Vial 80 mL Glass (179439), Vial 80 mL Quartz (179444) and Vial 80 mL TFM (179049).
RACK 24
Multiwave 7101 | 7301 | 7501
Rack with 24 positions for Vial 8 mL Glass (179433), Vial 8 mL Quartz (179440) and Vial 8 mL TFM (179046).
RACK 18
Multiwave 7101 | 7301 | 7501
Rack with 18 positions for Vial 18 mL Glass (179436), Vial 18 mL Quartz (179441), Vial 18 mL TFM (179047) and for the Vessel 15 ml Quartz (70865).
RACK 9
Multiwave 7101 | 7301 | 7501
Rack with 9 positions for Vial 30 mL Glass (179437), Vial 30 mL Quartz (179442) and Vial 30 mL TFM (179048).
RACK 6
Multiwave 7101 | 7301 | 7501
Rack with 6 positions for Vial 55 mL Glass (179438), Vial 55 mL Quartz (179443), Vial 50 ml TFM and for the Vessel 50 mL Quartz (70868).
RACK 5
Multiwave 7101 | 7301 | 7501
Rack with 5 positions for Vial 80 mL Glass (179439), Vial 80 mL Quartz (179444) and Vial 80 mL TFM (179049).
LINER 1000 mL
Multiwave 7101 | 7301 | 7501
Liner 1000 mL made of PTFE-TFM for Multiwave 7000. The liner is used as container for the load solution and the racks. Additionally, it shields the Pressurized Digestion Cavity and temperature sensor from acids.
VIAL 50 mL TFM
Multiwave 7101 | 7301 | 7501
Vial made of PTFE-TFM for Rack 6 (183649) of Multiwave 7000/7x01. The vial has to be closed with PLUG-ON CAP 55 ML VIAL (179043).
VIAL 18 mL GLASS
Multiwave 7101 | 7301 | 7501
Disposable vial made of borosilicate glass for Rack 18 (183652) of Multiwave 7000. Package includes: 100 pcs.
VIAL 18 mL QUARTZ
Multiwave 7101 | 7301 | 7501
Vial made of quartz for Rack 18 (183652) of Multiwave 7000.
VIAL 18 mL TFM
Multiwave 7101 | 7301 | 7501
Vial made of PTFE-TFM for Rack 18 (183652) of Multiwave 7000/7x01.
PLUG-ON CAP 18 ML VIAL
Multiwave 7101 | 7301 | 7501
Plug-on cap for a tool-free and screw-free closing of Vial 18 mL Glass (179436), Vial 18 mL Quartz (179441) and Vial 18 mL TFM (179047).
VESSEL 15 ml QUARTZ
Multiwave 7101 | 7301 | 7501
Decomposition vessel made of quartz glass with a total volume of 15 mL. Graduated (2 / 5 / 10 ml); diameter of vessel neck: 16 mm. Closing technique: wrapping with PTFE film. Fits with quartz lid 16 mm (70866).
LID 16 mm QUARTZ
Multiwave 7101 | 7301 | 7501
Lid for 15 ml decomposition vessels (70865) made of quartz glass. Polished surface, diameter of 16 mm.
VIAL 80 mL GLASS
Multiwave 7101 | 7301 | 7501
Disposable vial made of borosilicate glass for Rack 5 (183651) of Multiwave 7000. Package includes: 50 pcs.
VIAL 80 mL QUARTZ
Multiwave 7101 | 7301 | 7501
Vial made of quartz for Rack 5 (183651) of Multiwave 7000. The vial is closed with Plug-on Cap 75-80 ml Vial (179044).
VIAL 75 mL TFM
Multiwave 7101 | 7301 | 7501
Vial made of PTFE-TFM for Rack 5 (183651) of Multiwave 7000. The vial is closed with Plug-on Cap 75-80 ml Vial (179044).
Plug-on Cap 75-80 ml Vial
Multiwave 7101 | 7301 | 7501
Plug-on cap for a tool-free and screw-free closing of Vial 80 mL Glass (179439), Vial 80 mL Quartz (179444) and Vial 80 mL TFM (179049).
VIAL 55 mL GLASS
Multiwave 7101 | 7301 | 7501
Disposable vial made of borosilicate glass for Rack 6 (183649) of Multiwave 7000. Package includes: 50 pcs.
VIAL 55 mL QUARTZ
Multiwave 7101 | 7301 | 7501
Vial made of quartz for Rack 6 (183649) of Multiwave 7000. The vial is closed with Plug-on Cap 50-55 ml Vial (179043).
PLUG-ON CAP 50-55 ML VIAL
Multiwave 7101 | 7301 | 7501
Plug-on cap for a tool-free and screw-free
VIAL 30 mL GLASS
Multiwave 7101 | 7301 | 7501
Disposable vial made of borosilicate glass for Rack 9 (183650) of Multiwave 7000. Package includes: 100 pcs.
VIAL 30 mL QUARTZ
Multiwave 7101 | 7301 | 7501
Vial made of quartz for Rack 9 (183650) of Multiwave 7000.
VIAL 30 mL TFM
Multiwave 7101 | 7301 | 7501
Vial made of PTFE-TFM for Rack 9 (183650) of Multiwave 7000.
PLUG-ON CAP 30 ML VIAL
Multiwave 7101 | 7301 | 7501
Plug-on cap for a tool-free and screw-free closing of Vial 30 mL Glass (179437), Vial 30 mL Quartz (179442) and Vial 30 mL TFM (179048).
VIAL 8 mL GLASS
Multiwave 7101 | 7301 | 7501
Disposable vial made of borosilicate glass for Rack 24 (183653) of Multiwave 7000. Package includes: 100 pcs.
VIAL 8 mL QUARTZ
Multiwave 7101 | 7301 | 7501
Vial made of quartz for Rack 24 (183653) of Multiwave 7000.
VIAL 8 mL TFM
Multiwave 7101 | 7301 | 7501
Vial made of PTFE-TFM for Rack 24 (183653) of Multiwave 7000.
PLUG-ON CAP 8 ML VIAL
Multiwave 7101 | 7301 | 7501
Plug-on cap for a tool-free and screw-free closing of Vial 8 mL Glass (179433), Vial 8 mL Quartz (179440) and Vial 8 mL TFM (179046).
PLUG-ON CAP 7 ML VIAL
Multiwave 7101 | 7301 | 7501
Plug-on cap for a tool-free and screw-free closing of Vial 7 mL Glass (234588).
STIR BAR PTFE SAMARIUM-COBALT D = 3, L = 8
Multiwave 7101 | 7301 | 7501
Stir bar made of samarium-cobalt PTFE encapsulated for stirring in Multiwave 7000/7301/7501. Applicable with: ,,Vial 18 mL Glas (179436), ,,Vial 18 mL Quarz (179441), ,,Vial 18 mL TFM (179047), ,,Vial 8 mL Glas (179433), ,,Vial 8 mL Quarz (179440) and ,,Vial 8 mL TFM (179046).
STIR BAR PTFE SAMARIUM-COBALT D=4.5 L=12
Multiwave 7101 | 7301 | 7501
Stir bar made of samarium-cobalt PTFE encapsulated for stirring iN Multiwave 7000. Applicable with: Vessel Quartz 15 ml (70865), ial 30 mL Glass (179437), Vial 30 mL Quartz (179442), Vial 30 mL TFM (179049), Vial 55 mL Glass (179438), Vial 55 mL Quartz (179443), Vessel Quartz 50 mL (70868), Vial 50 mL TFM (221931), Vial 80 mL Glass (179439), Vial 80 mL Quartz (179444) and Vial 75 mL TFM (179049).
O-RING LINER
Multiwave 7101 | 7301 | 7501
O-Ring which is placed on the Liner 1000mL to seal the Pressurized Digestion Cavity of Multiwave 7000.
O-RING PRESSURE LINE
Multiwave 7101 | 7301 | 7501
O-Ring which is sealing the pressure line of the Pressurized Digestion Cavity of Multiwave 7000
ANTIFREEZE FOR WATER COOLING SYSTEMS AND THERMOSTATS
Multiwave 7101 | 7301 | 7501
- Antifreeze and corrosion protection
- Suitable for aluminum
- Silicate free
- Free of amines, nitrites and phosphates
Recommended for the cooling system of Multiwave 7000/7x01. 1 btl = 1.5 l
