Kinematic viscometer:
SVM

Model:

Temperature range from +15 °C to +100 °C
The most economic automated kinematic viscometer
Compliant to ASTM D396, D975, D3699, D6158, D6823, D7467, and more
Easy handling without glass breakage
Fast solution even for sticky samples such as used oil

Widest temperature range from -60 °C to +135 °C
All samples, from jet fuel to wax, without changing the capillary
Compliant to ISO 23581, EN 16896, ASTM D396, D975, D7666, and more
Down to -20 °C without counter-cooling
Fast heating and cooling rates of up to 20 °C/min

Temperature range from -60 °C to +100 °C
Kinematic viscosity, density, cloud and freeze point from one test
Viscosity borderline temperature (temperature at 12 cSt)
ASTM D1655, D2880, D7566, D975, D7467, JIG AFQRJOS, results equivalent to ASTM D2386 and ASTM D2500

Temperature range from +15 °C to +100 °C
Fastest viscosity index acc. to ASTM D2270 from min. 2.5 mL sample
Simultaneous viscosity and density results at any 2 temperatures
From base oil, additives, blends, and used oil to wax and grease without changing the capillary

Online price only | excl.incl. 0VAT

Price
upon request

Purchase information

Buy Anton Paar instruments online

Part number:

Check online availability Get a quote Buy this product online

Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months

Exchange all your capillaries for one single unit and save enormous amounts of time and money: the SVM viscometers provide the highest flexibility by covering the entire viscosity, density, and temperature range with a single measurement cell and deliver results in seconds. With SVM you can certify jet fuel, diesel, biodiesel blends, and marine fuels; classify crude oils and determine the VI of your lubricant. Whatever challenge you face, the SVM viscometer is the best solution on the market.

Key features

Don’t worry – be compliant

The SVM smart viscometers comply with a multitude of international standards and product specifications. With the integrated bias corrections delivered by ASTM, you can even report in D445 results while enjoying all the benefits of measuring with an SVM.

See standards >>

The highest flexibility for every application

Tired of looking for the suitable capillary which fits your sample’s viscosity? With SVM you do not need multiple baths and capillaries to measure different samples. SVM covers the entire viscosity, density, and temperature range with one measurement cell, enabling you to measure a wide variety of samples, from jet fuel to wax, without changing the cell. A single SVM viscometer is all you need for kinematic viscosity and viscosity index measurements in the range from 0.2 mm²/s to 30,000 mm²/s.

One instrument – many parameters

Besides viscosity, you can determine multiple other parameters with SVM within the same run and reduce your workload significantly:

Kinematic viscosity (ASTM D7042, EN 16896, DIN 51659-2)
Density (EN ISO 12185, ASTM D4052, IP 365)
Viscosity index (VI) (ASTM D2270)
Dynamic viscosity (ASTM D7042)
API grades (ISO 91, API 2540, ASTM D1250, IP 200)

and more.

The highest economic efficiency

SVM helps you cut operational costs. The patented measuring cell requires only a small amount of solvent for cleaning (min. 1.5 mL), reducing solvent and disposal costs to a minimum. No external cooling is required for measurements down to -20 °C, saving valuable lab space and energy. While delivering superior performance, SVM consumes much less energy than a typical capillary bath, regardless of whether you measure at -20 °C or at +135 °C. Using a sample changer gives you time to perform other important tasks while filling, measuring, and cleaning are taken care of. As a result of these savings, SVM is undoubtedly the most economic and sustainable kinematic viscometer available on the market with the best ROI.

Great results with little effort

Installation, operation, and maintenance of SVM are incredibly easy. It is a stand-alone instrument and all calculations are performed automatically by the integrated PC. The factory-adjusted instrument is ready to use immediately out of the box. Thanks to its patented motor concept, access to the measuring cell is tool-free, enabling convenient cleaning after measuring heavily contaminated samples, such as used oil. The optional magnetic particle trap removes magnetic particles from the sample, ensuring good viscosity measurements. The fully customizable user interface shows you exactly the parameters you need.

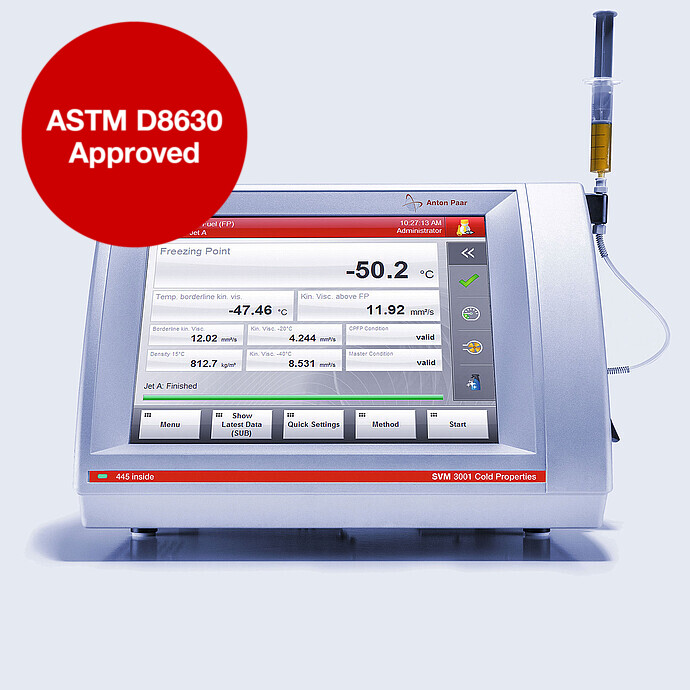

Your 4-in-1 solution for low-temperature applications

In addition to kinematic viscosity and density, SVM 3001 Cold Properties determines the cloud and freeze points from the same sample. This significantly reduces your workload as SVM delivers the results which would otherwise require multiple tests on different instruments. SVM 3001 Cold Properties is the perfect choice for measuring diesel, biodiesel, and jet fuel and is ideal for both QC and R&D.

Technical specifications

	SVM 2001	SVM 3001	SVM 3001 Cold Properties	SVM 4001
Patents granted	AT5160588 (B1), US10036695 (B2), CN105424556, AT516302 (B1), CN105628550
Temperature range	+15 °C to +100 °C	-60 °C to +135 °C	-60 °C to +100 °C	+15 °C to +100°C
Viscosity range	0.2 mm²/s to 30 000 mm²/s*
Density range	0.6 g/cm³ to 3 g/cm³
Viscosity repeatability**	0.1 %
Viscosity reproducibility**	0.35 %
Density repeatability**	0.0002 g/cm³	0.00005 g/cm³	0.00005 g/cm³	0.00005 g/cm³
Density reproducibility**	0.0005 g/cm³	0.0001 g/cm³	0.0001 g/cm³	0.0001 g/cm³
Cloud/freeze point repeatability**			<0.5 °C / <0.5 °C
Cloud/freeze point reproducibility**			<2.5 °C / <1.3 °C
Temperature repeatability	0.005 °C (0.009 °F)
Temperature reproducibility	0.03 °C (0.054 °F) from 15 °C to 100 °C	0.03 °C (0.054 °F) from 15 °C to 100 °C 0.05 °C (0.09 °F) outside this range	0.03 °C (0.054 °F) from 15 °C to 100 °C 0.05 °C (0.09 °F) outside this range	0.03 °C (0.054 °F) from 15 °C to 100 °C
Test methods	ASTM D7042, ISO 23581, EN 16896	ASTM D7042, ISO 23581, EN 16896 ASTM D4052, ISO 12185	ASTM D7042, ISO 23581, EN 16896 ASTM D4052, ISO 12185 ASTM D2386 equivalent or better, ASTM D2500 equivalent or better	ASTM D7042, ISO 23581, EN 16896 ASTM D4052, ISO 12185
Supported precision classes	Ultrafast, Fast and Precise	Ultrafast, Fast, Precise and Ultraprecise	Ultrafast, Fast, Precise and Ultraprecise	Ultrafast, Fast, Precise and Ultraprecise
Sample volume min./typical	1.5 mL / 5 mL	1.5 mL / 5 mL	1.5 mL / 5 mL	2.5 mL / 6 mL
Solvent volume min./typical	1.5 mL / 6 mL	1.5 mL / 6 mL	1.5 mL / 6 mL	2.5 mL / 10 mL
Maximum sample throughput	30 samples per hour	30 samples per hour	30 samples per hour	24 samples per hour
Peltier temperature control	Designed for constant temperature	Designed for fast heating/cooling over a wide range	Designed for fast heating/cooling over a wide range	Designed for simultaneous measurement at any two different temperatures within the range
Data memory	1000 measurement results
HID (Human Interface Device)	Touchscreen, optional keyboard, mouse, and 2D bar code reader
Interfaces	4 x USB (2.0 full speed), 1 x Ethernet (100 Mbit), 1 X CAN bus, 1 x RS-232; 1 x VGA
Power supply	AC 100 V to 240 V, 50 Hz to 60 Hz, 250 VA max.
Ambient conditions	15 °C to 35 °C (59 °F to 95 °F), max. 80 % r.h. non-condensing
Net weight/shipping weight	15.9 kg/20.5 kg	17.6 kg/22.2 kg	18.0 kg/22.6 kg	17.8 kg/22.4 kg
Dimensions (W x D x H)	33 cm x 51 cm x 23.1 cm (13 in x 20 in x 9.1 in)
Compliance	CE mark; EMC directive EN 61326-1; LV directive EN 61010-1; RoHS
Included in standard delivery	Kinematic viscosity Dynamic viscosity Density	Automatic VI determination API calculations Temperature scan Time scan FillingCheck™ Kinematic viscosity Dynamic viscosity Density	Cloud point Freezing point Temperature @ 12 mm²/s (Kinematic Viscosity Borderline Temperature: KVBT) Standard above freeze point (SFP) Automatic VI determination API calculations Temperature scan Time scan FillingCheck™ Kinematic viscosity Dynamic viscosity Density	Simultaneous kinematic viscosity and density at any two different temperatures in the range Automatic VI determination API calculations Temperature scan Time scan FillingCheck™ Kinematic viscosity Dynamic viscosity Density
Options	Automatic VI determination Sample changer, heated Sample changer, non-heated	Modularity with Abbemat refractometers Chemical upgrade kit Sample changer, heated Sample changer, non-heated Counter-cooling	Sample changer, non-heated Counter-cooling	Modularity with Abbemat refractometers Sample changer, heated Sample changer, non-heated

*Viscosity range with chemical upgrade kit from 1 to 10 000 mPa·s

**Attested at the points of the works adjustment or at calibration correction points, not including the uncertainty of the standards.

Valid for ideal measuring and sample conditions within the works adjustment range.

SVM (EM13411996), Stabinger Viscometer (WO1232458, EM12708863), FillingCheck (EM006834725)

Standards

Open all

Close all

ABNT

NBR 10441 2001, 3001, 3001 Cold Properties, 4001

NBR 14358 2001, 3001, 3001 Cold Properties, 4001

ANP

Nº 804 2001, 3001, 4001

API

2540 3001, 4001

ASTM

D341 2001, 3001, 4001

D396 2001, 3001, 4001

D975 2001, 3001, 4001

D1250 3001, 4001

D1655 3001

D2161 2001, 3001, 4001

D2270 3001, 4001

D2501 3001, 4001

D2502 2001, 3001, 4001

D2603 2001, 3001, 3001 Cold Properties, 4001

D2880 2001, 3001, 4001

D3238 3001

D3238 4001

D3699 2001, 3001, 3001 Cold Properties, 4001

D4052 3001, 4001

D4054 3001

D4174 2001, 3001, 4001

D4378 2001, 3001, 3001 Cold Properties, 4001

D5002 3001, 4001

D5275 2001, 3001, 3001 Cold Properties, 4001

D5372 2001, 3001, 4001

D5621 2001, 3001, 3001 Cold Properties, 4001

D6074 2001, 3001, 4001

D6080 2001, 3001, 3001 Cold Properties, 4001

D6158 2001, 3001, 3001 Cold Properties, 4001

D6278 2001, 3001, 3001 Cold Properties, 4001

D6287 2001, 3001, 3001 Cold Properties, 4001

D6448 2001, 3001, 4001

D6666 2001, 3001, 3001 Cold Properties, 4001

D6710 2001, 3001, 4001

D6751 2001, 3001, 3001 Cold Properties, 4001

D6823 2001, 3001, 4001

D7042 2001, 3001, 4001

D7109 2001, 3001, 3001 Cold Properties, 4001

D7152 2001, 3001, 4001

D7155 2001, 3001, 4001

D7223 3001

D7467 2001, 3001, 3001 Cold Properties, 4001

D7566 3001

D7665 2001, 3001, 4001

D7666 2001, 3001, 4001

D7720 2001, 3001, 4001

D7752 2001, 3001, 4001

D7826 3001

D7863 2001, 3001, 4001

D7973 2001, 3001, 3001 Cold Properties, 4001

D8029 2001, 3001, 3001 Cold Properties, 4001

D8046 2001, 3001, 4001

D8128 2001, 3001, 4001

D8147 3001

D8181 2001, 3001, 4001

D8185 2001, 3001, 4001

F3208 2001, 3001, 4001

F3337 2001, 3001, 4001

CPTC

SH/T 0604-2000 eqv. ISO 12185 3001, 4001

DEFSTAN

91-91 3001

DIN

51659-2 2001, 3001, 4001

EN

16766 2001, 3001, 4001

16896 2001, 3001, 4001

141214-2019 2001, 3001, 4001

GB

T 29617 2001, 3001, 4001

GJB

9131 2001, 3001, 4001

GOST

33 2001, 3001, 3001 Cold Properties, 4001

IP

200 3001, 4001

365 3001, 4001

626 2001, 3001, 4001

IS

1460 2001, 3001, 4001

1571 3001

ISO

91 3001, 4001

2909 3001, 4001

12185 3001, 4001

23581 2001, 3001, 3001 Cold Properties, 4001

JIG

AFQRJOS 3001

MIL

DTL-83133J 3001

PRF-17331L 2001, 3001, 4001

OENORM

C1109 2001, 3001, 4001

RANP

30 2001, 3001, 3001 Cold Properties, 4001

669 2001, 3001, 3001 Cold Properties, 4001

778 2001, 3001, 3001 Cold Properties, 4001

804 2001, 3001, 3001 Cold Properties, 4001

SAE

J300 2001, 3001, 3001 Cold Properties, 4001

SH

T 0870 2001, 3001, 4001

SN

T 3518 2001, 3001, 4001
