FTIR Spectrometer:
Lyza 7000
-
-
-
- +11
- Quick molecular analysis with FTIR spectroscopy
- Modular cell concept for hundreds of samples types
- Identification of any sample with industry-standard and customer-specific libraries
- Advanced software features, including guided workflows, constant self-monitoring of instrument, and energy-saving options
- Quick molecular analysis with FTIR spectroscopy
- Modular cell concept for hundreds of samples types
- Identification of any sample with industry-standard and customer-specific libraries
- Advanced software features, including guided workflows, constant self-monitoring of instrument, and energy-saving options

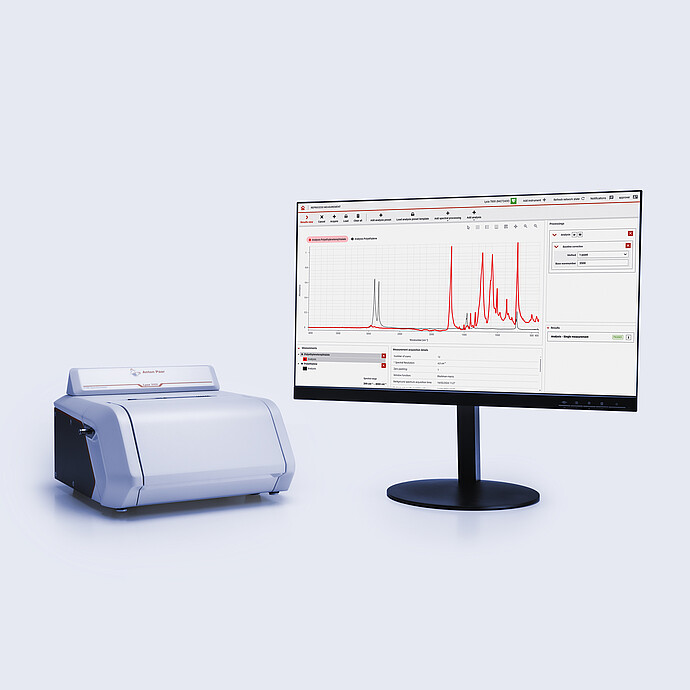

Measure hundreds of sample types with one compact instrument: Lyza 7000. Solid, liquid, or gaseous, Lyza 7000 measures them all. It’s the most reliable, user-friendly FTIR spectrometer on the market and sets new industry standards along the way. The software, combining measurement, processing, and spectral analysis in an automated method with a customizable measurement report, feels like it was made just for you. It may be just one instrument, but Lyza 7000 opens up a whole world of samples.
Key features
The most reliable FTIR spectrometer on the market
- Consistent, accurate results underpinned by rigorous testing and validation
- Constant internal monitoring of your system to ensure potential issues are identified and resolved quickly
- Smart status LED light for measuring progress updates at a glance
- An FTIR spectrometer designed by pioneers in optical analysis and quality control.
Tailored solutions for specific industry demands
- Application packages tailored to your specific needs

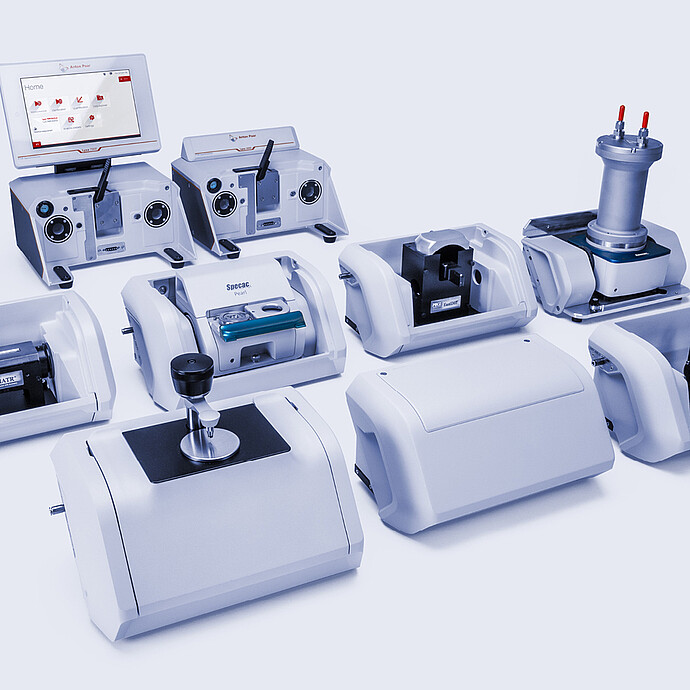

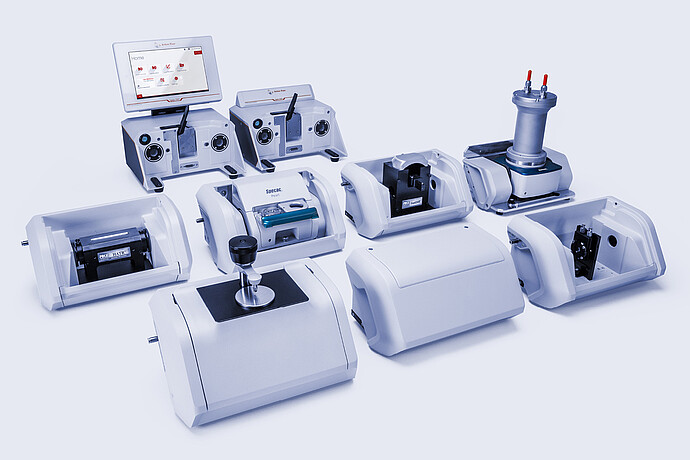

- A modular cell concept for any type of sample: solid, liquid, or gaseous
- Compatibility with a variety of ATR and transmission cells (hundreds of applications)
- Meets specific analytical needs without having to replace the entire system
- Easy measuring cell exchange automatically recognized by the instrument
- Guided workflows and the right accessories make it easy to get started and intuitively perform measurements

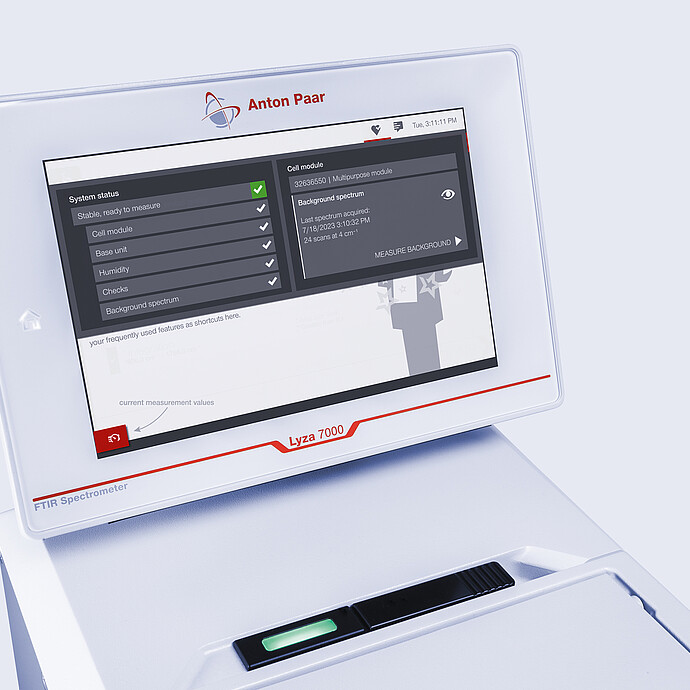

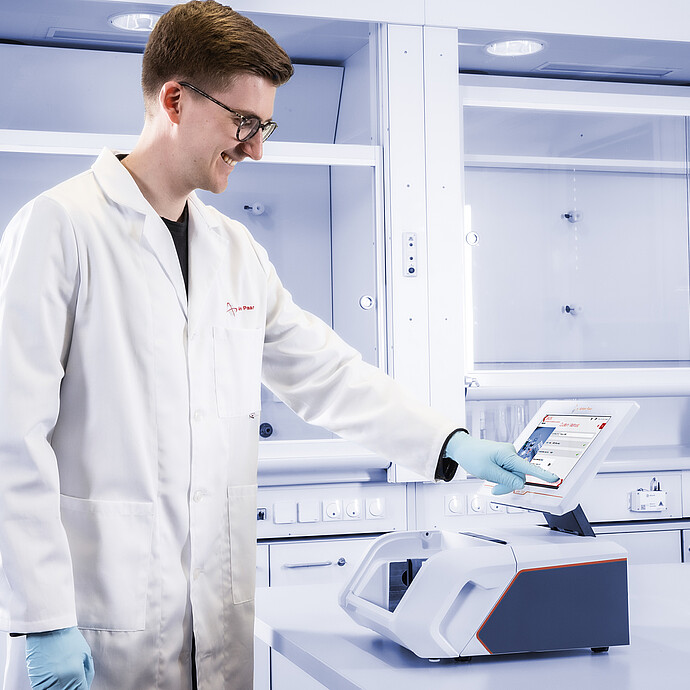

- Adjustable touchscreen for a truly intuitive experience
The power of spectral libraries
- Identify and verify any sample or unknown substance directly on your FTIR spectrometer
- Easily create your own specialized library customized to your requirements
- Choose from a variety of industry-standard libraries like S.T.Japan, Aldrich, and IChem (available in the embedded software)
- Get started with the out-of-the-box Anton Paar factory library
- Quickly perform incoming goods control, quality control of your batch, or essential R&D tasks
Time, space, and cost optimization to boost your efficiency
- Automatic calibration with the internal polystyrene reference in just a few minutes
- Streamline your data management with AP Connect
- Small footprint and touchscreen for minimum bench space in your lab
- “Eco Mode” reduces energy consumption and prolongs core component lifetime
- Cost efficiency with zero compromise on quality or performance
Efficiency meets compliance with the Anton Paar Spectroscopy Suite
- Upgrade your Lyza 7000 with the AP Spectroscopy Suite Software for full compliance in regulated environments
- Meets critical standards, including 21 CFR Part 11 and EU GMP Vol. 4 Annex 11, for seamless regulatory adherence.
- Ensures flawless data integrity for lifetime compliance in regulated environments.
- Designed to prevent errors upfront, minimizing the need for corrective actions based on audit trails.
- Streamlines your daily measurements by removing complex spectroscopy tasks, utilizing predefined workflows and settings
- All data sets are securely stored in the SQL database, ensuring no deletions
- Facilitates accurate submission, review, and approval of data for streamlined compliance.
Technical specifications
| Detector | Pyroelectric DLaTGS detector |
| Optics | Hermetically sealed aluminum casing with gold-coated mirrors, KBr windows and beamsplitter |
| Signal-to-noise ratio | 55,000:1 (1 min, 8 cm-1, 1,900 cm-1 to 2,250 cm-1) |
| Spectral range | 350 cm-1 - 7,500 cm-1 |
| Spectral resolution | 1.4 cm-1 - 16 cm-1 |
| Wavenumber accuracy | <0.05 cm-1 @ 900 cm-1 - 3,000 cm-1 |
| Measurement time | <30 seconds |
| Laser type | Single mode Vertical Cavity Surface Emitting Laser (VCSEL) |
| Laser class | Class 1, enclosed hermetically |
| IR Source | SiC composite |
| Interferometer | Permanently aligned cube corner interferometer |
| Desiccant | Molecular sieve with color indicator, user-replaceable |
| Operating temperature range | 10 °C - 30 °C (non-condensing) |
| Instrument dimensions | 365 mm x 315 mm x 382 mm (D x W x H) |
| Cell compartment width | 152 mm |
| Weight | 12.8 kg |
| Power supply | DC 24V, 40 W |
| Communication interfaces | 4 x USB 2.0 / CAN / Ethernet / Wi-Fi* |
| Data export formats | .csv, .pdf, .spc |
| Data management | AP Connect |
| Display | 10.1”, PCAP-Touchscreen, multi-touch |
| Controls | Touchscreen, optional keyboard, mouse, and barcode reader |
| Internal storage | 32 GB |
| Spectral libraries | Factory library, user-built, third-party options |
| Security | User roles with customizable permissions, user password logins |
| Regulatory Compliance | 21 CFR Part 11 including installation, operation qualification and performance qualification (DQ /IQ/OQ/PQ)** |
*via external Wi-Fi stick
**only available in combination with Anton Paar Spectrocopy Suite
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
Analysis of biodiesel/FAME in diesel blends according to DIN EN 14078 Application Reports
-
Enhancing education of FTIR spectroscopy: Lyza 7000 in teaching Application Reports
-
Identification of O-ring seals with Lyza 7000 FTIR spectrometer Application Reports
-
Monitoring of oxidation in lubrication oil Application Reports
-
Monitoring of soot in lubrication oil by direct trending Application Reports
-
Monitoring of sulfate by-products in lubrication oil by direct trending Application Reports
-
QC of polymers using Lyza 7000 FTIR spectrometer Application Reports
-
Quick identification of epoxy glue by S.T. Japan library Application Reports
-
Lyza 7000 Brochure Brochures
-
Lyza 7000 Used Oil Package - Data Sheet Brochures
-
Spectroscopy Suite | Brochure Brochures
