SAXS/WAXS System:
SAXSpoint 500

2D SAXS: Pure brilliance

Handle your samples with the help of the best-in-class beam delivery system. Thanks to a brilliant X-ray beam with the highest spectral purity (>99.9 % Cu K_α) and scatterless beam collimation, users are guaranteed synchrotron-like 1D and 2D SAXS data quality (including SAXS/WAXS/GISAXS) with minimum experimental effort and within the shortest exposure times. This SAXS system, with its brilliant setup and industry-leading optical system, enables the resolution of structures up to 300 nm, at the most compact system size (2.7 m x 0.9 m).

2D SAXS: Pure brilliance. Best price.

Customize your system to tackle various samples with a wide range of stages tailored specifically for SAXS applications. Analyze almost any nanostructured material, and switch between different sample stages seamlessly with automatically aligned components. The range of stages includes the TCStage for temperature-controlled analysis and the GISAXS stage for grazing-incident analysis, amongst others.

Accelerate your processes with automation

With all routine tasks fully automated, accelerate your measurement processes, and allow the SAXSdrive software to align all X-ray components and sample stages. You will also minimize human error when it comes to complex SAXS experiments.

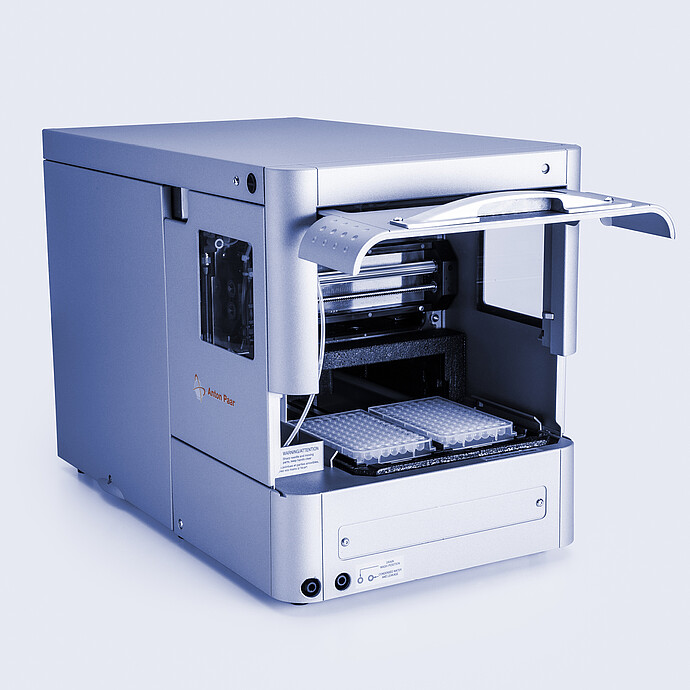

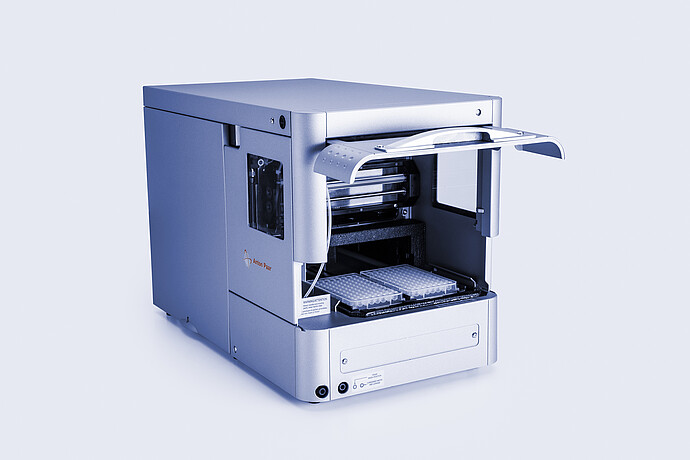

Automate your sample throughput too with the ASX autosampler for up to 192 samples, and ensure they maintain their integrity during storage with the temperature-controlled well plate compartment.

Powerful software

The SAXSdrive™ software, with automated routine steps, such as temperature scans and time-dependent studies.  allows you to perform experiments while focusing on more important tasks.

Analyze your SAXS data sets with SAXSanalysis™, which combines automated data processing with advanced analysis routines. With just one click, you can obtain key parameters such as radius of gyration (Rg), pair-distance distribution function (p(r)), particle size, Porod constant, specific surface, and Guinier and Kratky plots. Export data into all relevant formats for further analysis, and meet industry standards and norms, e.g., ISO 20804.

A life-long software update policy ensures that customers fully benefit from future innovation.

Support when you need it

Get the maximum out of your investment with Anton Paar's standard three-year warranty. Benefit from a global support network, guaranteeing maximum uptime. With subsidiaries across the globe, expert advice and on-site support are never far away. Our application experts are always available to support you with your measurement challenges.

Stringent quality management, established procedures (e.g. acceptance tests), and certified service personnel ensure minimum service response time, full service traceability, and top service quality.
