Vapor sorption analyzer:
VSTAR

High-resolution vapor sorption analyzer

excl.incl. 0VAT
Price
upon request
Purchasable online
in specific countries
Buy Anton Paar instruments online
Part number:
Check online availability Get a quote Buy this product online
Delivery time: %1$s – %2$s days %1$s – %2$s weeks %1$s – %2$s months

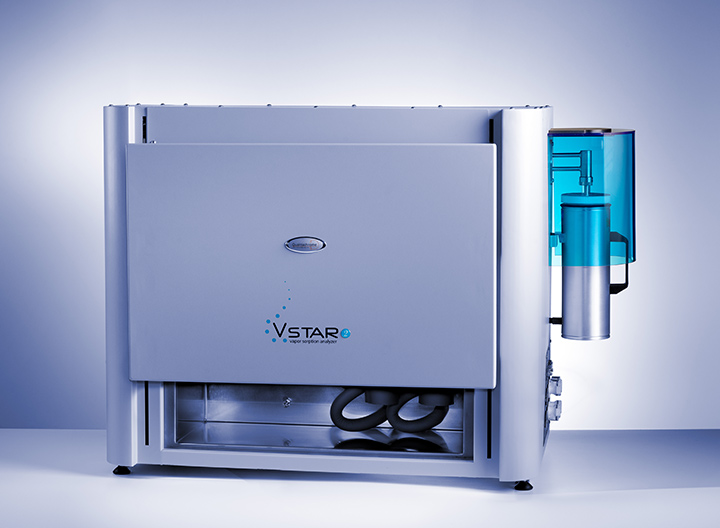

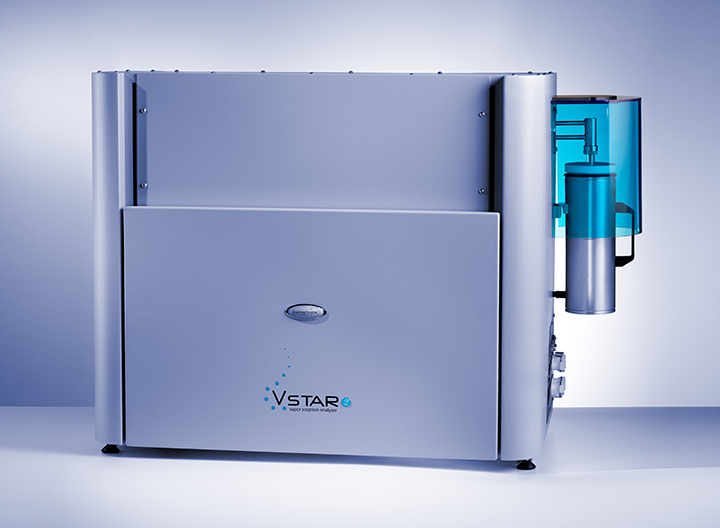

The VSTAR system goes beyond basic water sorption to provide vapor and gas sorption analyses over a broad range of analysis conditions. Based on the fast and high-resolution vacuum-volumetric gas sorption technique, VSTAR can obtain analysis results in roughly half the time required by classical DVS methods. Wide chemical compatibility allows users to measure adsorption/desorption isotherms and kinetics of many species (organics, alcohols, amines, and more). The VSTAR system comes in two- or four-station versions for any level of throughput the user needs.

Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
HR
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
China
ZH
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
TH
If you can't find your country in the list get a quote

Technical specifications

Performance 2-station 4-station
Analysis stations 2 4
Transducers 3 standard and 2 optional 5 standard and 4 optional

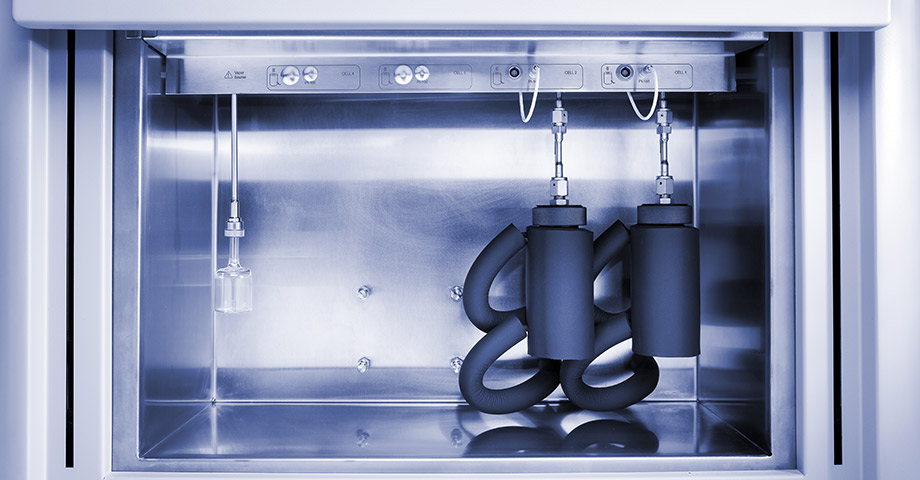

Gas/vapor inputs 1 vapor source
1 gas adsorbate port
1 dedicated helium port
Vacuum pump External oil pump or internal turbomolecular pump
Pressure transducers range 1 bar standard
(10 torr or 100 torr optional)
Transducer accuracy <0.05 % FS
Manifold/vapor source temperature range 40 ºC to 110 ºC
Sample analysis temperature range -20 ºC to 100 ºC

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents
