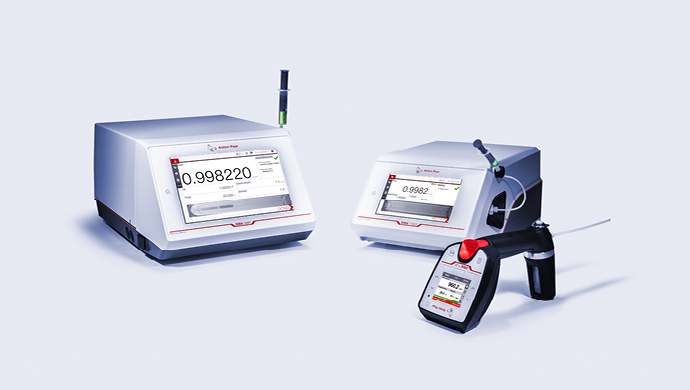

Benchtop Density Meter:
DMA
-
-
-
- +9
- 360°
- 4-digit measurements in 20 seconds
- Ultra-fast measurement mode maximizes throughput
- Best-in-class filling control provides reliable results
- 200+ conversion tables for quicker results
We’ve incorporated over five decades of experience developing market-leading benchtop density meters into our new generation of density meters. With best-in-class U-tube technology based on our patented Pulsed Excitation Method, our Next-Level Density Meters are the fastest, most intelligent benchtop density meters we’ve made to date.
20-second (4-digit) results give you high throughput. Compliance with a range of standards gives you peace of mind. There’s storage space for up to 10,000 measurements. And up to 6-digit accuracy gives you results you can rely on.
Now that’s taking it to the next level.
Customized solutions
Key features
Fast and accurate benchtop density meters
- Get market-leading precision, repeatability, and reproducibility with our patented Pulsed Excitation Method
- Maximize throughput with an ultra-fast measurement mode
- Define limits for different samples and make pass/fail QC decisions right away
- 200+ pre-installed conversion tables show concentration values immediately
- Achieve excellent results for highly viscous samples with the best viscosity correction on the market
- Get reliable measurement results for high- and low-density samples as well as inhomogeneous, sedimenting, or particle-containing ones
High-tech features simplify your lab
- Know your samples are filled correctly with FillingCheck™, which even detects microbubbles, and U-View™, which shows a zoomable image of the measuring cell
- Benefit from an automatic compensation of the U-tube’s aging effects and minimized drift over the lifetime of the instrument
- Use 30+ guided user workflows and five industry-specific profiles with predefined quantities and scales
- Streamline your data management with AP Connect
Guaranteed compliance gives you peace of mind
- Comply with ASTM D4052, D5002, D1250, ISO 12185 petroleum standards, and all relevant pharmacopeias
- Satisfy all major data integrity and traceability standards (e.g., 21 CFR Part 11)
- Ensure your results are traceable to the International System of Units (SI) with ISO 17025 calibration from our accredited lab
- Use our ISO 17034-certified reference material for density to ensure your instrument is perfectly calibrated
Modularity lets you conduct multiparameter analysis
- Connect your benchtop density meter to a range of Anton Paar measuring modules to forge a multiparameter system
- Measure all relevant QC parameters from the same sample under the same conditions
- Measure more than eight parameters at once
Automated processes for higher throughput
- Automate your filling, measuring, and cleaning process by choosing from seven different sample changers (optional)
- Ensure accurate results without operator influence
- Reduce contact with dangerous substances during filling with automated sample changers
Specifications
| DMA 4101 | DMA 4501 | DMA 5001 | |
| Measuring range | |||
| Density | 0 g/cm³ to 3 g/cm³ | ||
| Temperature | 0 °C to 100 °C (32 °F to 212 °F) | ||
| Pressure | Up to 10 bar (145 psi) absolute pressure | ||
| Accuracy | |||
| Density | 0.0001 g/cm³ | 0.00005 g/cm³ (full range) 0.00001 g/cm³ (0 g/cm³ to 1 g/cm³, 15 °C to 20 °C) | 0.000005 g/cm³ |
| Temperature | 0.03 °C (0.05 °F) | 0.02 °C (0.04 °F) (full range) 0.01 °C (0.02 °F) (15 °C to 20 °C) | 0.01 °C (0.02 °F) |
| Repeatability | |||
| Density | 0.00001 g/cm³ | 0.000005 g/cm³ | 0.000001 g/cm³ |
| Temperature | 0.02 °C (0.04 °F) | 0.01 °C (0.02 °F) | 0.001 °C (0.002 °F) |
| Reproducibility | |||
| Density | 0.00005 g/cm³ | 0.00002 g/cm³ | 0.000005 g/cm³ |
| Digital resolution | |||
| Density | 0.0001 g/cm³ | 0.00001 g/cm³ | 0.000001 g/cm³ |
| Features | |||
| Power features | U-View™, FillingCheck™, ThermoBalance™, full-range viscosity correction | ||
| Special functions | QM compliance, temperature scan, built-in ambient pressure sensor, condition monitoring adjustment at high viscosity (only DMA 5001 ) | ||
| Automation | Automatic sample changers | ||
| Modularity | pH, alcohol, CO2, O2, color, turbidity, refractive index | ||
| Optional accessories | Aerosol adapter, heating attachment | ||
| Technical data | |||
| Typical measuring time/sample | 20 s | 30 s | 40 s |
| Minimum sample volume | Approx. 1 mL | ||
| Wetted materials | PTFE, borosilicate glass | ||
| Dimensions (L x W x H) | 526 mm x 347 mm x 230 mm (20.7 in x 13.7 in x 9 in) | ||
| Weight | 22.04 kg (48.6 lbs) | ||
| Power supply | AC 100 to 240 V, 50/60 Hz, fluctuation ±10 %, 190 VA | ||
| Display | 10.1" TFT WXGA (1280 x 800 px); PCAP touchscreen | ||
| Controls | Touchscreen, optional keyboard, mouse, and barcode reader | ||
| Communication interfaces | 5 x USB, Ethernet, CAN, RS232 | ||
| Internal storage | More than 10,000 measuring values with camera images | ||
Standards
ABNT
JIS
AOAC
ASBC
ASTM
EBC
European Union
GB
HG
HM Revenue & Customs
IP
ISO
JJF
OIML
OIV
European Pharmacopoeia (Ph. Eur.)
QB
RANP
SH
US Pharmacopoeia (USP)
TTB
DIN
Japanese Pharmacopoeia (JP)
Chinese Pharmacopoeia (ChP)
Standards
ABNT
JIS
AOAC
ASBC
ASTM
EBC
European Union
GB
HG
HM Revenue & Customs
IP
ISO
JJF
OIML
OIV
European Pharmacopoeia (Ph. Eur.)
QB
RANP
SH
US Pharmacopoeia (USP)
TTB
DIN
Japanese Pharmacopoeia (JP)
Chinese Pharmacopoeia (ChP)
Standards
ABNT
JIS
AOAC
ASBC
ASTM
EBC
European Union
GB
HG
HM Revenue & Customs
IP
ISO
JJF
OIML
OIV
European Pharmacopoeia (Ph. Eur.)
QB
RANP
SH
US Pharmacopoeia (USP)
TTB
DIN
Japanese Pharmacopoeia (JP)
Chinese Pharmacopoeia (ChP)
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
