Filling Device:
PFD

  • +5
  • 360°
Model:
  • Filling from glass bottles, PET bottles, and cans with one single device
  • Direct sample transfer from the closed container
  • No loss of CO₂ or O₂ due to pressurized filling
  • Removable safety shield for easier cleaning and maintenance
  • Filling from glass bottles, PET bottles, and cans with one single device
  • Direct sample transfer from the closed container
  • No loss of CO₂ or O₂ due to pressurized filling
  • Removable safety shield for easier cleaning and maintenance

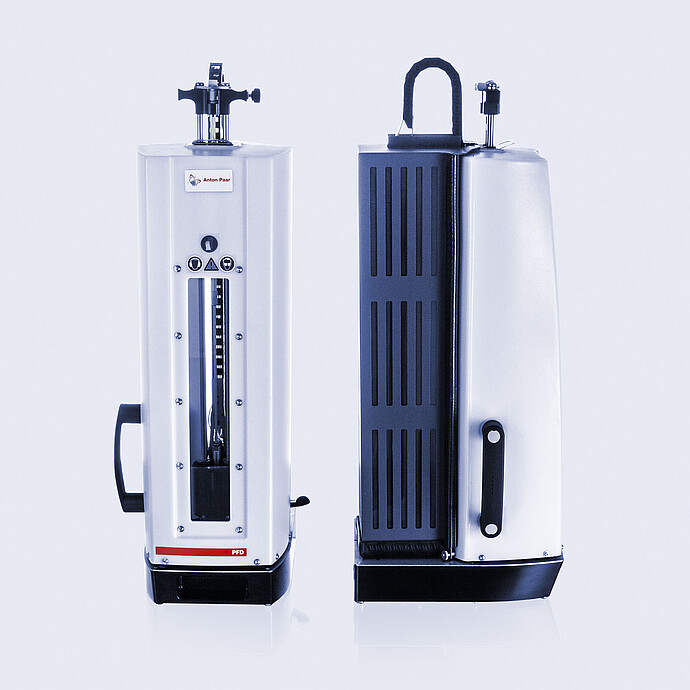

The PFD Filling Device transfers your sample directly from a closed container – either a bottle or a can – into the measuring chamber of a measuring instrument. As the closure is sealed before piercing, no CO2 is lost during sample transfer, which makes PFD and PFD Plus the ideal filling devices for CO2/O2 meters and Packaged Beverage Analyzers.

Key features

Direct sample filling from bottles and cans

Direct sample filling from bottles and cans

  • Suitable for glass bottles, cans, and PET bottles of any size
  • Different bottle adapters for different bottle sizes available
  • No centering plate necessary
Safe operation of pressurized systems

Safe operation of pressurized systems

  • High operator safety standard due to protective shield
  • Safety pin allows operation only with shield in place
  • Additional splinter shield for maximum user protection even if system is not placed in front of a wall (PFD Plus only)
Convenient use in lab and packaging areas

Convenient use in lab and packaging areas

  • Only 6 ± 0.5 bar (87 ± 7 psi) relative pressure of pressurized air or nitrogen needed
  • Base plate surface layer consists of stainless steel
  • For filling soft drinks, beer, water, and carbonated bottled water directly from the package

Technical specifications

Maximum allowed volume of packages
Can 0.5 L
Glass bottle 1 L
PET bottle 3 L
Compressed air 6 ± 0.5 bar (87 ± 7 psi) relative pressure
Dimensions
(L x W x H)
190 x 270 x 670 mm
(7.5 x 10.6 x 26.4 inches)
Maximum height with piercing head in highest position 1020 mm
(40.2 inches)
Weight 10.1 kg (22.3 lbs)



Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents

Consumables

Consumables

Not all items are purchasable online in specific countries.

To find out if you can purchase online from your location, check the online availability below.

CARDBOARD BOX 825x305x355

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 79858

PET BOTTLE ADAPTER D34

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 15741
Product details
Inner diameter 34 mm

RUBBER FOOT 3.5x12.7

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 64052

PET BOTTLE ADAPTER 45

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 16794

T-HOSE CONNECTOR 6 mm

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 17759

ABSOLUTE PRESSURE SENSOR 10 bar/145 psi

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 18035

L-FITTING 4mm

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 15592

CONNECTOR 6MM/4MM

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 40624

HOSE 2.5x4 POLYURETHANE TRANSPARENT

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 15272

O-RING 1,8x0,8 EPDM 70

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 46249

HOSE 4X6 NYLON

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 72595

GASKET COMPLETE

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 16137

O-RING 10x2 EPDM 70 FDA COMPLIANT

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 17521

SILENCER PFD

Compatible with:
PFD Standard | Plus
Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Part number: 6534
