Accessory for SAXSpoint 700:
USAXS Module

By watching this video, you're loading content from YouTube, which is a service of Google LLC.

For more information on how Google may use your data, read the Google Privacy Policy.

Customize your cookie settings

  • Automatic USAXS, SAXS, and WAXS studies via your SAXS instrumentation
  • Fully motorized experimental setup
  • Probing of structures from the nanometer to the micrometer level
  • Simultaneous, precise (± 0.1 °C) sample temperature control
Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Chile
ES
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Türkiye
TR
United Arab Emirates
EN
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN | VI
If you can't find your country in the list get a quote

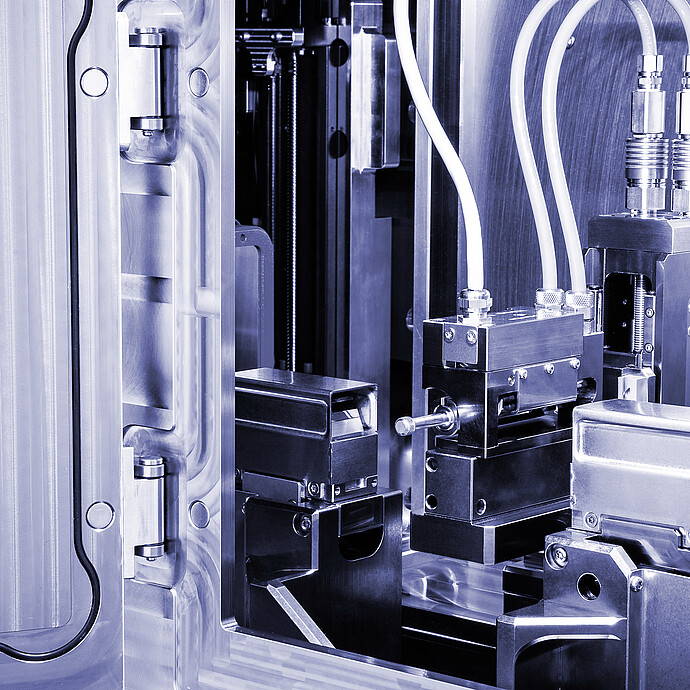

USAXS Module

Our USAXS module for the SAXSpoint 700 systems is a user-friendly experimental solution for characterizing materials from the nanometer to the micrometer level. The fully motorized setup allows users to obtain high-quality USAXS, SAXS, and WAXS data from their samples via automated, sequential X-ray scattering measurements, involving no manual interaction or change of the measurement configuration.

Key features

Automatic measurement of USAXS, SAXS, and WAXS data

Experience state-of-the-art SAXS instrumentation designed for maximum efficiency and precision. The USAXS module enables automatic, sequential acquisition of X-ray scattering data, providing high-quality USAXS, SAXS, and WAXS information in a single measurement. With its advanced design, it resolves structural details across a wide range – from Ångstroms to over 2.5 micrometers – all in one go, without any need for manual intervention. The result is a seamless workflow that delivers reliable, reproducible scattering data for comprehensive structural analysis at every scale.

High-performance components for precise results

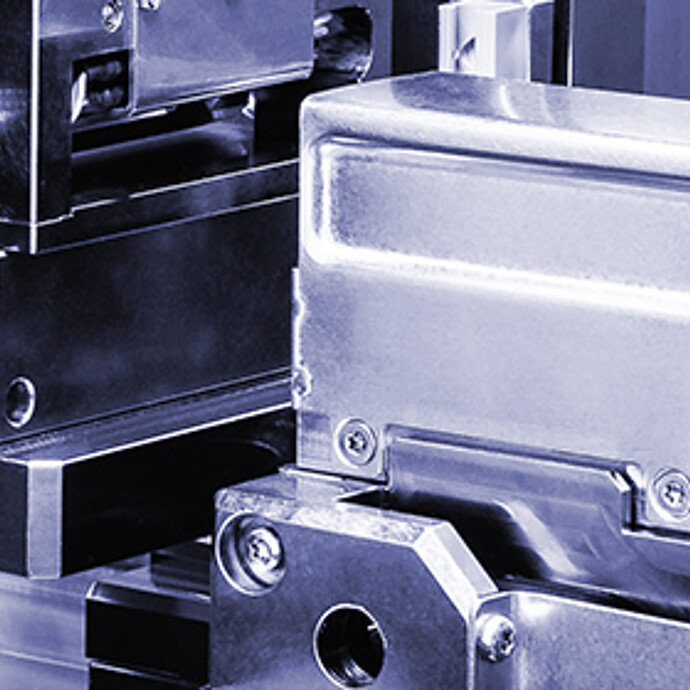

Our advanced SAXS instrumentation ensures unmatched precision and stability throughout every measurement. It features automatic positioning of channel-cut crystal assemblies both in front of and behind the sample, guaranteeing optimal beam conditioning and alignment. A high-precision goniometer with an angular resolution of 0.0001° enables exceptionally accurate scanning of the X-ray scattering signal, capturing even the finest structural variations. Combined with high-resolution detection using EIGER2 R series HPC detectors, this system delivers superior data quality and sensitivity, making it ideal for demanding, small-angle X-ray scattering applications.

Optimized optical design for maximum intensity

The USAXS stage design is optimized to achieve the highest intensities, allowing you to quickly obtain meaningful results. The specially engineered optical setup permits flux values of up to 6 x 106 photons/s at the sample position.

Specifications

Accessible q-range0.0012 nm-1 to 30.0 nm-1
Compatible sample holder units* TCStage 150 and 350, heated/cooled sampler, heated sampler
Temperature range-10 °C to +350 °C
IntegrationFully integrated in SAXSpoint 700 system
Automatic USAXS, SAXS, WAXS measurements

*To be ordered separately

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
