Dynamic Shear Rheometer Measuring Head:
DSR 502

  • media
  • +4
  • Modular rheometer measuring head with separate control unit
  • Full flexibility for integration into tailor-made setups
  • High sensitivity: Air-bearing-supported synchronous EC-motor
  • Accuracy in a vast viscosity range and oscillatory mode
  • Quick integration and exchange of measuring geometries
Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN
If you can't find your country in the list get a quote

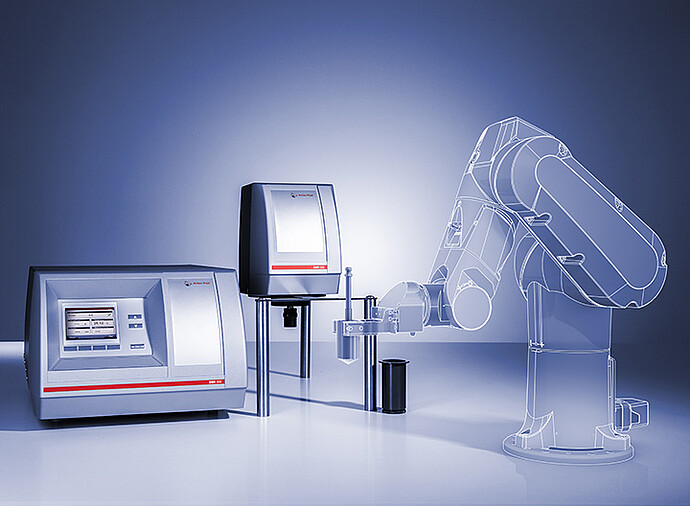

Customized rheometry with the performance of an MCR rheometer – the rheometer measuring head can be used for automation or for special measuring purposes that exceed the limits of a laboratory rheometer. It is the perfect solution for process integration or building a customized rheometer system. The modular device consists of a measuring head, which is equipped with the well-known EC-motor and air bearing technology of the MCR series, and a separate control unit.

Key features

Modularity: for a wide range of applications

Modularity: for a wide range of applications

Whatever your rheological applications are and will be in the future – Anton Paar’s DSR 502 head is quickly and easily adapted to meet your needs. Changing a cone-plate measuring system for concentric cylinders is just as easy as integrating the rheometer measuring head into a self-constructed test facility or extending your DSR 502 head’s capabilities with a wide range of application-specific accessories. Due to this, the DSR 502 head helps you solve industrial problems in areas in which a conventional rheometer fails. It supports companies in different industrial fields, from watch manufacturing to the production of paints and coatings.

Sensitivity: accuracy across a vast viscosity range

Sensitivity: accuracy across a vast viscosity range

The air-bearing-supported synchronous EC-motor is the key component of the DSR 502 head. Whether you perform zero-shear viscosity determinations on low-viscosity polymer solutions or measure highly viscous magnetorheological fluids at high shear rates and strains, the EC motor ensures accuracy across a vast viscosity range. Furthermore, the integrated normal force sensor enables highly precise measurements of the normal force that is applied to the measuring system and thereby gives additional information about the sample’s behavior under certain test conditions.

Usability: fast switching between different setups

Usability: fast switching between different setups

Whichever choices you make, all measuring geometries are swiftly and easily integrated and exchanged, and your rheometer measuring head reliably adapts to each new setup. Additionally, the QuickConnect function allows one-handed connection of the measuring systems and ensures fast, convenient system changes without the use of a screwing mechanism. The patented Toolmaster™ feature automatically recognizes and configures all connected measuring geometries.

Controllability: with the most innovative rheometer software

Controllability: with the most innovative rheometer software

Anton Paar’s new RheoCompass software is the most innovative and up-to-date rheometer software available on the market. Designed for intuitive use, RheoCompass enables application-oriented template filtering, customized test and analysis definitions, highly simplified data retrieval, and much more.

Reliability: service from the rheology experts

Reliability: service from the rheology experts

Anton Paar’s worldwide service network ensures that an expert on your system is always close by. Thousands of installed instruments around the globe, an extensive application database, and numerous publications by our rheology experts clearly show that Anton Paar is the first choice for answering any rheological question you may have.

Technical specifications

Technical Data



UnitRheometer Head (DSR)
Bearing Air
EC motor Yes
Maximum TorquemNm230
Min. torque rotationnNm10
Min. Torque oscillationnNm2
Torque resolutionnNm0.1
Angular deflection
(set value)
µrad0.1 to ∞
Angular resolutionnrad10
Min. angular velocityrad/s10-9
Max. angular velocityrad/s314
Max. speed1/min3000
Min. angular frequencyrad/s10-7
Max. angular frequencyrad/s628
Toolmaster™-Yes
QuickConnect Yes
Direct strain controller-Yes
Direct stress controller Yes
TruRate™-Yes
TruStrain™-Yes
