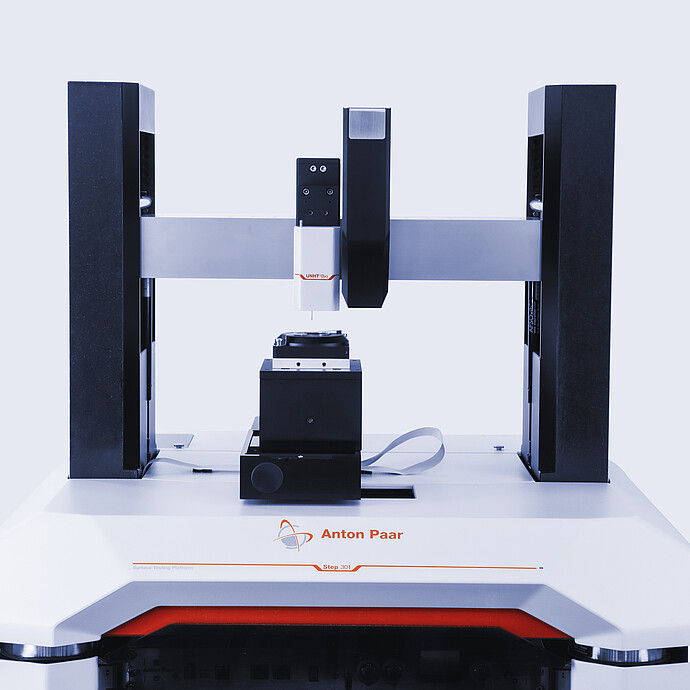

Anton Paar Bioindenter:
UNHT³ Bio
-
-
-
- +4
The Anton Paar Bioindenter is the ideal nanoindentation tester for characterizing the mechanical properties of tissues and soft materials from the human body. It is especially designed for research on soft biological materials, for example soft tissues. Rely on the Bioindenter’s unmatched force and displacement range together with excellent resolution for the most sensitive characterization of elastic modulus, creep and other properties of cartilage, tissues, scaffolds, hydrogels or eye tissues.
Combine instrumented indentation testing heads with scratch testing heads, a nanotribometer, and even an atomic force microscope on a unique Step surface testing platform.
Key features
Anton Paar Bioindenter: Dedicated to your research
Investigations with the Anton Paar Bioindenter result in valuable conclusions on the mechanical behavior of very soft biological materials. This can be especially important when it comes to gaining a better understanding of the human body, e.g. for improving diagnosis, developing new drugs, engineering tissues and much more. For these aspects, the Bioindenter is equipped with special features for the testing of biomaterials, such as the ability to perform controlled force versus depth measurements. Furthermore, the Bioindenter provides surface detection via change in contact stiffness and measurement protocols especially adapted to biological materials.
The indentation procedure: Optimized for your measurements
The Anton Paar Bioindenter offers a wide choice of indentation procedures including standard, advanced and cyclic indentation modes. Different matrices like simple matrix, advanced matrix and visual matrix for statistical evaluation and customized indentations are possible. User-defined indentation profiles can be established. The convenient contact point determination makes the Bioindenter an instrument you will like to work with.

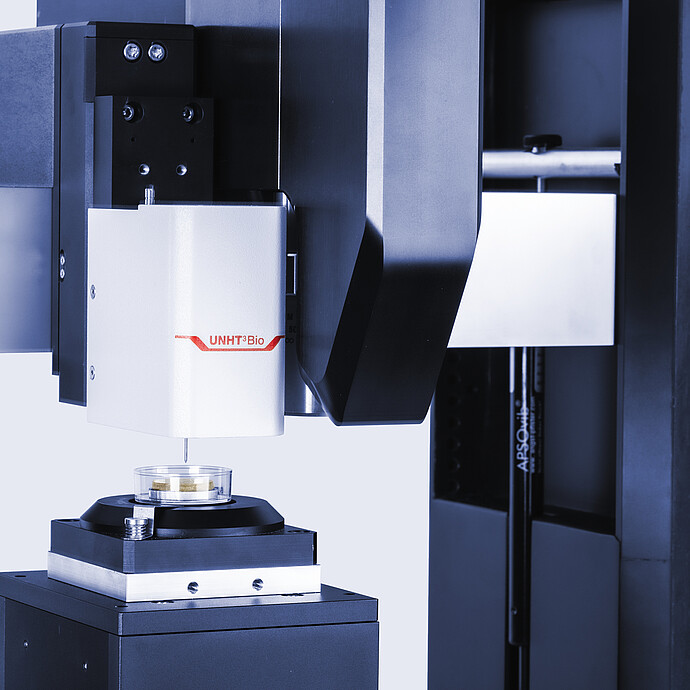

The measurement system: A class of its own

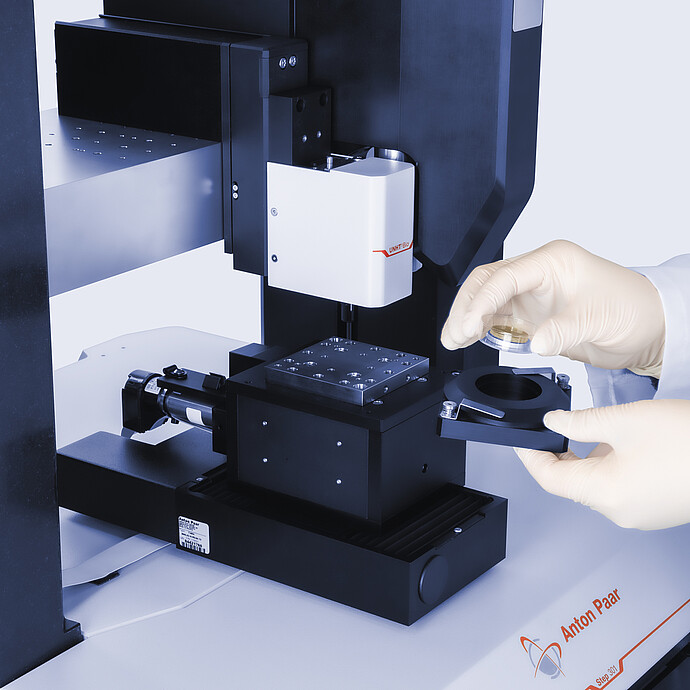

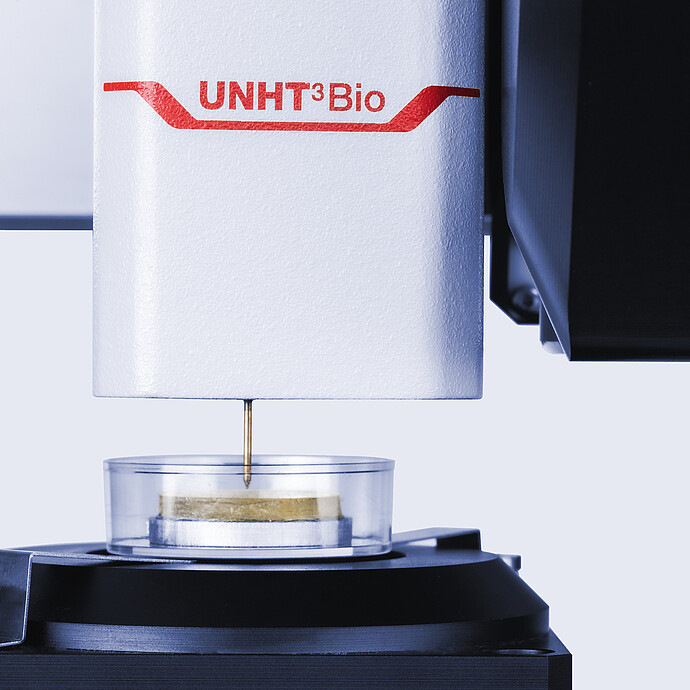

The measurement unit of the instrument itself is designed for high-precision nanoindentation in biology and medicine. The integrated true force sensor is able to apply a maximum load of up to 20 mN. The displacement sensor allows a large travel range. Furthermore, the Anton Paar Bioindenter provides good thermal stability to study creep and flow properties. The provided microscope comes with long working distance objectives. The motorized precision table enables movements in the X,Y and Z directions for the ideal positioning of the sample.

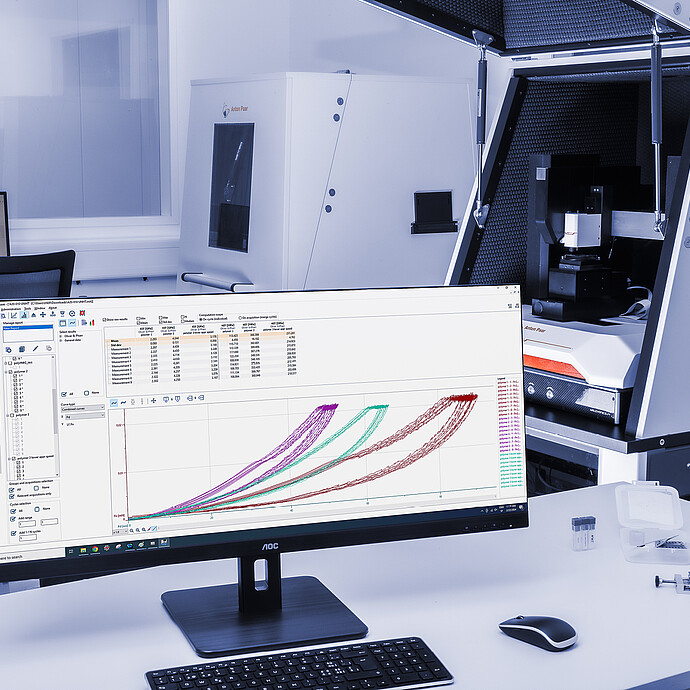

Software: The key to your results
With the powerful but easy to handle software, you have full control of the indentation procedures (load, displacement, etc.). The results are automatically analyzed and a statistical module for fast overview of your the data and results is also provided. User-defined ASCII exports can be made and multiple users can work with the instruments with controlled access rights. The elastic modulus can also be calculated from the loading part of the indentation curve using the Hertz’s model, which is more appropriate for biological materials than the commonly used Oliver & Pharr approach.
Different kinds of indenters: The choice is yours

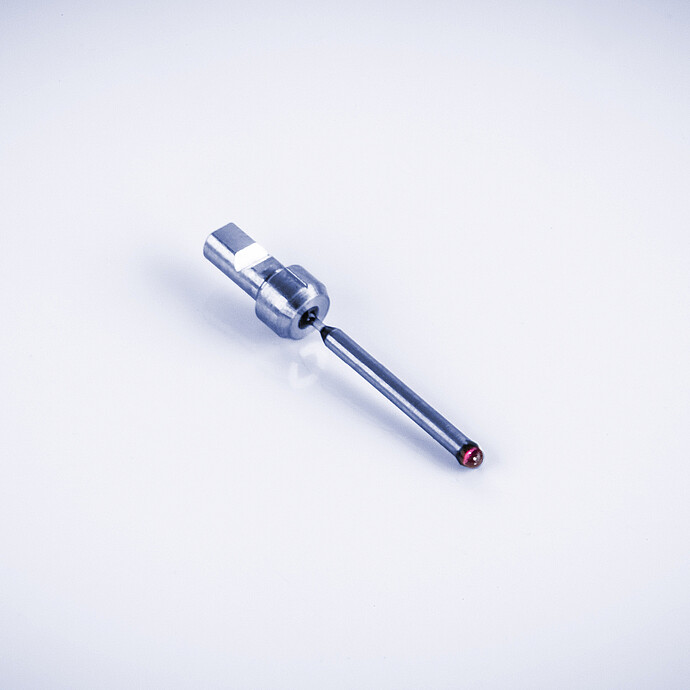

The Anton Paar Bioindenter works with different kinds of indenters depending on your materials and needs. There are spherical indenters with radii from 0.01 mm up to 0.5 mm and larger, flat-punch (flat-ended cylinder) indenters, Berkovich indenters, Vickers indenters, cube-corner indenters, and also custom-made indenters to suit even the most demanding applications (large radii spheres, cylinders, etc.).
Technical specifications
| Force | |
|---|---|
| Max. force | 20 mN |
| Resolution | down to 0.001 µN |
| Noise floor | 0.1 [rms] [μN]* |
| Depth | |
| Max. depth | 100 μm |
| Resolution | down to 0.006 nm |
| Noise floor | 0.25 [rms] [nm]* |
*Noise floor value specified under ideal laboratory conditions and using an anti-vibration table.
Standards
ASTM
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
