MCR 72 and MCR 92 are streamlined for your daily lab routine and available at a great price. The modularity allows QC measurements until now only possible in research, while saving costs because there's no need to upgrade to new, more expensive instruments. The modularity also maximizes flexibility because users can add modular elements when needed. Apply temperatures from -50 °C to +400 °C, pressures up to 150 bar, and use industry-specific upgrades to further boost your characterization capabilities.

Key features

Two models designed for your application

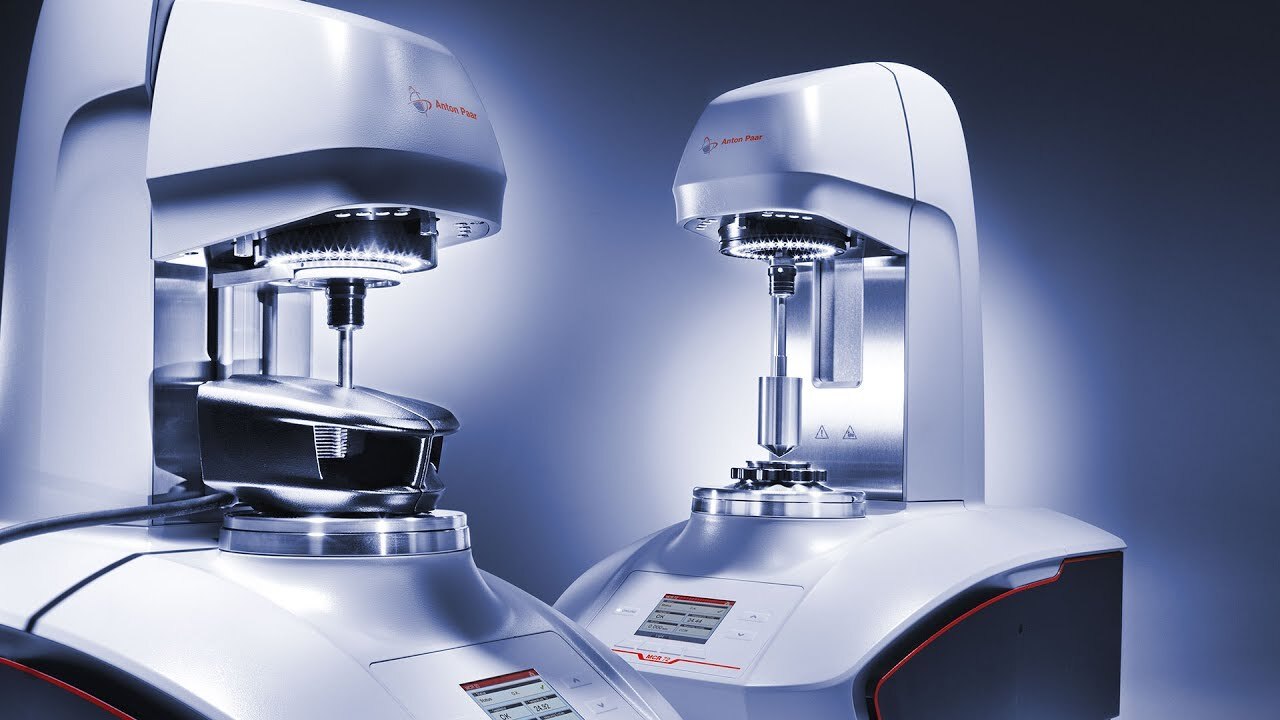

MCR 72 is equipped with a ball-bearing motor, which is robust and doesn’t require compressed air. MCR 92, with an air-bearing motor, is highly accurate (minimum torque of 0.4 µNm) and is used for sensitive samples. The two rheometers enable measurements in both rotational and oscillatory mode. The choice of rheometer depends on your application. To investigate the deformation and flow behavior of your sample, use MCR 72. For observing sample structure, MCR 92 is perfect. Both instruments have a motor that lifts up the measuring head automatically to set an exact measuring gap. This gap is 100 % reproducible.

The first entry-level rheometer with advanced modularity

Our rheometer sets a new standard in modularity, delivering unparalleled characterization capabilities for diverse industries. The ETD temperature device expands the temperature range from -50°C to +400°C, and is ideal for polymer QC. The optional Pressure Cell 150 offers unique entry-level QC pressure adaptability, catering to food and polymer applications. Advanced integration with dielectric spectroscopy enables simultaneous impedance and rheometric measurements for battery slurries. Additional modules allow precise starch and building material analyses, making it the only QC rheometer offering such comprehensive versatility without requiring an upgraded platform.

Step-by-step software

The RheoCompass software helps you find the test template you need, customize tests and analysis definitions, export your data, and generate reports. You are guided through your first rheological measurements with predesigned but individually adaptable templates, including integrated videos and pictures for extra support. Different accounts can be created for each operator working in the lab.

Unique features for easy handling and reproducible results

The highlight of these two rheometer models is the patented TruRay lighting of the measuring surface, which can be gradually regulated for a clear view of your sample. When changing between measuring systems, QuickConnect allows one-handed connection of the measuring systems and ensures fast, convenient system changes without the use of a screwing mechanism. Then, Toolmaste takes over by automatically recognizing the mounted tool and temperature units. Finally, the SafeGap feature ensures that the setting of the measuring gap is always identical for every measurement and exactly reproducible every time.

Experienced experts close to you

Anton Paar’s worldwide service network ensures that an expert for your system is always close by. 1,000 installed instruments around the globe, an extensive application database, a website full of practical information (World of Rheology), the book “Applied Rheology – With Joe Flow on Rheology Road”, eLearning courses, and numerous published works by our rheology experts make Anton Paar the number one choice for answering any rheological question you may have.

Specifications



Units

MCR 72

MCR 92

Bearing-BallAir
EC motor (brushless DC) with high resolution optical encoder-
Rotation mode-
Oscillation mode- (1
Direct strain controller-
Direct stress controller-
Maximum torquemNm125125
Minimum torque, rotationµNm2000.4
Minimum torque, oscillationµNm2000.4
Torque resolutionnNm100100
Angular deflection, set valueµrad1 to ∞1 to ∞
Angular deflection, resolutionnrad614614
Step rate, time constantms100100
Step strain, time constantms100100
Minimum angular velocity (2rad/s10-410-4
Maximum angular velocityrad/s157157
Minimum angular frequency (3rad/s10-310-4
Maximum angular frequencyrad/s628628
Minimum speed (CSS/CSR)rpm10-310-3
Maximum speedrpm15001500
Maximum temperature range°C-50 to +400-50 to +400
SafeGap, normal force limiter during gap setting-
TruRay, dimmable illumination of sample area-
Connections USB, Ethernet,  RS232, Analog interfaces, Pt100 port
Dimensionsmm380 x 660 x 530380 x 660 x 530
Weightkg3333
QuickConnect for measuring systems, screwless-
ToolmasterTM, measuring system-
ToolmasterTM, measuring cell-
CoolPeltierTM, Peltier-controlled plate system with built in cooling option that requires no additional accessories for counter-cooling°C25(4 below ambient temperature but not lower than -10(4 to +220 (4
Actively Peltier-controlled hood that requires no additional accessories for counter-cooling°C-5(4 to 200(4
CoolPeltierTM, Peltier-controlled cylinder system with built-in cooling option that requires no additional accessories for counter-cooling°C15(4 below ambient temperature but not lower than +5(4 up to +150 (4
Virtually gradient-free (horizontal, vertical) temperature control-
Rheometer Software:
     Test designer-
     Report designer-
     User management-
Electronic trim lock for the measuring system-
Automatic gap control/setting, AGC/AGS-

1) Depending on sample properties
2) Depending on measuring point duration and sampling time, practically any value is achieved
3) Set frequencies below 10-4 rad/s are of no practical relevance due to the measuring point duration > 1 day
4) System temperature, sample temperature may vary. For measurements at very high or low temperatures a calibration in the sample gap is recommended.

Standards

Open all
Close all

ASTM

D2556
D3236
D4440
D7271

DIN

51810 Part 1
51810 Part 2
53019-1
53019-2
53019-3
53019-4
54458

DIN EN

14770

EN

14770

ISO

3219
3219-1 draft
3219-2 draft

IOCCC

2000 (chocolate)

European Pharmacopoeia (Ph. Eur.)

2.2.8. Viscosity
2.2.10. Viscosity - Rotating viscometer method
0132

US Pharmacopoeia (USP)

912 - Viscosity - Rotational Methods

ICA

(chocolate)

Standards

Open all
Close all

ASTM

D2556
D3236
D4440
D7271

DIN

51810 Part 1
51810 Part 2
53019-1
53019-2
53019-3
53019-4
54458

DIN EN

14770

EN

14770

ISO

3219
3219-1 draft
3219-2 draft

IOCCC

2000 (chocolate)

European Pharmacopoeia (Ph. Eur.)

2.2.8. Viscosity
2.2.10. Viscosity - Rotating viscometer method
0132

US Pharmacopoeia (USP)

912 - Viscosity - Rotational Methods

ICA

(chocolate)
