Millikelvin thermometers:
MKT

Model:
  • Measuring uncertainty over the whole measuring range: 0.01 °C
  • For at-line measurements with a handheld instrument
  • Lightweight and portable
  • Measuring uncertainty over the whole measuring range: 0.001 °C (1 mK)
  • Reference thermometer for all applications and branches
  • Two separate probes for comparison calibration
  • Sensors available for ITS 90, EN 60751, and ASTM E1137
excl.incl. 0VAT
Price
upon request
Purchasable online
in specific countries
Buy Anton Paar instruments online
SKU:
Check online availability Get a quote Buy this product online
Delivery time: %1$s – %2$s days %1$s – %2$s weeks %1$s – %2$s months

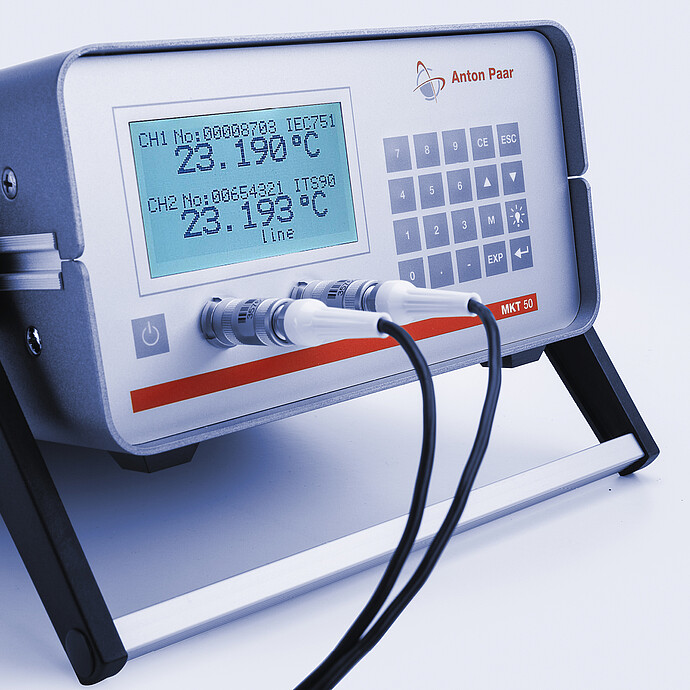

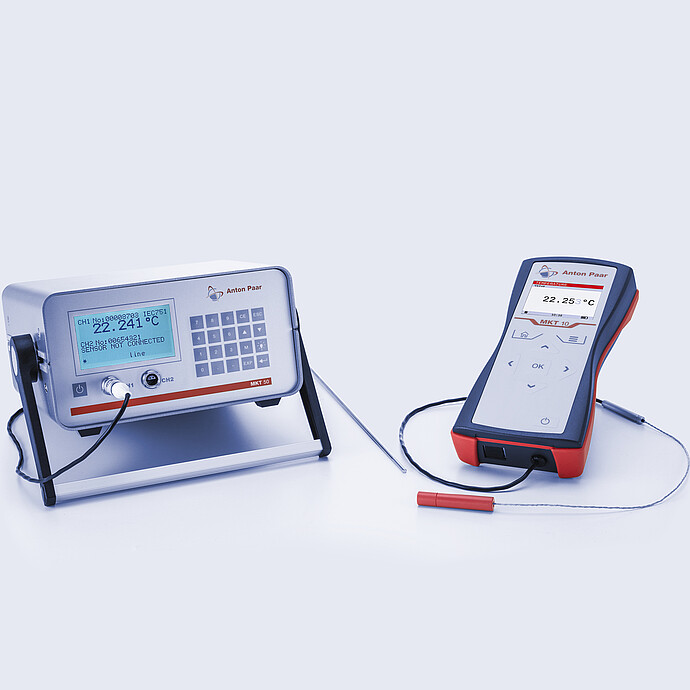

Choose from two Millikelvin Thermometers, MKT 10 and MKT 50, for measurement in the lab, at-line, or for convenient mobile use. MKT 10 is a small, very lightweight, and easily portable handheld thermometer. It comes with one sensor and a carrying case for safe transport. With its measuring accuracy of 0.01 °C it is ideal for at-line measurements and quick measurements on site in several industries. Your MKT 50 Millikelvin Thermometer measures the temperature to the highest level of accuracy in combination with two highly precise Platinum Resistance Thermometers. It is by far the best-priced thermometer for applications which require a low measuring uncertainty of 0.01 °C to 0.001 °C. (Sensor needs to be ordered separately for MKT 50)

Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
HR
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
China
ZH
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
TH
If you can't find your country in the list get a quote

Key features

Highest accuracy

Highest accuracy

  • EN 60751 for industrial Platinum Resistance Thermometers (PRT)
  • Resolution: 0.0001 °C (0.1 mK) with MKT 50 and 0.001 °C (1 mK) with MKT 10
  • Measuring uncertainty over the whole measuring range: 0.001 °C (1 mK) with MKT 50 and 0.01 °C with MKT 10
  • ITS‑90 for standard thermometers (SPRT: Standard Platinum Resistance Thermometer) with MKT 50
  • With MKT 50 comparison calibration (PRT) or fixed point calibration (SPRT) is possible.
Flexible power supply and communication

Flexible power supply and communication

  • Battery-operated

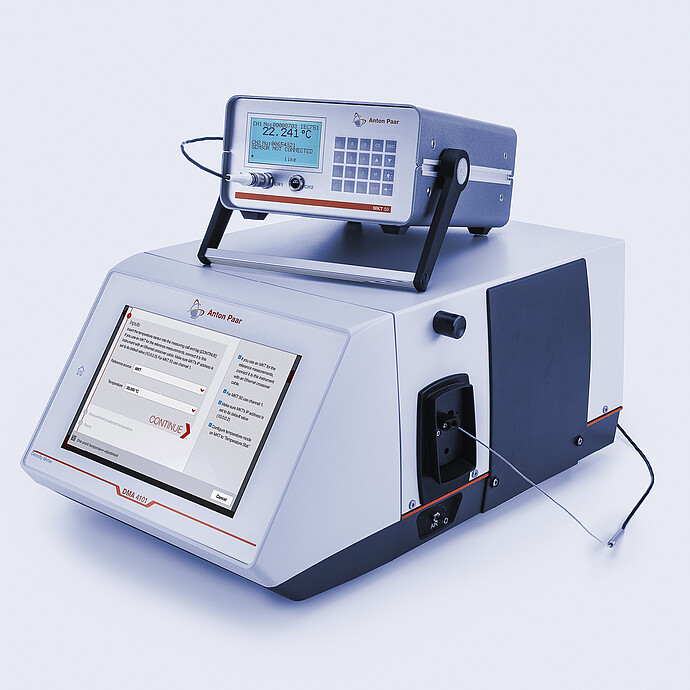

  • Ethernet interface for easy communication with DMA M instruments and the SVM series of viscometers for calibration
  • The high precision thermometers can be used in the lab by connecting them to the mains or in the field as portable thermometers working from the battery.
  • MKT 50: mains adapter
  • MKT 10: Power over Ethernet (PoE) – ecologically friendly power supply for less use of batteries
Long-time experience

Long-time experience

Anton Paar has decades of experience in density measurement which goes hand in hand with highly accurate temperature measurement since accurate temperature measurement is the basis for accurate density measurement.

Versatile applications

Versatile applications

  • Ideal for different applications: from temperature measurement in the production process to different calibrations in the lab

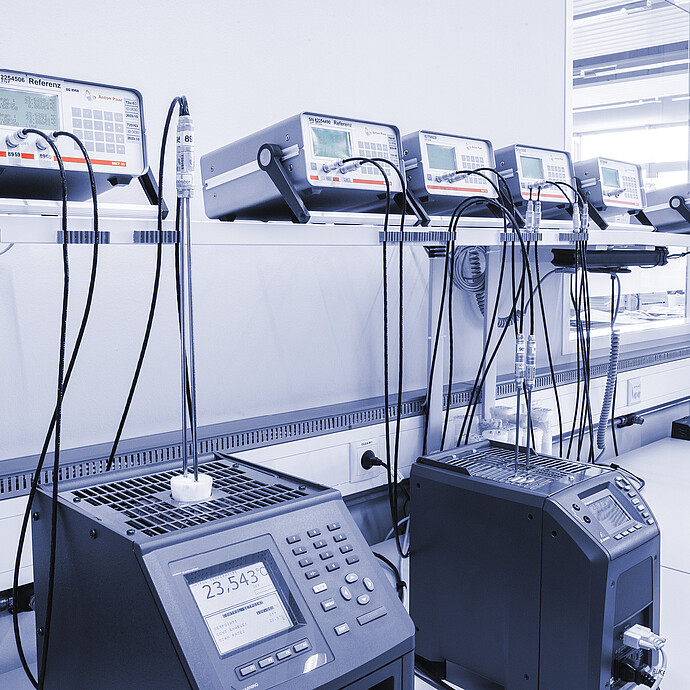

  • Highly accurate comparison calibrations of all types of thermometers in liquid baths are possible with MKT 50.
  • MKT 50 is a reference thermometer for all applications and branches.
  • Calibration of standard thermometers at temperature fixed points according to ITS‑90 with MKT 50
  • MKT 10 provides maximum flexibility and at-line measurements with a handheld instrument.
Available sensors

Available sensors

  • Highly stable Pt 100 sensors with factory or DAkkS certificates
  • Flexible sensors for adjustment of DMA density meters and the SVM series of viscometers
  • MKT 50: Two types of working SPRTs are available for the highest accuracy (up to 1.4 mK).
  • MKT 50: for ITS‑90, EN 60751, and ASTM E1137 sensors

Technical specifications

MKT 50MKT 10
Measuring range
Temperature−260 °C to +962 °C
(−436 °F to +1764 °F)
0 °C to 100 °C
(32 °F to 212 °F)
Resistance0 Ω to 440 Ω100 Ω to 140 Ω
Resolution
Temperature0.1 mK (Pt 100)1 mK
Resistance40 μΩ0.4 mΩ
Measurement uncertainty*
Temperature< 1 mK (Pt 100)< 10 mK
Resistance< 400 μΩ< 4 mΩ
Measuring sensorPt 100 or Pt 25.5
(EN 60751 or ITS‑90)
Pt 100
(EN 60751)
Measuring current0.41 mArms1 mADC
Internal reference resistor400 Ω (Vishay Precision Group, VHP 101)400 Ω (Vishay Precision Group, VHP 101)
Number of sensor inputs21
Sensor connection4‑wire (LEMO 1S304)4‑wire, soldered
Measuring time1.44 seconds (for both channels)1 second (for one channel)
Data outputsRS‑232D (optional USB**)
LAN (Ethernet, 10 Mbit)
LAN (PoE, 10 Mbit)
Ambient operating temperature0 °C to 35 °C
(for highest accuracy 20 °C to 25 °C recommended)
0 °C to 35 °C
(for highest accuracy 20 °C to 25 °C recommended)
Power supplyPower adapter 7.5 V or
2× AA batteries
4× AA batteries or
Power over Ethernet (PoE)
Dimensions (L × W × H)240 mm × 190 mm × 110 mm
(9.5 in × 7.5 in × 4.3 in)
200 mm × 100 mm × 35 mm
(7.8 in × 3.4 in × 1.4 in)
Weightapprox. 2 kg (4.4 lbs)approx. 500 g (1.1 lbs)

*) refers to the calibration of the reference resistor without contribution of the sensor (confidence level: 95 %, number of measurement values: 50, reference temperature: 23 °C)

**) with USB/RS‑232 adapter

Standards

A

ASTM E1137

E

EN 60751

I

ITS 90

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
