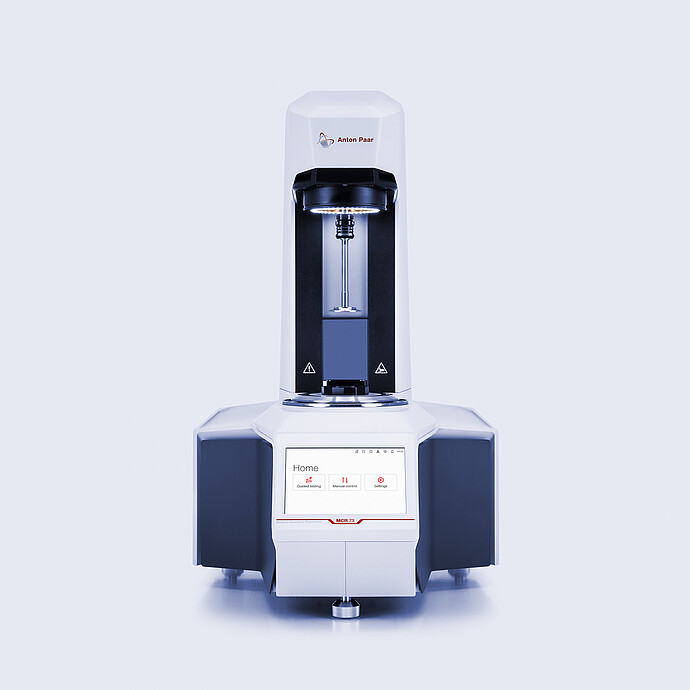

Entry-Level Rheometer:
MCR

  • +4
  • 360°

By watching this video, you're loading content from YouTube, which is a service of Google LLC.

For more information on how Google may use your data, read the Google Privacy Policy.

Customize your cookie settings

Model:
  • Fully-fledged QC and entry-level product development rheometry
  • Highly accurate air-bearing motor (minimum torque 80 nNm)
  • Advanced testing thanks to normal force control
  • QC platform for tribology, powder rheology, and more
Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Chile
ES
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Türkiye
TR
United Arab Emirates
EN
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN | VI
If you can't find your country in the list get a quote

A new era in rheometry begins with the instrument carrying the DNA of Anton Paar’s flagship MCR series. Welcome to the next generation of entry-level instruments, inspired by more than a decade of innovation.
Designed for speed, intelligence, and trust, they deliver the fastest measurements, and the highest reproducibility. They’re effortless to operate due to touchscreen operation, digital leveling, and TruRay illumination. And the CoolPeltier system ensures precise, cost-efficient temperature control without thermostats. With automatic calibration, verification tools, and full support, these instruments redefine entry-level rheometry.

Key features

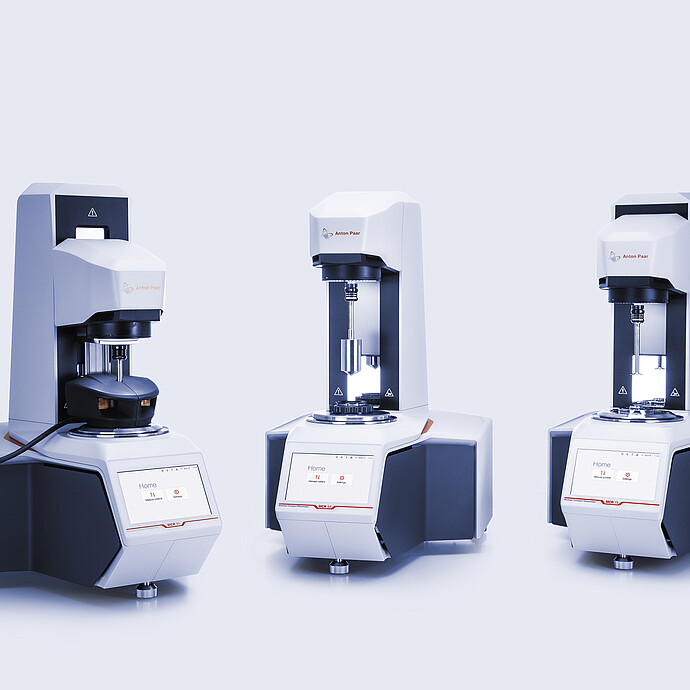

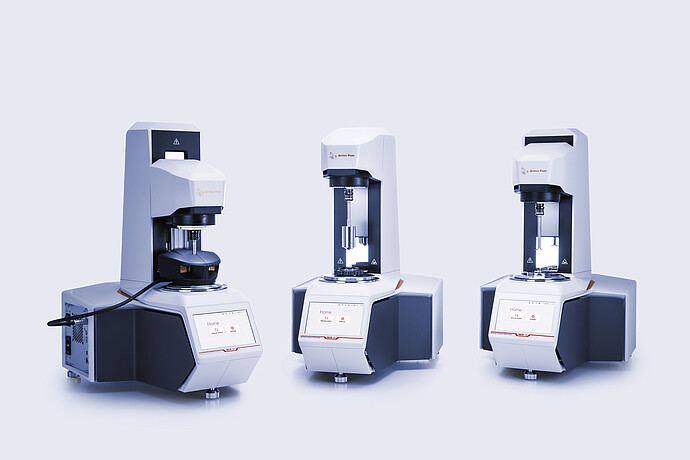

The fastest entry-level rheometer

Experience the fastest entry-level rheometer on the market, delivering standard measurements up to 60 % faster compared to any other comparable rheometer. Features like the Trimming Mirror and TruRay Illumination simplify and accelerate sample preparation. And QuickConnect and Toolmaster ensure instant, tool-free setup and automatic accessory recognition. This way, you get precision and efficiency in every test.

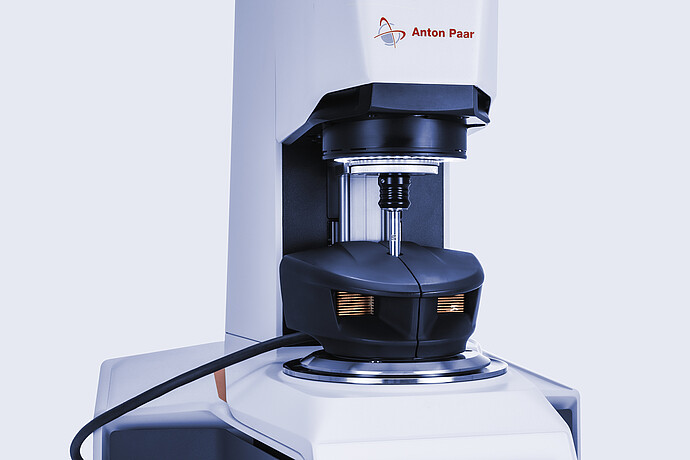

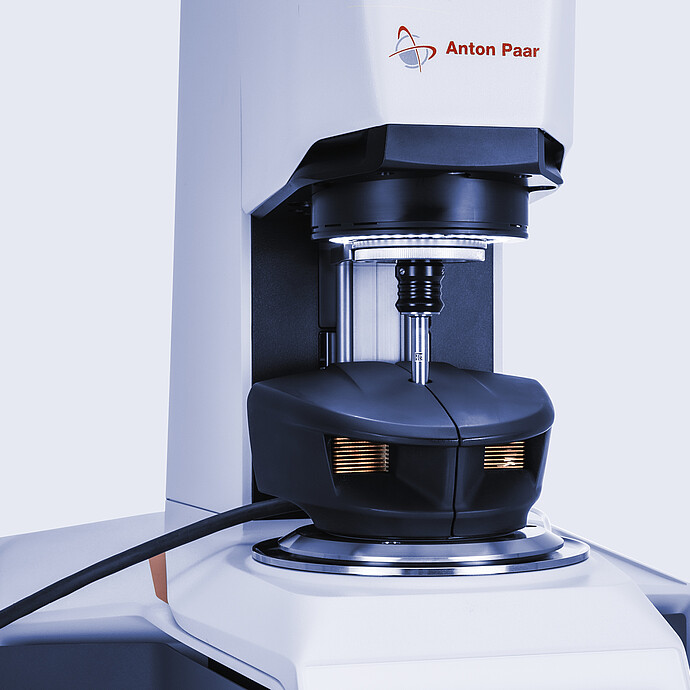

The most precise temperature control in entry-level rheometry

Achieve the most precise temperature control in entry-level rheometry with CoolPeltier technology (no thermostat required), reducing costs and environmental impact. The gradient-free range from -5 °C to +200 °C ensures unmatched accuracy, while automatic calibration sets cover -50 °C to +400 °C for consistent precision. Compact, sustainable, and more capable than the competition, it delivers reliable results with lower investment and operational costs.

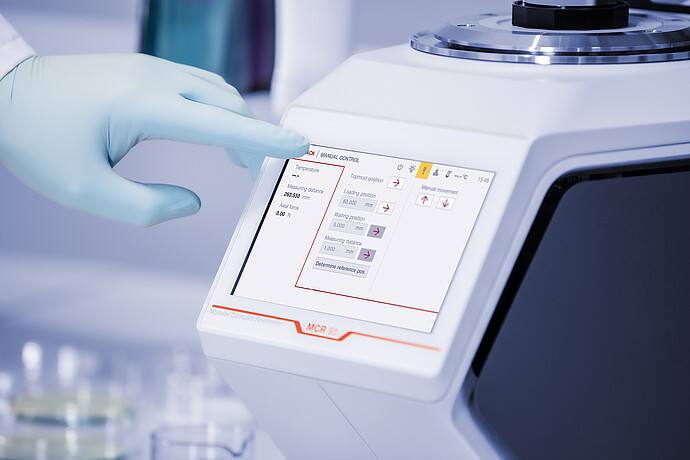

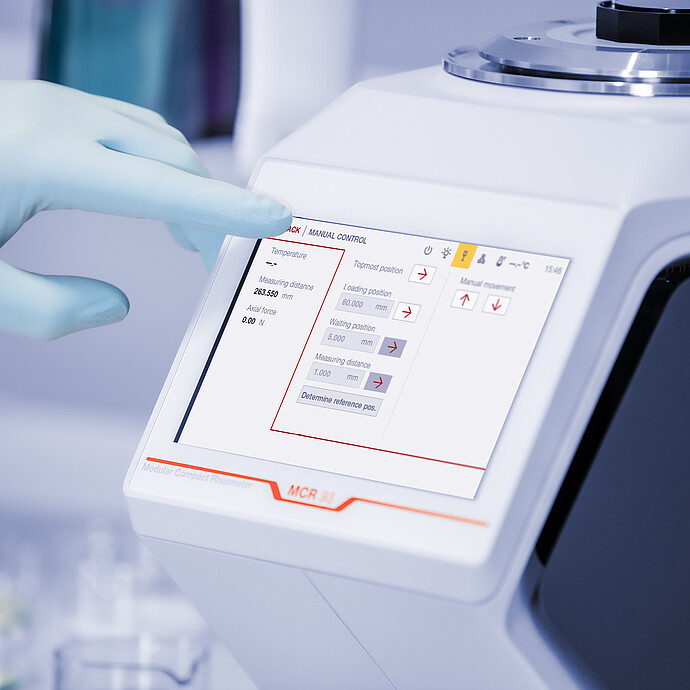

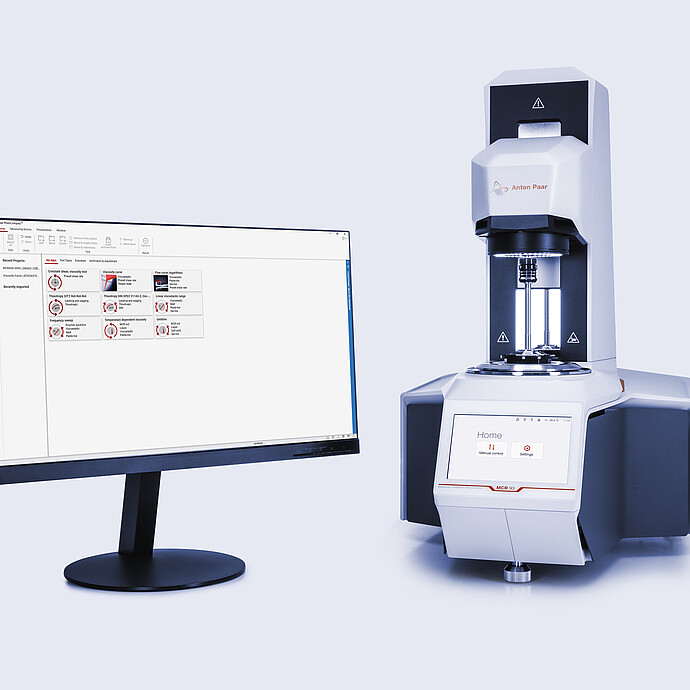

The smartest entry-level rheometer

The smartest entry-level rheometer features an integrated touchscreen for complete test setup, sample preparation, and operation directly on the instrument. Auto Control continuously monitors the sample behavior during tests and adjusts the control loop in real time – automatically delivering high-quality results even for unknown samples. This eliminates the need for time-consuming preset adjustments, and ensures effortless precision every time.

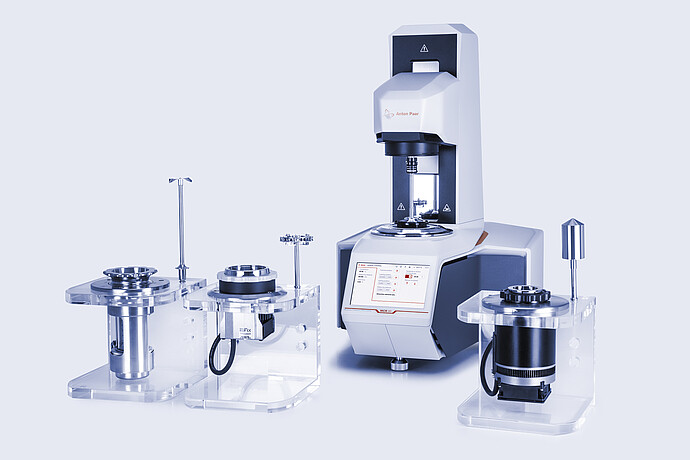

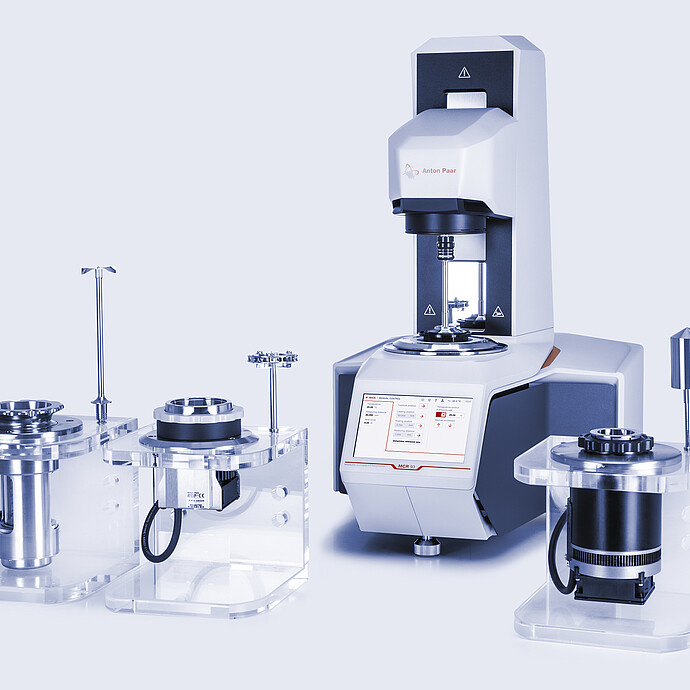

The most adaptable entry-level rheometer

The most adaptable entry-level rheometer sets new standards in flexibility, with modularity that expands from core QC applications to advanced areas like powder rheology and tribology with the MCR 93. With its ball-bearing design, the MCR 53 operates without pressurized air, offering maximum flexibility for use even next to production lines. Built to adapt and grow with your testing needs, it delivers reliable performance today and is fully equipped for the future.

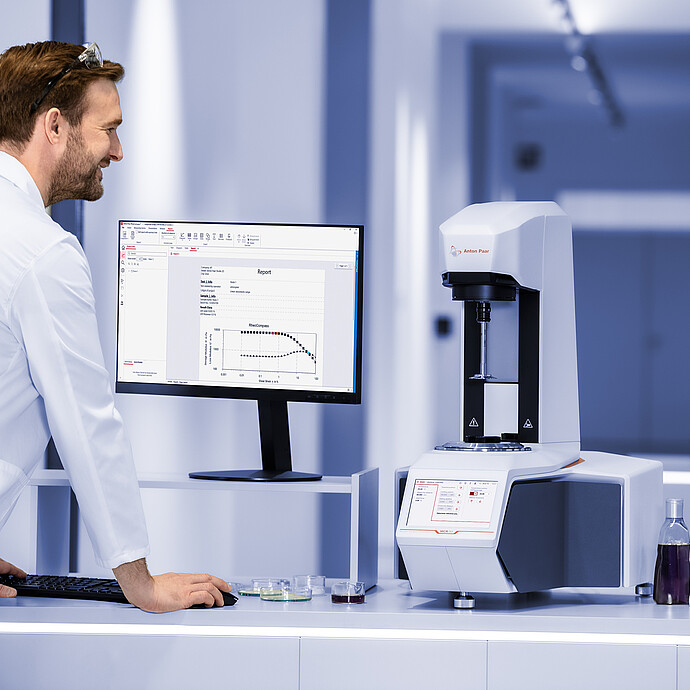

The most trusted entry-level rheometer

The most trusted entry-level rheometer combines Anton Paar’s pioneering legacy with state-of-the-art MCR technology for unmatched reliability and precision. RheoCompass for QC features the industry’s largest library of guided templates and SOPs – simplifying every step of your workflow. With configurable My Apps and expert support, it delivers consistent, confident results for every user and application. Our unique digital leveling system replaces traditional water balances with smart software control, making setup faster and more precise. The leveling status is automatically stored with each data set, so you can always verify correct alignment later – ensuring full confidence in results.

Specifications



MCR 53

MCR 73

MCR 93

Bearing design

Mechanical

Air, fine-pored carbon

Motor design

Electronically commutated (EC) permanent magnet synchronous motor

Displacement transducer

High-resolution optical encoder

Normal force measurement design

x

x

360° capacitive sensor, non-contacting, fully integrated in bearing

Min. torque (rotation)

200 µNm

100 nNm

80 nNm

Min. torque (oscillation)

200 µNm

100 nNm

80 nNm

Max. torque

125 mNm

160 mNm

160 mNm

Torque resolution

5 nNm

Angular deflection resolution

8 nrad

Min. angular velocity1)

10-8 rad/s

Max. angular velocity / max. speed

157 rad/s
1,500 rpm

261 rad/s
2,500 rpm

Min. frequency2)

10-7 Hz

Max. frequency

100 Hz

Normal force range

x

x

0.001 N to 50 N

Normal force resolution

0.4 mN

Auto Control

✓

TruStrain

x

TruRate

x

Dimensions (W x H x D)

442 mm x 725 mm x 596 mm

Weight

45 Kg

✓ included | x not included

1) Depending on measuring point duration and sampling time, practically any value is achieved
2) Set frequencies below are of no practical relevance due to the measuring point duration >1 day

Trademarks: RheoCompass (9177015), SmartPave (16731556), Toolmaster (3623873), TruRay (15273915), CoolPeltier (009177056)

Standards

Open all
Close all

ASTM

D2556
D3236
D4440
D7271

DIN

51810 Part 1
51810 Part 2
53019-1
53019-2
53019-3
53019-4
54458

EN

14770

ISO

3219
3219-1 draft
3219-2 draft

IOCCC

2000 (chocolate)

European Pharmacopoeia (Ph. Eur.)

2.2.8. Viscosity
2.2.10. Viscosity - Rotating viscometer method
0132

US Pharmacopoeia (USP)

912 - Viscosity - Rotational Methods

ICA

(chocolate)

CFR

21 Part 11

Standards

Open all
Close all

ASTM

D2556
D3236
D4440
D7271

DIN

51810 Part 1
51810 Part 2
53019-1
53019-2
53019-3
53019-4
54458

DIN EN

14770

ISO

3219
3219-1 draft
3219-2 draft

IOCCC

2000 (chocolate)

European Pharmacopoeia (Ph. Eur.)

2.2.8. Viscosity
2.2.10. Viscosity - Rotating viscometer method
0132

US Pharmacopoeia (USP)

912 - Viscosity - Rotational Methods

ICA

(chocolate)

CFR

21 Part 11

Standards

Open all
Close all

ASTM

D2556
D3236
D4440
D7271

DIN

3219
51810 Part 1
51810 Part 2
53019-1
53019-2
53019-3
53019-4
54458

EN

14770

ISO

3219-1 draft
3219-2 draft

IOCCC

2000 (chocolate)

European Pharmacopoeia (Ph. Eur.)

2.2.8. Viscosity
2.2.10. Viscosity - Rotating viscometer method
0132

US Pharmacopoeia (USP)

912 - Viscosity - Rotational Methods

ICA

(chocolate)

CFR

21 Part 11

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents

Similar products

Modular Compact Rheometer:
MCR

Advanced Rheometer:
MCR 703

Polymer Melt Rheometer:
SmartMelt

Dynamic Shear Rheometer:
SmartPave

Differential Scanning Calorimeter:
Julia DSC

Rotational Viscometer:
ViscoQC

Rotational Rheometer:
RheolabQC

Complementary products

Not all items are available for purchase online.

If you do not find the item you require, please contact your Anton Paar sales representative.

Product Type
  • Accessory
Category
  • Cell
  • Extended Material Characterization
  • Geometries
  • Miscellaneous
  • Pressure Cell
  • Temperature Control

Accessories for MCR:
Ball Measuring System & Building Material Cell

Compatible with :
MCR 93 | 73 | 53
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Product details
  • Accessories for extended material characterization
  • Measuring systems for large-particle rheology
  • Designed for building materials, food products, slurries, and sludges
  • Built-in temperature control

Temperature Control for MCR:
Electrical Temperature Devices (ETD)

Compatible with :
MCR 93 | 73 | 53
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Product details
  • Electrically heated temperature control devices for MCR rheometers
  • High-temperature measurements up to 400 °C
  • Parallel-plate, cone-plate, concentric cylinder, and double-gap measuring geometries

Accessory for MCR:
Rheometer Geometries

Compatible with :
MCR 93 | 73 | 53
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Product details
  • Wide range of measuring systems for RheoLabQC and the MCR rheometer series
  • Concentric-cylinder, double-gap, cone-plate, and parallel-plate systems; vane geometries and spindles; Krebs spindles
  • Customized solutions upon request

Accessory for MCR:
Starch Cell

Compatible with :
MCR 93 | 73
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Part number : 16083
Product details
  • Accessory for extended material characterization
  • Starch pasting cell for analysis of starch gelatinization or pasting behavior
  • Max. heating rate: 60 °C/min; max. cooling rate: 45 °C/min


Accessory for MCR:
Pressure Cell

Compatible with :
MCR 93 | 73
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Product details
  • For investigation of the effect of pressure on rheological properties
  • Unique pressure range of up to 1,000 bar
  • Choose between gas or liquid pressurization

MCR Rheometer Setups For:
Powder Rheometry

Compatible with :
MCR 93
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote

Accessory for MCR:
MCR Tribometers

Compatible with :
MCR 93
Get a quote
Online price only excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Product details
  • Test lubricants, greases, polymers, etc.
  • Use special setups for food and beverages, cartilage, implants, tissues, and others
  • Obtain extended Stribeck and breakaway torques with just a click
  • Precisely control temperature and normal force
See more
