Inline alcohol measurement configuration:

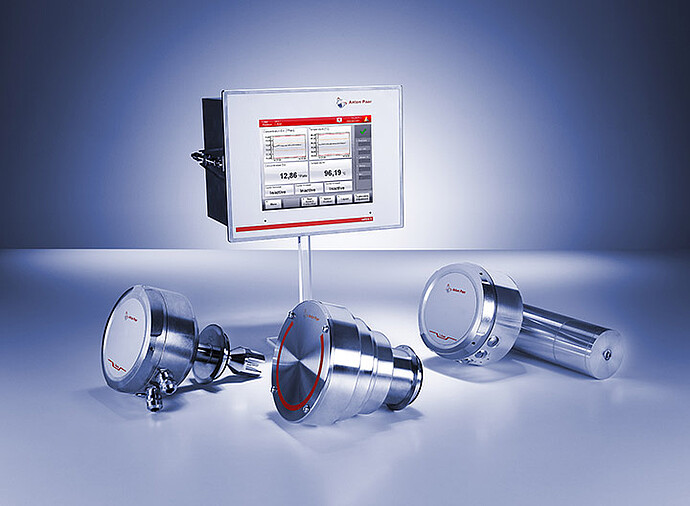

Alcohol Monitor

Inline alcohol measurement

excl.incl. 0VAT
Price
upon request
Purchasable online
in specific countries
Buy Anton Paar instruments online
SKU:
Check online availability Get a quote Buy this product online
Delivery time: %1$s – %2$s days %1$s – %2$s weeks %1$s – %2$s months

Determine the alcohol content of binary mixtures for various beverages using density, sound velocity, or refractive index. Choose the most appropriate configuration depending on your integration and legal requirements. Maintenance-free operation and direct installation in the line with integrated HMI result in cost-optimized monitoring and control.

Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
HR
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
China
ZH
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
TH
If you can't find your country in the list get a quote

Key features

Three measurement technologies to fit your requirements

Density

  • L-Dens 7500 with highest accuracy
  • Suitable for fiscal measurements
  • W-shaped oscillating tube
  • Digital signal processing
  • New Pico 3000 as transmitter + HMI option
  • New mechanical design for reduced size and weight

Sound

  • L-Sonic 5100: Best sensor for applications requiring modest accuracy
  • EHEDG-certified
  • Digital signal processing
  • New Pico 3000 as transmitter + HMI option

Refractive index

  • L-Rix 510 for pulpy and viscous samples
  • EHEDG-certified


No operating costs

All alcohol monitor versions are maintenance-free and can be installed directly in the main line, which saves time and avoids operating costs.


The highest accuracy for years of continuous use

The density version has outstanding accuracy, which makes it suitable for fiscal measurements. It comes with a design that withstands almost every environmental condition and fulfills two important demands:

  • Keeping space requirements to a minimum also permits at-line installation with low space capabilities and minimizes costs for additional space
  • Years of continuous use are guaranteed due to first-class technology that avoids the need for wearing parts


Cost-optimized monitoring and control with integrated HMI

The new, integrated Pico 3000 process instrumentation controller combines configurability and diagnostics with an intuitive user interface. Built-in control functions and flexible PLC connectivity give you full control of your product and process specifications at any time.


Improved process capability – keeping an eye on all relevant key parameters

The powerful data acquisition and visualization software (client-server) Davis 5 enables you to save all data and alarms, provides statistical process control and graphical trend analysis, and allows product adjustments. Password-protected access to all measuring systems is possible from various locations, while providing powerful reporting and integration with your corporate quality management system.

Technical specifications

Alcohol Monitor Based on density Based on sound velocity Based on refractive index
Range 0 %v/v to 100 %v/v or %w/w 50 %w/w to 100 %w/w 0 %w/w to 40 %w/w
Accuracy 0.05 %w/w (0 % to 90 %)
0.03 %w/w (90 % to 100 %)
0.1 %w/w 0.23 %w/w
Measuring temperature 0 °C to +40 °C 10 °C to +50 °C 10 °C to +50 °C

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents

Use the Document Finder to see all the documents for this product
