Accessories for XRDynamic 500:
XRD Sample Holders and Stages
-
-
-
- +7
- Versatile sample stages for all applications
- Stages for operando battery measurements
- Wide variety of XRD sample holders for different sample types
- Component recognition and automatic alignment
Whether you perform measurements in reflection or transmission, with capillaries, or under non-ambient or operando conditions, XRDynamic 500 offers sample stages and XRD sample holders for every eventuality. Component recognition and automatic alignment of all ambient and non-ambient stages allow fast exchange between different configurations, while a broad range of sample holders caters to every sample type in small or large quantities.
Key features
Large variety of sample stages for flexibility in applications

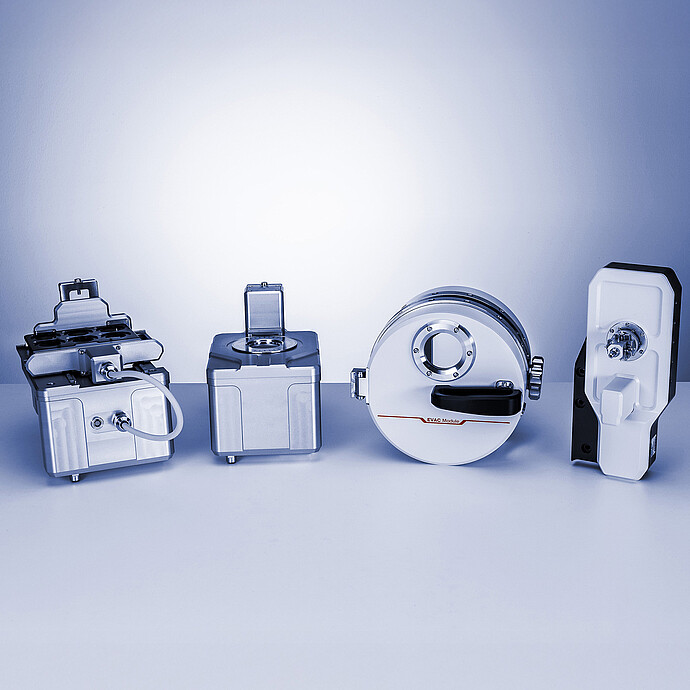

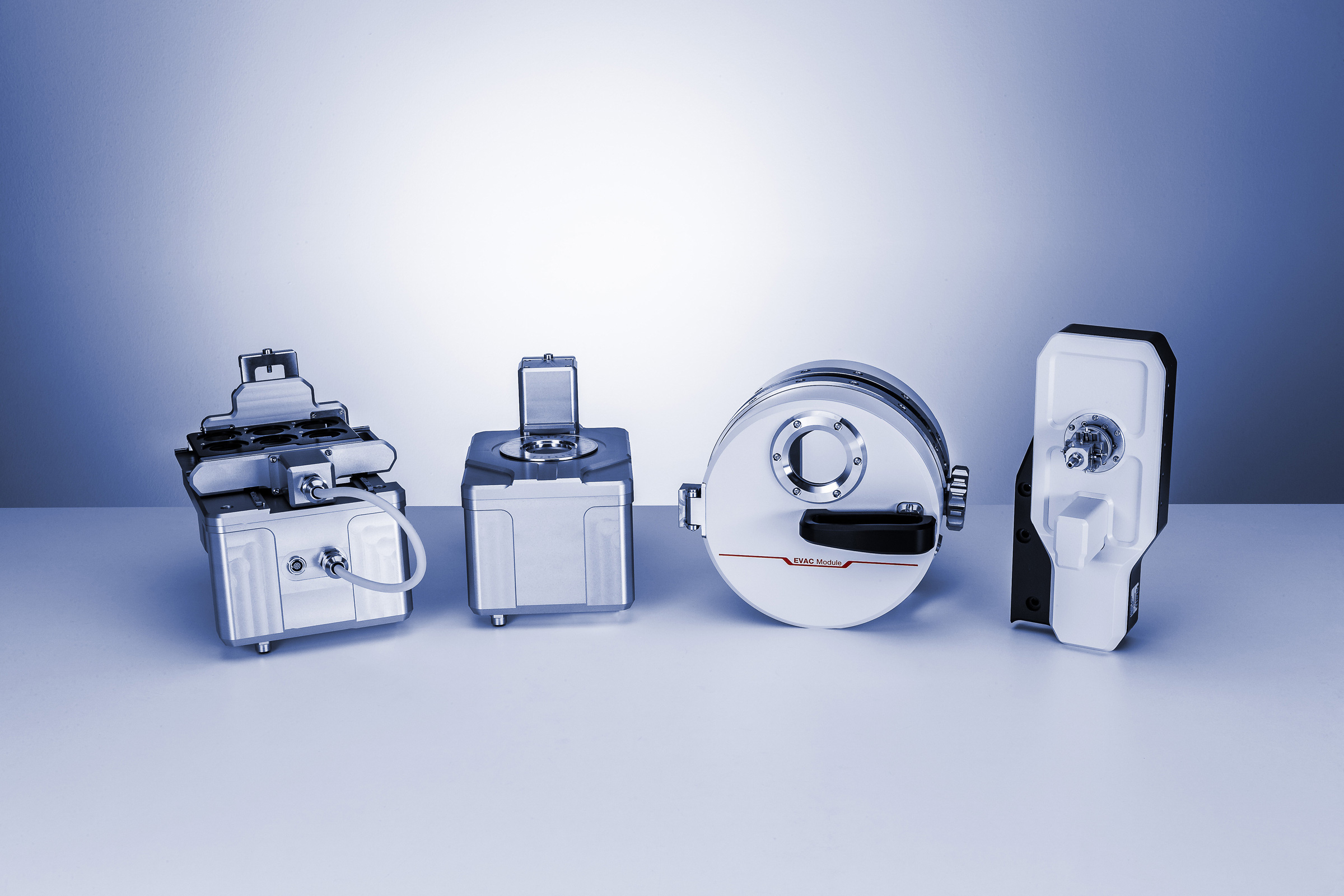

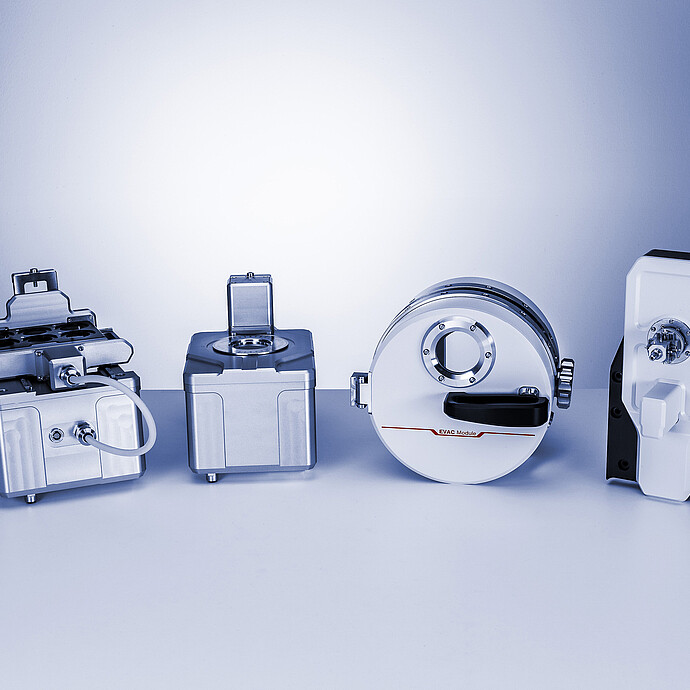

The variety of sample stages available for XRDynamic 500 covers a wide range of sample types and applications, giving you maximum flexibility in your work. Stages can be fitted on the Z stage of XRDynamic 500 for precise sample alignment so that every sample – from simple inorganic powder mixtures to more complex organic materials and even nanomaterials – can be optimally investigated. The ambient sample stage portfolio includes:
- Sample spinner stage for reflection and transmission measurements
- Capillary spinner stage
- XY stage for solid samples or with sample changer options for up to 12 samples
- EVAC Module for SAXS and high-resolution XRD measurements with fully evacuated beam path
The sample stage portfolio is complemented by Anton Paar’s world-leading non-ambient XRD attachments, which offer the widest-ranging non-ambient specifications on the market.
XRD sample holders for operando battery measurements

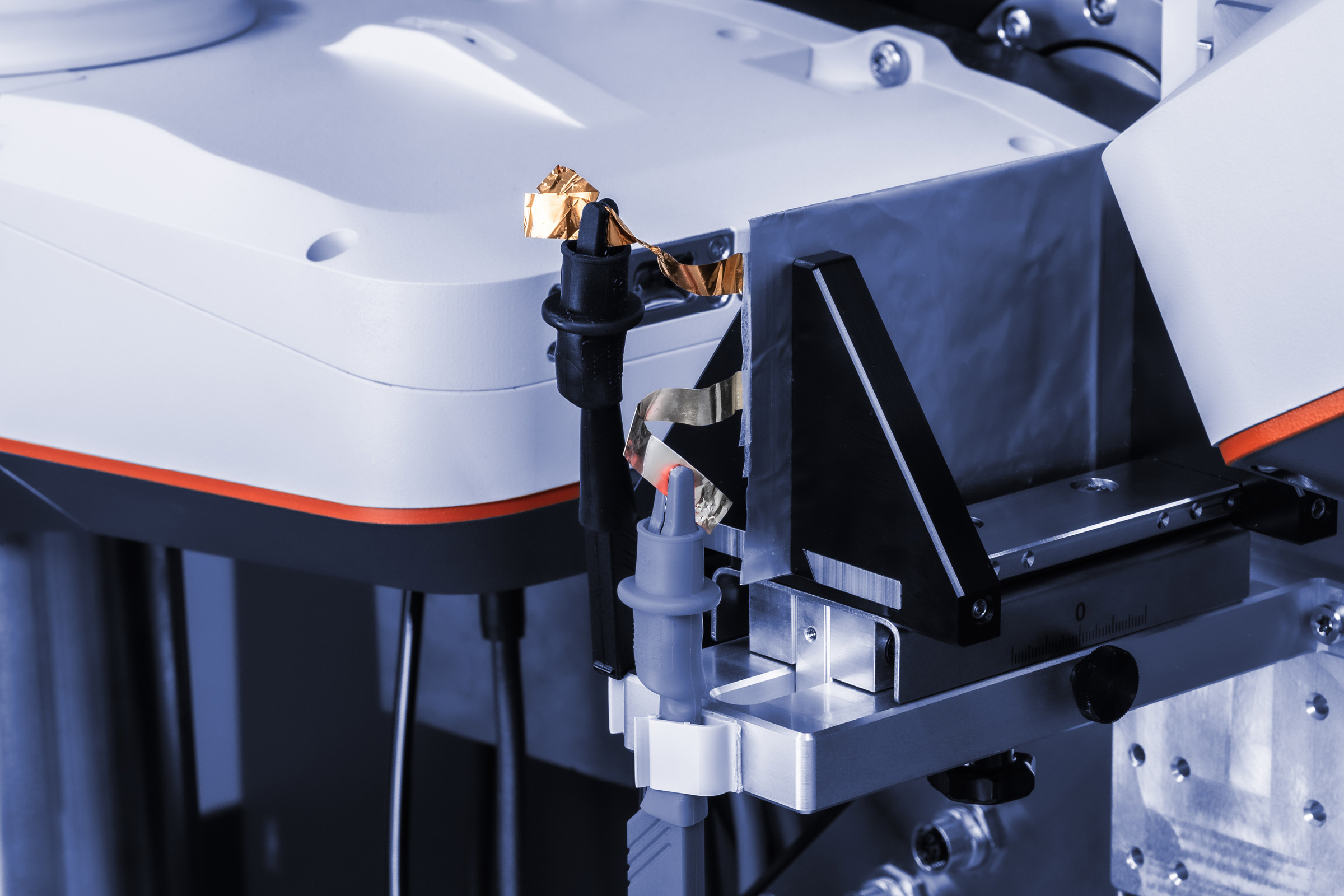

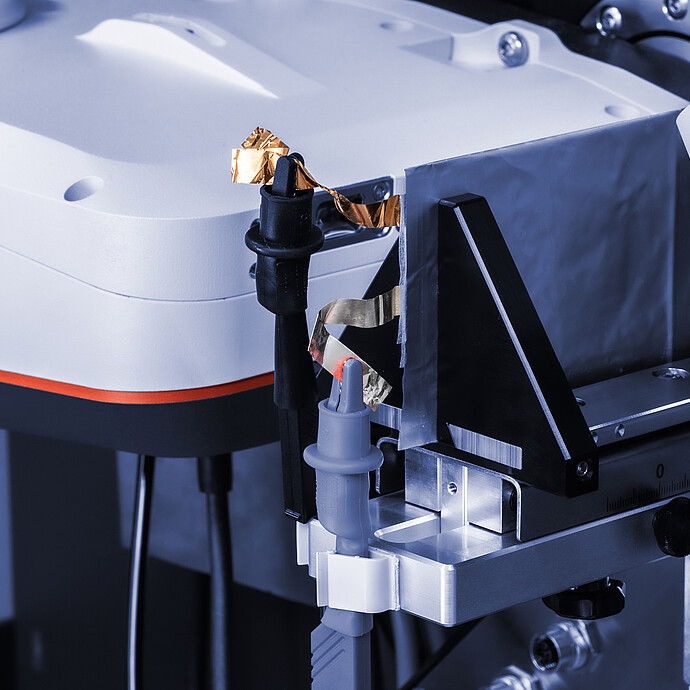

Sample holders for in situ or operando measurements of pouch cells and coin cells in transmission or reflection geometry enable you to perform complex electrochemical measurements while benefitting from the high data quality and high level of automation provided by XRDynamic 500. For operando measurements of electrodes, an electrochemical cell is available with different measurement configurations possible.
Sample holders for any application

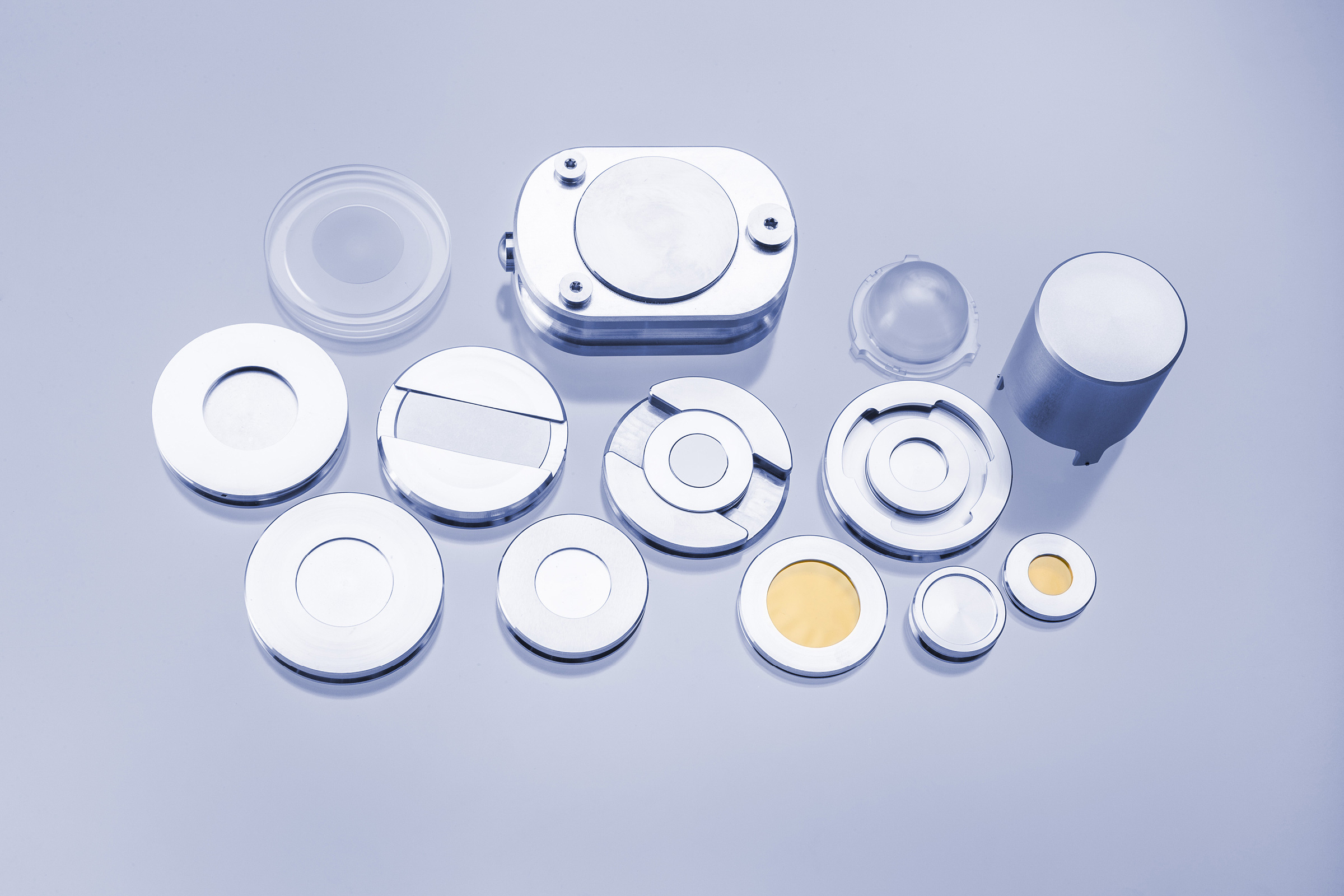

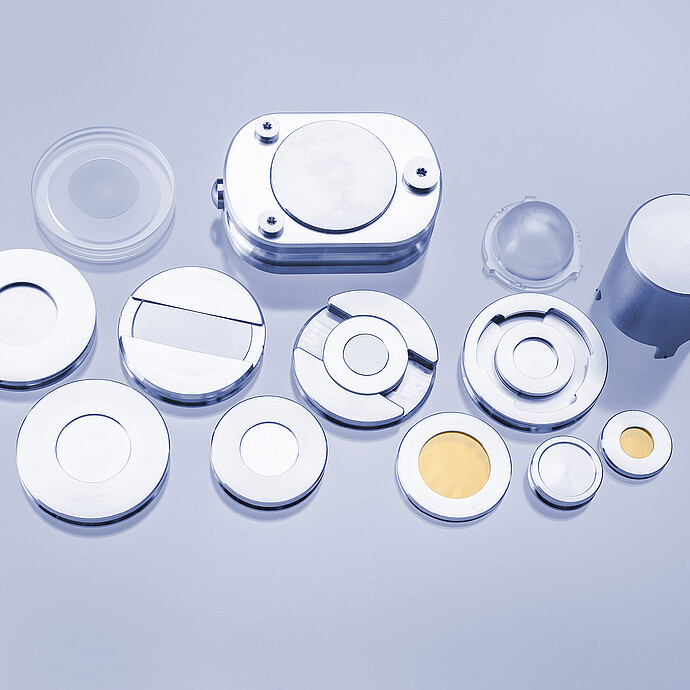

Standard powder sample holders made of stainless steel or PMMA are available with a variety of sample cavity dimensions catering to large or small sample quantities in reflection or transmission. In addition, backloading, zero background, and gas-tight sample holders, as well as XRD sample holders for solids/pellets, can be used depending on the requirements of the sample and the application.
Sample changer options for high-throughput measurements

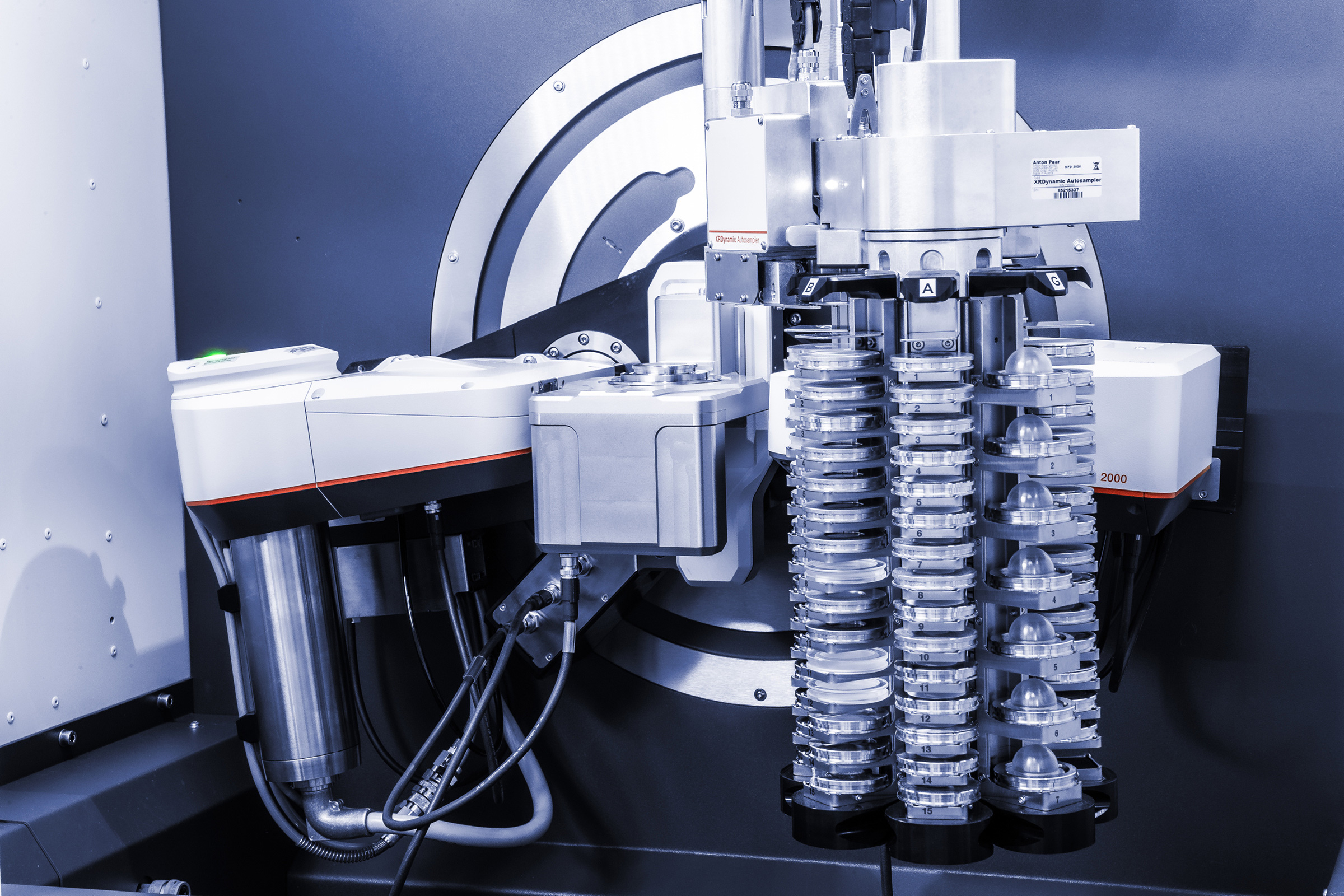

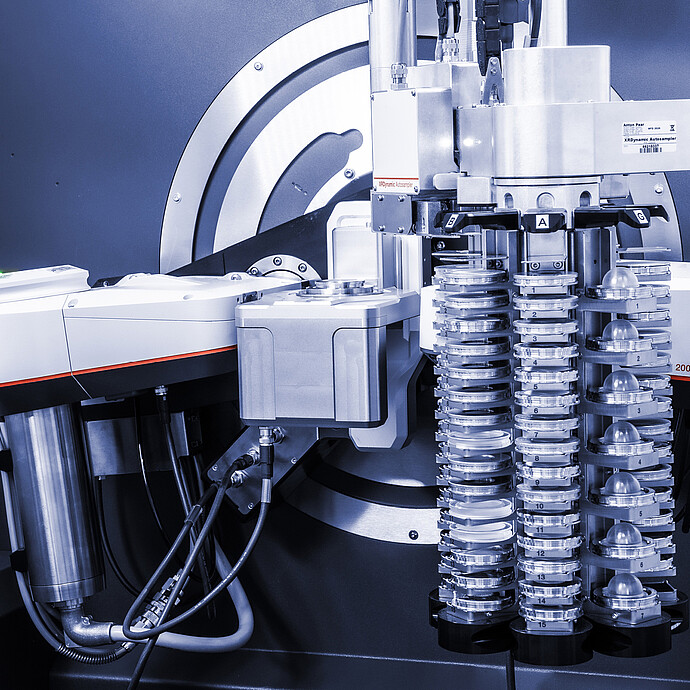

The sample changer option for the XRDynamic 500 XY stage is available with three, six, 12, or 48 sample positions for measurements in reflection or transmission geometry. The XRDynamic Autosampler sets the benchmark with the ability to handle up to 105 samples using industry-standard sample holders.
The available solutions allow high-throughput analysis and, in combination with the automated optics of XRDynamic 500, measurements with different instrument configurations and on different sample types – performed automatically without any user interaction.
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
E-Book - Field Guide to Food and Feed Testing Application Reports
-
Brochure | Mining industry Brochures
-
Brochure | Mining industry (US letter) Brochures
-
XRDynamic 500 | Sample Stages Overview Brochures
Compatible instruments
Similar products
Complementary products
If you do not find the item you require, please contact your Anton Paar sales representative.
BACK LOADING SAMPLE HOLDER (25 ID, 2.5 SD)
Back loading sample holder for XRD studies in reflection geometry with the following specifications:
- 51.5 mm outer diameter
- 25 mm inner diameter
- 2.5 mm sample depth
- made of stainless steel
BACK LOADING SAMPLE HOLDER (35 ID, 2.5 SD)
Back loading sample holder for XRD studies in reflection geometry with the following specifications:
- 51.5 mm outer diameter
- 35 mm inner diameter
- 2.5 mm sample depth
- made of stainless steel
BACK LOADING SAMPLE HOLDER (15 ID, 2.5 SD)
Back loading sample holder for XRD studies in reflection geometry with the following specifications:
- 51.5 mm outer diameter
- 15 mm inner diameter
- 2.5 mm sample depth
- made of stainless steel
BACK LOADING SAMPLE HOLDER (25 ID, 1 SD)
Back loading sample holder for XRD studies in reflection geometry with the following specifications:
- 51.5 mm outer diameter
- 25 mm inner diameter
- 1 mm sample depth
- made of stainless steel
BACK LOADING SAMPLE HOLDER (15 ID, 1 SD)
Back loading sample holder for XRD studies in reflection geometry with the following specifications:
- 51.5 mm outer diameter
- 15 mm inner diameter
- 1 mm sample depth
- made of stainless steel
SPRING SAMPLE HOLDER (15 ID)
Spring sample holder for XRD studies of solid samples in reflection geometry (15 mm inner diameter, sample thickness up to 5 mm, made of stainless steel).
TRANSMISSION SAMPLE HOLDER
Sample holder for XRD studies in transmission geometry with the following specifications:
- 51.5 mm outer diameter
- 15 mm sample opening
- X-ray window made of Kapton
- made of stainless steel Including:
- Transmission sample holder
- Set of spare Kapton window foils
TRANSMISSION SAMPLE HOLDER FOR XY-12 STAGE
Sample holder for XRD studies in transmission geometry to be used with the XY stage and either adapter plate for 12 samples. The sample holder has the following specifications:
- 25 mm outer diameter
- 12 mm inner diameter
- X-ray window made of Kapton (including spares)
- Made of stainless steel
TRANSMISSION SAMPLE HOLDER FOR XY-6 STAGE
Sample holder for XRD studies in transmission geometry to be used with the XY stage and either adapter plate for 6 samples. The sample holder has the following specifications:
- 40 mm outer diameter
- 20 mm inner diameter
- X-ray window made of Kapton (including spares)
- Made of stainless steel
STANDARD SAMPLE HOLDERS (15 ID, 2.5 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (15 mm inner diameter, 2.5 mm sample depth, made of stainless steel).
STANDARD SAMPLE HOLDERS (25 ID, 2.5 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (25 mm inner diameter, 2.5 mm sample depth, made of stainless steel).
STANDARD SAMPLE HOLDERS (35 ID, 2.5 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (35 mm inner diameter, 2.5 mm sample depth, made of stainless steel).
STANDARD SAMPLE HOLDERS (15 ID, 1 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (15 mm inner diameter, 1 mm sample depth, made of stainless steel).
STANDARD SAMPLE HOLDERS (25 ID, 1 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (25 mm inner diameter, 1 mm sample depth, made of stainless steel).
STANDARD SAMPLE HOLDERS (35 ID, 1 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (35 mm inner diameter, 1 mm sample depth, made of stainless steel).
STANDARD SAMPLE HOLDERS (PMMA, 15 ID, 2.5 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (15 mm inner diameter, 2.5 mm sample depth, made of PMMA).
STANDARD SAMPLE HOLDERS (PMMA, 25 ID, 2.5 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (25 mm inner diameter, 2.5 mm sample depth, made of PMMA).
STANDARD SAMPLE HOLDERS (PMMA, 35 ID, 2.5 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (35 mm inner diameter, 2.5 mm sample depth, made of PMMA).
STANDARD SAMPLE HOLDERS (PMMA, 15 ID, 1 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (15 mm inner diameter, 1 mm sample depth, made of PMMA).
STANDARD SAMPLE HOLDERS (PMMA, 25 ID, 1 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (25 mm inner diameter, 1 mm sample depth, made of PMMA).
STANDARD SAMPLE HOLDERS (PMMA, 35 ID, 1 SD, 6 pcs)
Set of 6 standard front loading sample holders for XRD studies in reflection geometry (35 mm inner diameter, 1 mm sample depth, made of PMMA).
REFLECTION SAMPLE HOLDERS FOR XY-6 STAGE (2.5 SD, 3 pcs)
Set of 3 front loading sample holders for XRD studies in reflection geometry with the XY stage for 6 samples (20 mm inner diameter, 2.5 mm sample depth, made of stainless steel).
SAMPLE HOLDER (16 ID, 2.5 SD) WITH ZERO BACKGROUND INSERT
Front loading sample holder for XRD studies in reflection geometry with Si(510) zero background insert and three spacers to allow for different sample depths (0.5 mm, 0.2 mm and zero (flat sample holder) with the following specifications:
- 51.5 mm outer diameter
- 16 mm inner diameter
- Made of stainless steel
STEEL SOLID SAMPLE HOLDERS (45 ID, 7.5 SD, 3 pcs)
Set of 3 sample holders for solids to be used for XRD studies in reflection geometry (45 mm inner diameter, 7.5 mm sample depth, made of stainless steel).
QUARTZ FUNNEL CAPILLARY (1 mm, 25 pcs)
Set of 25 quartz funnel capillaries for XRD measurements with the capillary spinner stage. The capillaries have the following specifications:
- 1 mm outer diameter
- 0.98 mm inner diameter
- 80 mm length
QUARTZ FUNNEL CAPILLARY (0.5 mm, 25 pcs)
Set of 25 quartz funnel capillaries for XRD measurements with the capillary spinner stage. The capillaries have the following specifications:
- 0.50 mm outer diameter
- 0.48 mm inner diameter
- 80 mm length
