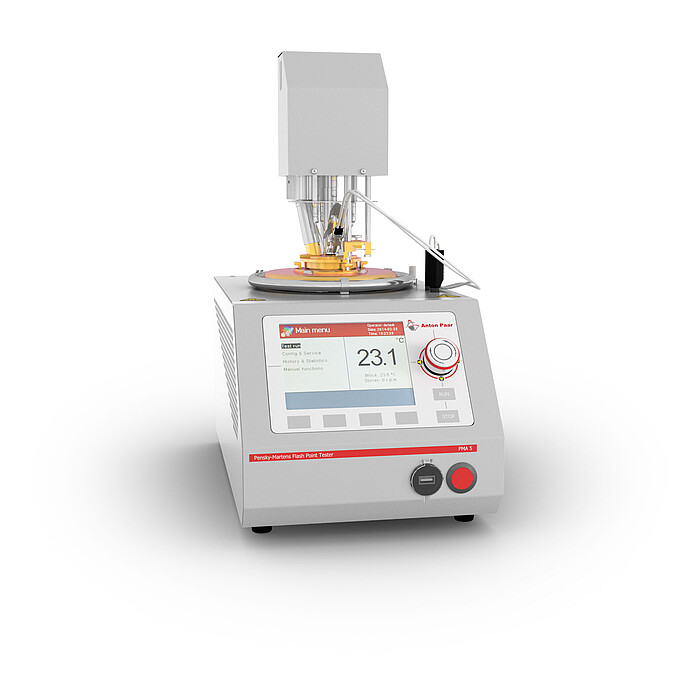

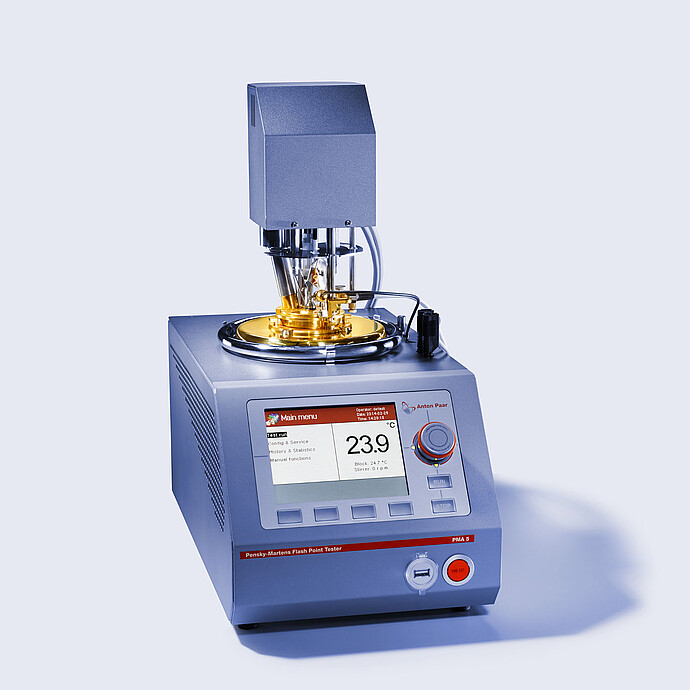

Pensky-Martens flash point tester:
PMA 5
-
-
- 360°
- Automatic Pensky Martens closed-cup flash point tester compliant with ASTM D93, ISO 2719, and more
- Maximum safety: integrated fire-extinguishing system
- Pre-installed standard methods, 15 user-defined programs
Looking for consumables & accessories for this product? Click here
The automatic Pensky-Martens closed-cup tester measures the flash point at the lowest temperature at which the application of an ignition source causes the vapors of a sample to ignite.
PMA 5 is suitable for flammability applications on both biodiesel and biodiesel-blended fuels along with distillate fuels like diesel, heating oil, and kerosene. It is also commonly used for other potentially flammable liquids.
Key features
Benefits at a glance
- Integrated fire-extinguishing system automatically controlled or manually released (requires N2 or CO2 gas)

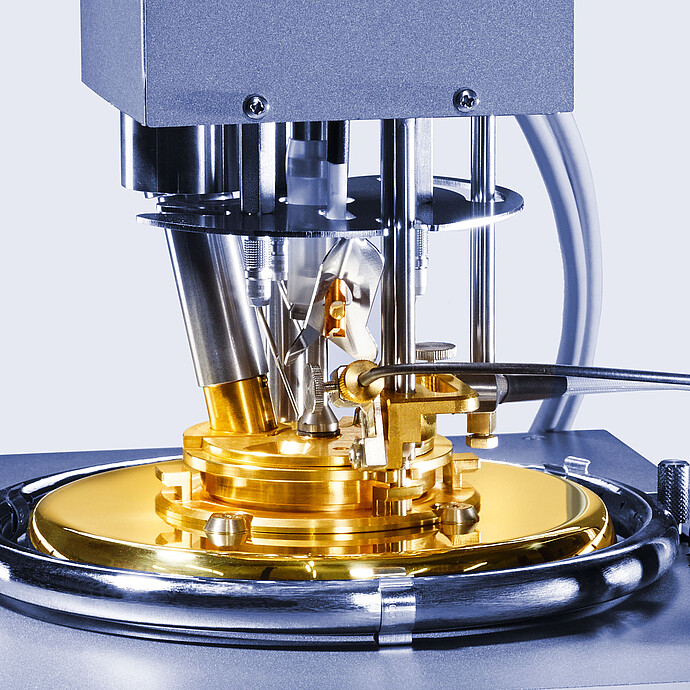

- The One-Twist swivel-around multi-function head guarantees the safe and easy one-hand connection of all sensors and actuators such as the shutter release, stirrer, igniter, and detector contacts.
- A multi-detector combines the flash point detector and the temperature probe in a solid housing with a perfectly adjusted immersion depth
- Memory for 1000 tests, 20 operators, 100 sample names
- Statistical analysis (Min, Max, Mean, Repeatability)
- Data handling via USB stick for import into MS Excel® or to LIMS
Convenient Operation
- Test initiation by pre-installed standard test methods and the option to customize methods in 15 user-defined programs
- Calibration protocol printable
- Menu navigation by jog shuttle system with easy turn-and-push operation and color-coded LED indication for each operation mode
- 5.7” color graphics display shows real-time measurement
- Password protection
Customized user flexibility
- PC-software FPPNet (optional) for convenient remote handling and test data storage
- Stainless steel or small-volume sample cup (optional)
- Stainless steel sample temperature sensor Pt100
- Bar code reader or keyboard (optional)
Technical specifications
| Application range | Up to 405 °C (°C/°F selectable) |
|---|---|
| Ignition | Gas and electric (interchangeable) |
| Heating | According to method or user-defined |
| Stirring | According to method or user-defined |
| Cooling | Built-in forced air (fan) |
| Flash point detection | Thermocouple |
| Sample temperature | Pt100 glass probe |
| Sample temperature calibration | Dynamic calibration against a certified digital thermometer and offset capability with correction table (21 calibration points) |
| Barometric pressure correction | Automatic correction |
| Safety | Overheat protection, automatic shut-off, fire-extinguishing system, password |
| Interfaces | 3x USB, 1x RS232, 1x LAN |
| Gas supply | Test flame: 50 mbar of propane or butane Fire extinguisher: 6 bar to 12 bar of nitrogen or carbon dioxide |
| Power supply | 115 V/230 V, 50 Hz/60 Hz, 1000 W |
| Dimensions | 230 mm x 410 mm x 460 mm (W x D x H) |
| Weight | 14 kg |
| Resolution | 0.1 °C |
Standards
Open all
Close all
ABNT
NBR 14598
ANP
Nº 804
ASTM
D93-A
D93-B
D93-C
IP
34-A
34-B
ISO
2719-A
2719-B
2719-C
JIS
K 2265-3
RANP
3
20
30
40
45
48
50
52
58
69
71
764
804
Anton Paar Certified Service
The Anton Paar quality in service and support:
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
Your choice:
Reset all filters X
-
ASTM D93 - ASTM Proficiency Testing Program for Flash Point of Diesel Fuel Application Reports
-
ASTM D93 - ASTM Proficiency Testing Program for Flash Point of Jet Fuel Application Reports
-
Flash Point Determination of Contaminated Oil Application Reports
-
Flash Point Test of Water-Based Cosmetic Samples Application Reports
-
PMA 5: Comparison Between Standard Cup and Mini-Cup Application Reports
-
Datasheet: PMA 5 Brochures
-
Tank Terminals Overview Brochure Brochures
-
Reference Guide: PMA 5 Manuals
-
Firmware update - PMA 5 (Version 1.20.1) Software and Firmware
See more
Consumables & Accessories
Consumables & Accessories
Not all items are purchasable online in specific countries.
To find out if you can purchase online from your location, check the online availability below.
Not all items are available for purchase online.
If you do not find the item you require, please contact your Anton Paar sales representative.
Online price only
| excl.incl. 0VAT
TONGS FOR TEST INSERTS
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 107218
Product details
Tongs for the safe handling of test cups without handle
STOPPER, BRASS (Ø 18 mm)
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 107219
Product details
Stopper to close the multi-detector opening in the lid
DRIP PANS, 20 mL, ALUMINUM, PACK OF 10
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 107266
Product details
Drip pans made of aluminum. 10 pieces.
DRAFT SHIELD 5
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 146709
Product details
Transparent shield to protect the gas flame from drafts
MULTI-DETECTOR 2, SHORT METAL PT100 (PMA)
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 164702
Product details
Multi-detector with P100 temperature sensor made of stainless steel. Short version, suitable for mini-cups only.
LID 2, BRASS (PMA)
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 175213
Product details
Lid with stirrer
TEST INSERT (CUP AND LID), BRASS, STANDARD VOLUME (PMA)
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 107205
Product details
Standard Pensky-Martens test insert. The set consists of:
- 1 standard test cup made of brass (P/N 107213)
- 1 lid complete with stirrer (P/N 175213)
- 1 standard test cup made of brass (P/N 107213)
- 1 lid complete with stirrer (P/N 175213)
MULTI-DETECTOR 2, METAL PT100 (PMA)
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 164701
Product details
Multi-detector with Pt100 temperature sensor made of stainless steel
MULTI-DETECTOR 2, GLASS PT100 (PMA)
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 164390
Product details
Multi-detector with Pt100 temperature sensor made of glass
CALIBRATION SET WITH DIGITAL T. PM 4, PMA 5
Delivery time:
%1$s – %2$s working days
%1$s – %2$s weeks
%1$s – %2$s months
Part number: 189662
Product details
Calibration set with certified digital thermometer. Set for the on-site calibration of the sample temperature sensor. The Pt100 temperature sensor is dynamically calibrated against a certified digital temperature measuring device. The set consists of:
- 1 calibration lid (P/N 107211)
- 1 digital thermometer GMH with temperature sensor GTF (official certificate included) (P/N 189255)
- 1 Pt100 collar and set screw (P/N -)
- 1 calibration lid (P/N 107211)
- 1 digital thermometer GMH with temperature sensor GTF (official certificate included) (P/N 189255)
- 1 Pt100 collar and set screw (P/N -)
