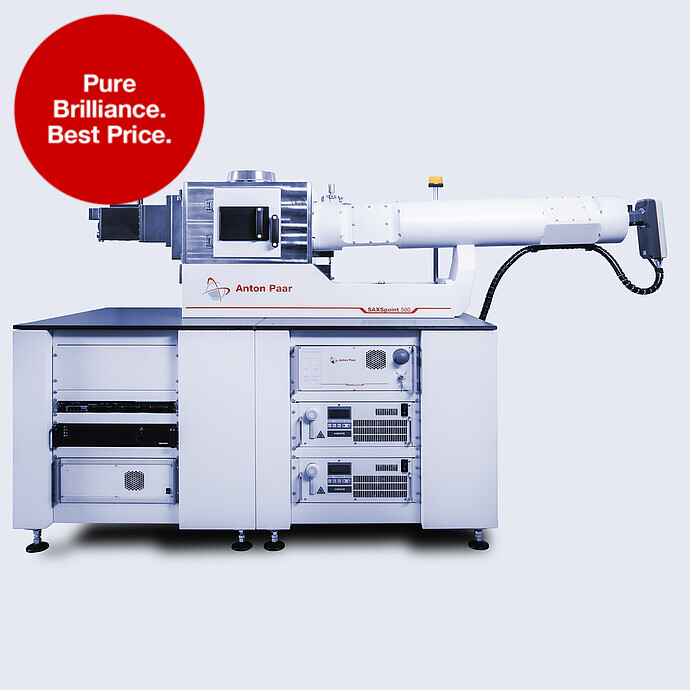

SAXS/WAXS System:
SAXSpoint 500
-
-
-
- +4
- Brilliant results, thanks to best-in-class beam delivery system
- Investigate porosity, orientation, size, shape, structure, crystallinity of nanostructures
- Accelerate analysis and ensure quality with error-eliminating automation
- Obtain useful results thanks to powerful analysis software
- Benefit from a global support network and a three-year warranty
SAXSpoint 500 empowers you to take on difficult samples and analyze structures of up to 300 nm thanks to innovative X-ray technology and a best-in-class beam delivery system. Create high-quality 1D and 2D SAXS data thanks to automation of routine tasks with SAXSdrive™ and SAXSanalysis™ software, and switch effortlessly between samples. And remember: users have access to a global support network whenever and wherever they need it.
Key features
2D SAXS: Pure brilliance
Handle your samples with the help of the best-in-class beam delivery system. Thanks to a brilliant X-ray beam with the highest spectral purity (>99.9 % Cu Kα) and scatterless beam collimation, users are guaranteed synchrotron-like 1D and 2D SAXS data quality (including SAXS/WAXS/GISAXS) with minimum experimental effort and within the shortest exposure times. This SAXS system, with its brilliant setup and industry-leading optical system, enables the resolution of structures up to 300 nm, at the most compact system size (2.7 m x 0.9 m).
Flexibility for your experiments
Customize your system to tackle various samples with a wide range of stages tailored specifically for SAXS applications. Analyze almost any nanostructured material, and switch between different sample stages seamlessly with automatically aligned components. The range of stages includes the TCStage for temperature-controlled analysis and the GISAXS stage for grazing-incident analysis, amongst others.
Accelerate your processes with automation
With all routine tasks fully automated, accelerate your measurement processes, and allow the SAXSdrive software to align all X-ray components and sample stages. You’ll also minimize human error when it comes to complex SAXS experiments.
Automate your sample throughput too with the low-volume autosampler for up to 192 samples, and ensure they maintain their integrity during storage with the temperature-controlled well plate compartment.
Powerful software
The SAXSdrive™ and SAXSanalysis™ software solutions are combinable with automated routine steps, such as temperature scans and time-dependent studies, allowing you to perform experiments while getting on with more important tasks. A free and life-long software update policy ensures that customers benefit from future development.
Analyze your 1D and 2D SAXS data sets using customizable templates, and determine parameters like radius of gyration (Rg), particle size, Porod constant, specific surface, and Kratky plot. Export data into all relevant formats for further analysis. SAXSanalysis ensures you meet industry standards and norms, such as ISO 20804.
Support when you need it
Get the maximum out of your investment with Anton Paar's standard three-year warranty. Benefit from a global support network, guaranteeing maximum uptime. With subsidiaries across the globe, expert advice and on-site support are never far away. Our application experts are always available to support you with your measurement challenges.
Stringent quality management, established procedures (e.g. acceptance tests), and certified service personnel ensure minimum service response time, full service traceability, and top service quality.
Specifications
| X-ray source | Primux 100 micro microfocus X-ray source (Cu, Mo; other target materials on request) |
| X-ray optics and collimation |
|
| Sample stages and autosamplers |
Customized solutions available on request |
| Special features |
|
| Temperature range | -150 °C to +500 °C |
| Temperature accuracy | ±0.1 °C |
| Atmosphere | Vacuum, inert gas, humidity (reactive gases on request) |
| Sample holders |
Customized solutions available on request please contact us |
| Detectors | 2D EIGER2 R and PILATUS4 R series HPC detectors |
| Accessible q-range | 0.02 nm-1 to 43 nm-1 (main detector) |
| Software |
|
| Footprint | 2.7 m x 0.9 m (L x W) |
Standards
ISO
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
An Insight into the Structure of Copolymer Surfactants Application Reports
-
An Insight into the Structure of Surfactants Application Reports
-
Coir Fibers - SWAXS Studies of Structural Changes Induced by Tensile Stress Application Reports
-
Continuous SWAXS Data Studies with the EIGER2 R 500K WAXS Module Application Reports
-
Evaluating GISAXS Data with SAXSanalysis Using the BornAgain Export Application Reports
-
Fast SAXS Studies of Sensitive Biological Samples Application Reports
-
In-line SEC-SAXS of HSA Protein Using a Laboratory SAXS Instrument Application Reports
-
In-situ GISAXS heating experiments on self-assembled Gold nanoparticles Application Reports
-
Protein Mass Determination using Small Angle X-Ray Scattering Application Reports
-
Protein Shape Determination by Small Angle X-Ray Scattering Application Reports
-
Small Angle X-Ray Scattering with Microcrystalline Materials Application Reports
-
Studying the Internal Structure of Carbon Nanotubes with SAXS Application Reports
-
Studying the Internal Structure of Lamellar Systems Application Reports
