Multi-Sample Changer with Rinsing and Drying:
Xsample 5200

  • +1

By watching this video, you're loading content from YouTube, which is a service of Google LLC.

For more information on how Google may use your data, read the Google Privacy Policy.

Customize your cookie settings

  • Up to 35 % faster processing for maximum sample throughput
  • Fully automated filling, rinsing, and drying cycles
  • Rinsing with up to three solvents or two plus air injection
  • Optional 1D/2D barcode scanner ensures reliable sample ID
  • Custom magazine fits your vials for seamless workflow integration
Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Türkiye
TR
United Arab Emirates
EN
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN | VI
If you can't find your country in the list get a quote
Xsample 5200

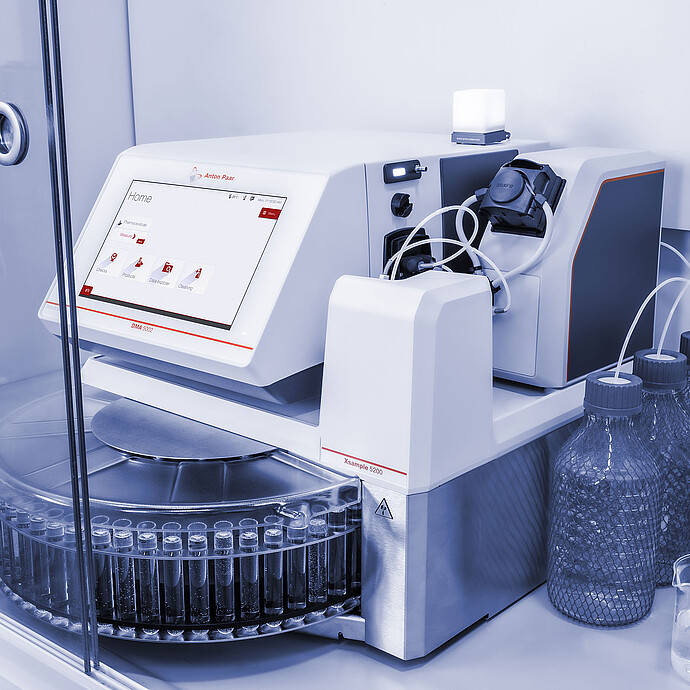

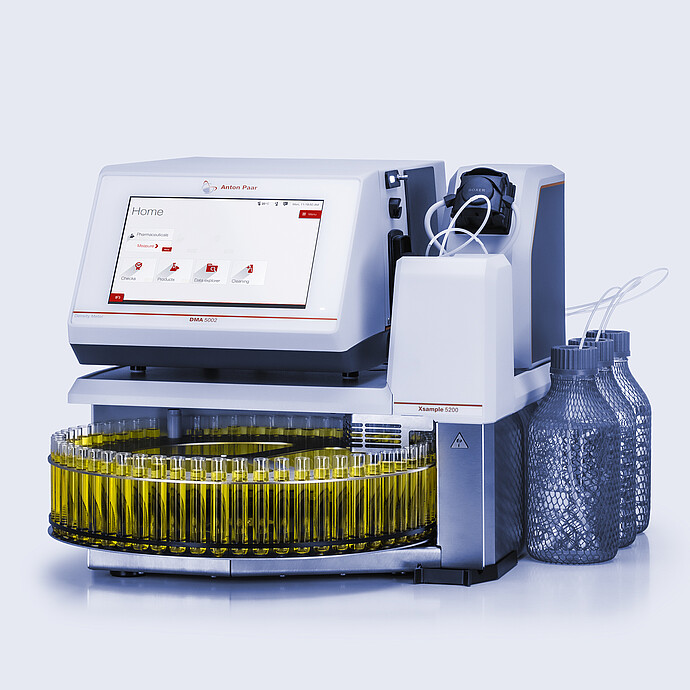

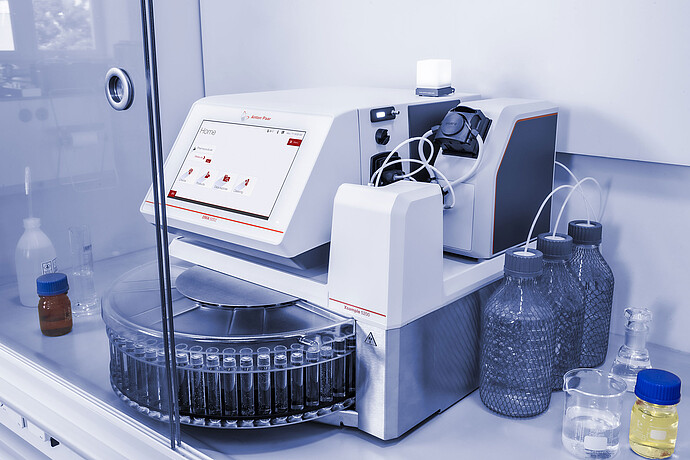

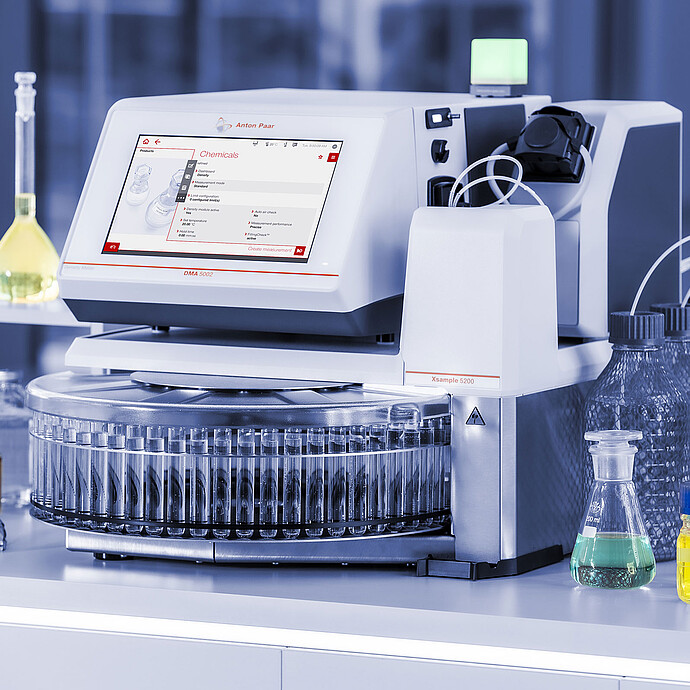

Xsample 5200 is a multi-sample changer with rinsing and drying designed for laboratories that demand maximum throughput, reliability, and precision. With up to 35 % faster processing than comparable systems, it automates every step – from sample identification and filling to rinsing and drying. Intelligent sample recognition, barcode scanning, and customized vial magazines enable reliable, unattended operation even under the most demanding lab conditions

Customized solutions

Multiparameter Measurement System:
Flavor & Fragrance Measurement System

Key features

Up to 35 % faster processing for maximum throughput

Xsample 5200 sets new standards in automation speed and reliability. Optimized workflows and intelligent sample handling make it up to 35 % faster than comparable systems – boosting throughput while ensuring precise, repeatable results for laboratories handling a large number of samples.

Complete automation: Filling, rinsing, and drying

The system supports up to three rinse solvents – or two solvents plus air injection – ensuring thorough cleaning of all wetted parts. Air injection enhances cleaning performance while reducing solvent consumption, and integrated drying automatically completes the process, minimizing sample or solvent carryover. Every measurement starts with a clean, dry system – ready for the next sample in no time.

Intelligent sample handling and simplified operation

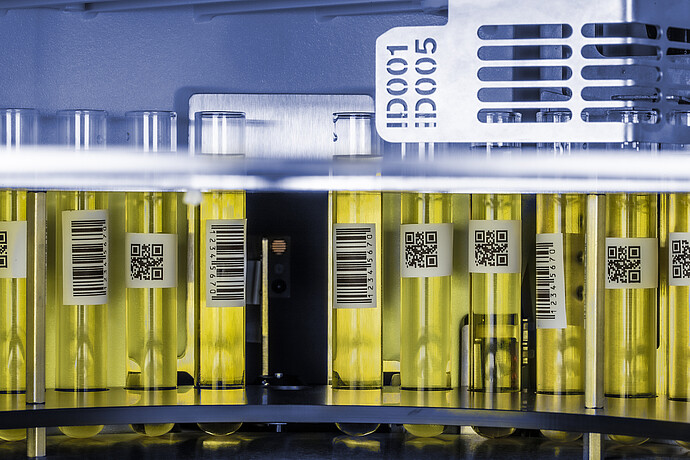

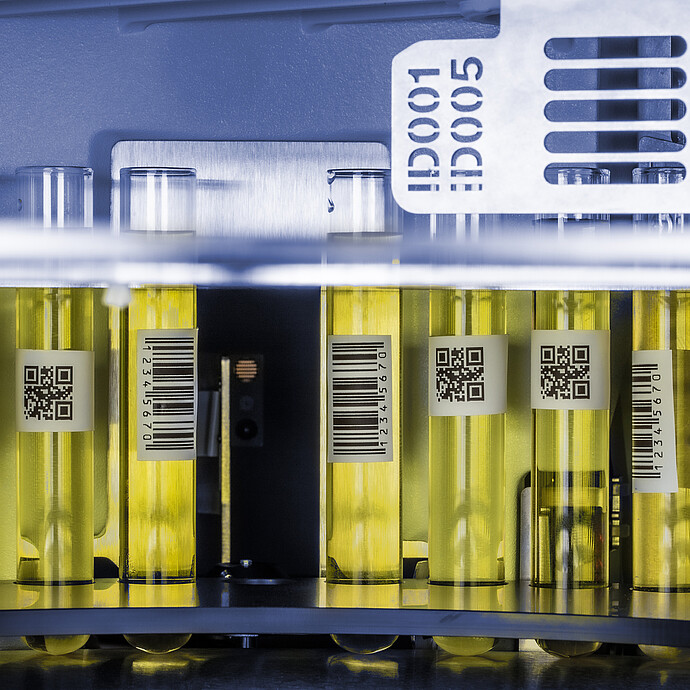

With integrated 1D/2D barcode reading and vial rotation, Xsample 5200 guarantees accurate identification, even if vials are placed off-center. This supports traceable, fully automated workflows for any lab setup. New magazine visualization enables fast, intuitive handling when adding samples, while guided workflows and clear process control deliver reliable, operator-independent operation every time.

Specifications

Sample viscosity rangeUp to 1,000 mPa·s at ambient and measuring temperature
Amount of sample per measurement5 mL (with DMA master instrument)
Typical time of filling, measuring, and cleaning cycle< 2 minutes (assuming the measurement takes 30 seconds)
Filling mode

With peristaltic pump:

  • Suction mode in one direction
  • Suction mode with pulsing
Environmental conditions (EN 61010)Indoor use only
Ambient temperature15 °C to 35 °C (59 °F to 95 °F) permissible operating temperature
Air humidity10 % to 90 % RH, non-condensing
AltitudeMax. 3,000 m (9,800 ft)
Necessary air quality

Class 3 according to ISO 8573-1:

  • Max. particle size: 5 μm
  • Max. pressure dew point: -20 °C (-4 °F)
  • Max. oil content: 1 mg/m3
Compressed air supply (optional)1.8 bar to 2.2 bar (26 psi to 32 psi) relative; typically: 2.0 bar (29 psi) relative
Pollution degree2
Sound pressure level< 70 dB
Overvoltage categoryII
Power supply
  • Supplied by the master instrument
  • AC power supply voltage according to technical data plate at the rear of the master instrument (protective grounding required)
Xsample dimensions excl. master instrument (L x W x H)657 mm x 490 mm x 427 mm (25.9 in x 19.3 in x 16.8 in)
Xsample weight23.7 kg (52.2 lbs)
Weight incl. packaging, excl. master instrument33.5 kg (73.9 lbs)

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
