Temperature Control Solutions for ViscoQC:
Temperature Device
-
-
-
- +3
Model:
- Temperature control of 600 mL beakers
- Budget-friendly solution for precise viscosity measurement
- Space-saving: mountable to ViscoQC stand
- Range: ambient to +100 °C (optional cooling coil with tap water)
Achieve precise, reliable viscosity measurements with Anton Paar's temperature control solutions for the ViscoQC series. The PTD 80, PTD 175, PTD 100 Cone-Plate, and ETD 300 offer integrated, liquid-free temperature control directly managed via the ViscoQC interface. Features like the T-Ready™ function ensure accurate sample temperature before measurement, enhancing repeatability and efficiency. The integrated digital levelling sensors guarantee constant correct alignment of the system, preventing tilt-related stress, for long-term performance. Whether for small sample volumes or high-temperature applications, these devices streamline workflows and deliver consistent results.
Key features

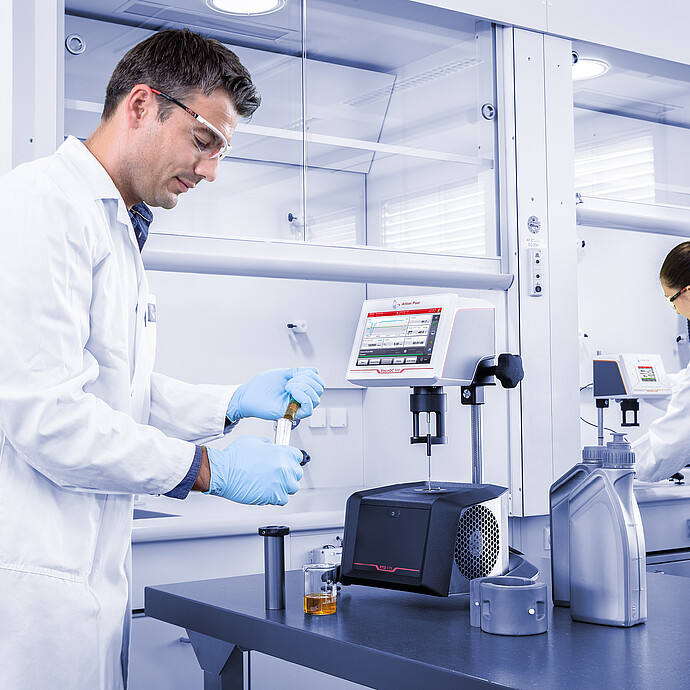

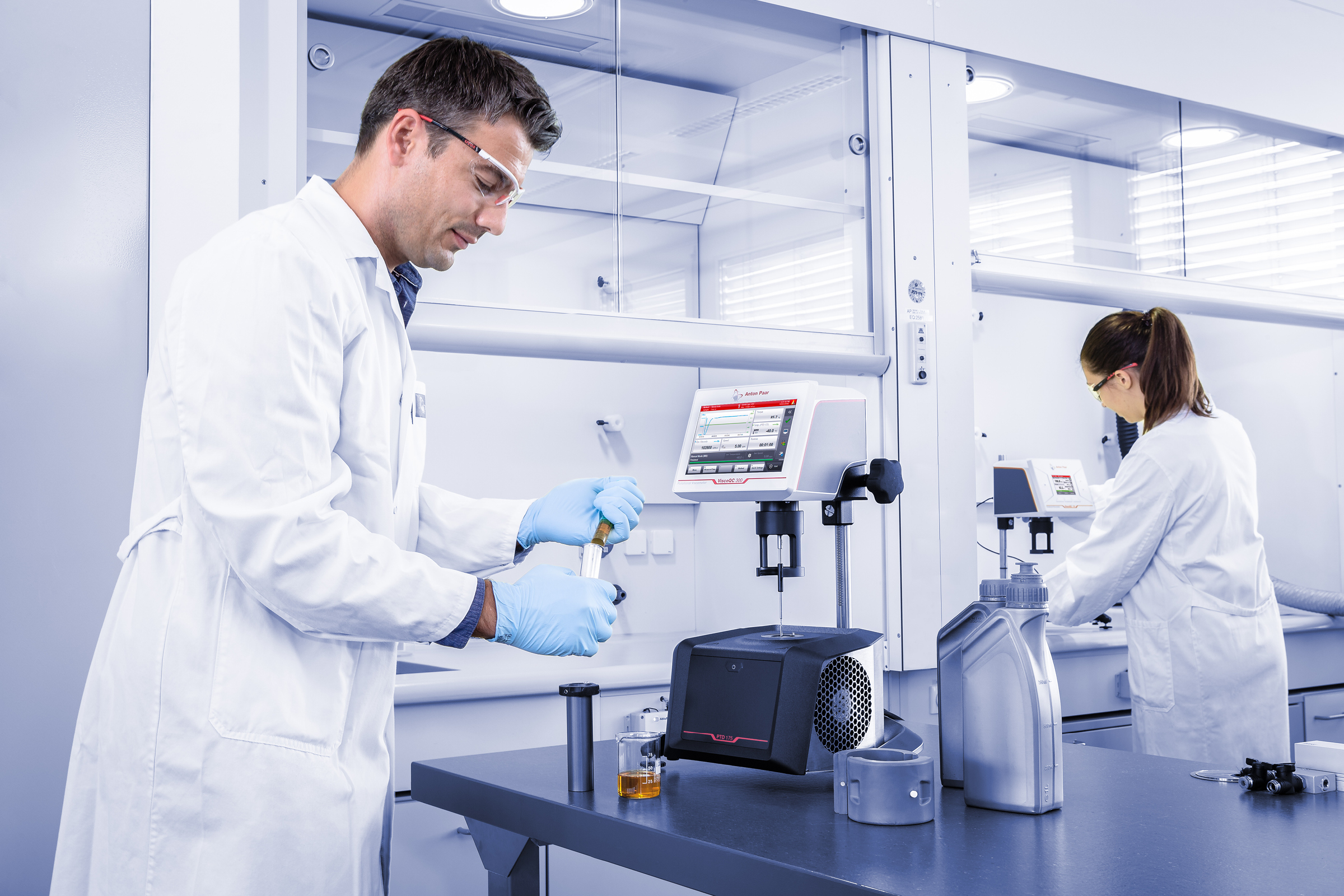

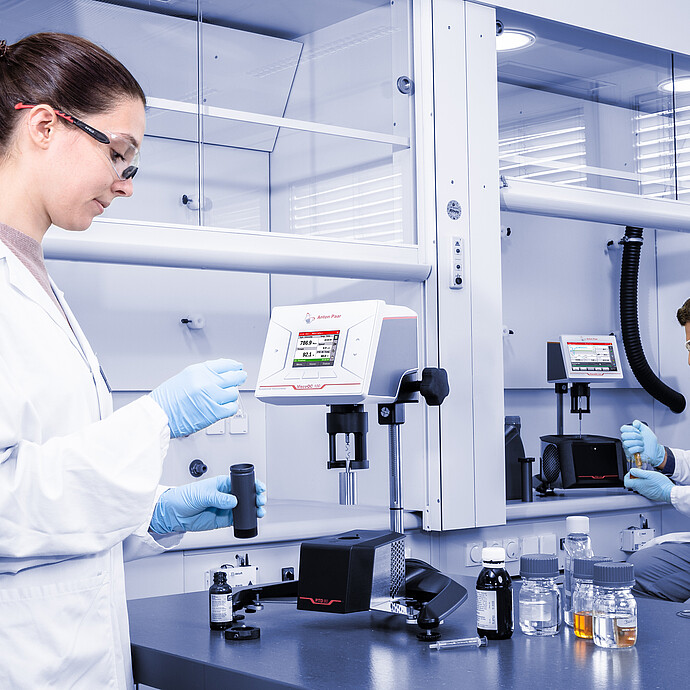

PTD 175 – wide-range, high-performance testing
- Ready to use right out of the box
- Small footprint: saves extra lab space
- Controlled directly via ViscoQC 300 – no separate interface
- Solid-state Peltier: no coolant, less maintenance
- T-Ready™ feature signals sample temperature equilibration
- Highest temperature precision with multipoint calibration
- 90 % less power consumption than typical thermostats

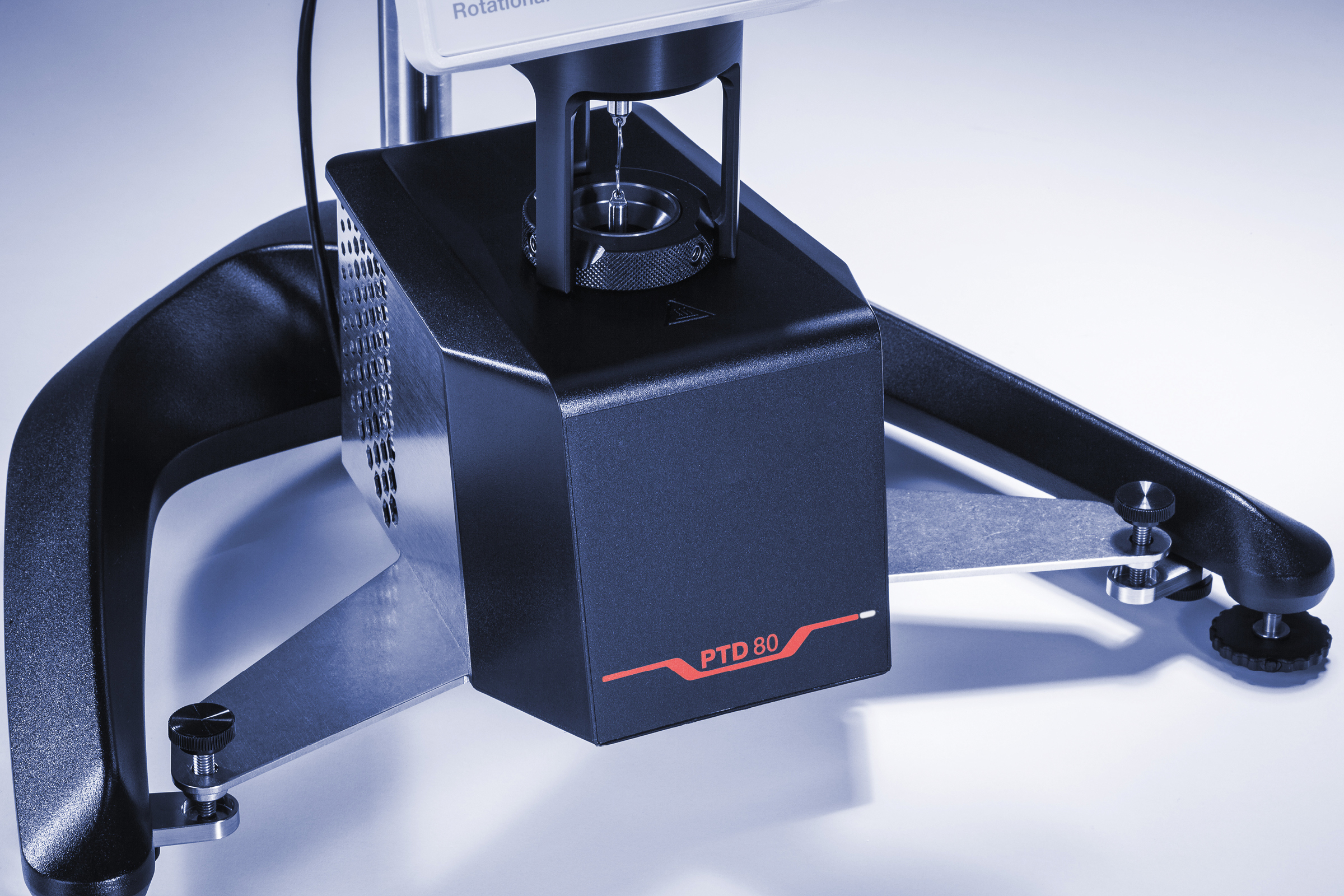

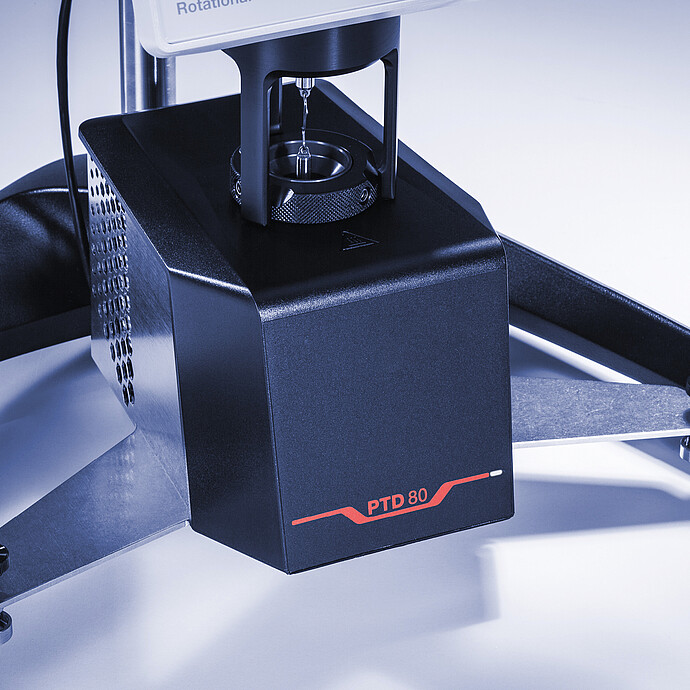

PTD 80 – compact and efficient temperature control
- Ready to use right out of the box
- Small footprint: saves extra lab space
- Eliminates cable clutter: power supplied by ViscoQC
- Air cooling – no external chiller needed
- Seamless temperature control and test method synchronization
- T-Ready™ feature signals sample temperature equilibration
- 90 % less power consumption than typical thermostats

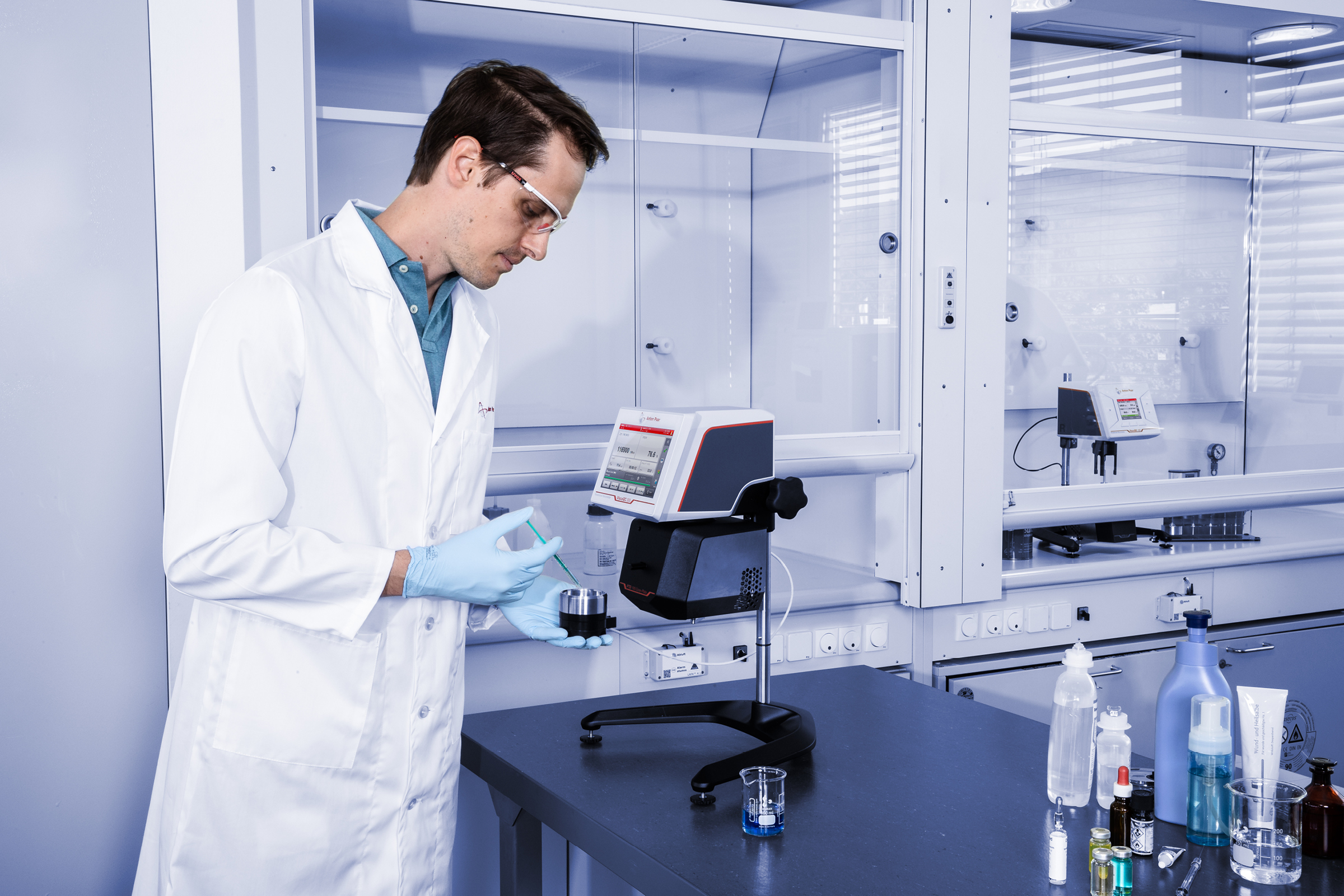

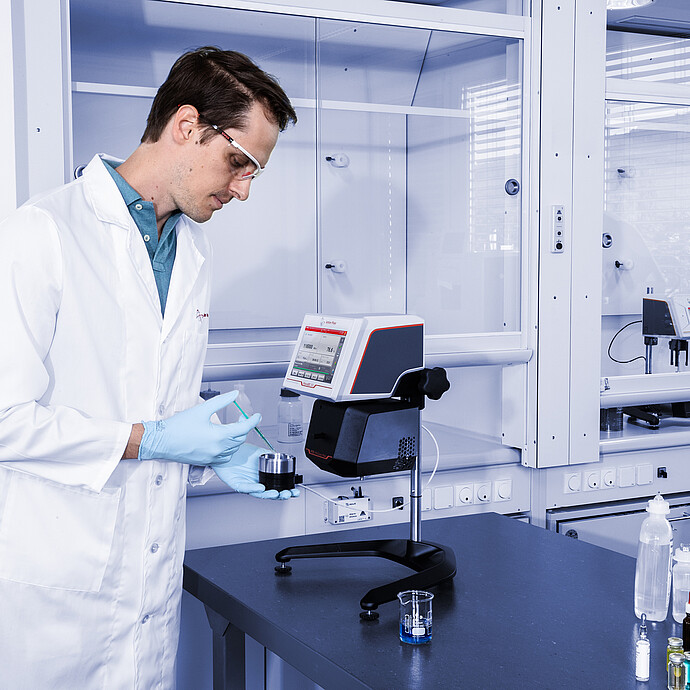

PTD 100 Cone-Plate – for small volumes
- Ready to use right out of the box
- Temperature and measurement control via ViscoQC interface
- Automated gap setting eliminates manual errors
- Continuous gap monitoring prevents inaccurate measurements
- Sensor-ready signals when set temperature reached
- Upgrade ViscoQC 100/300 to cone-plate system anytime

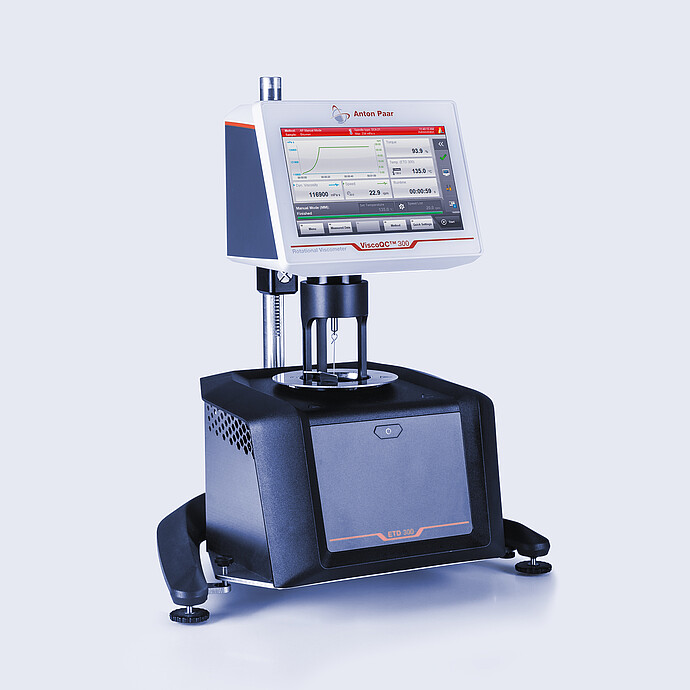

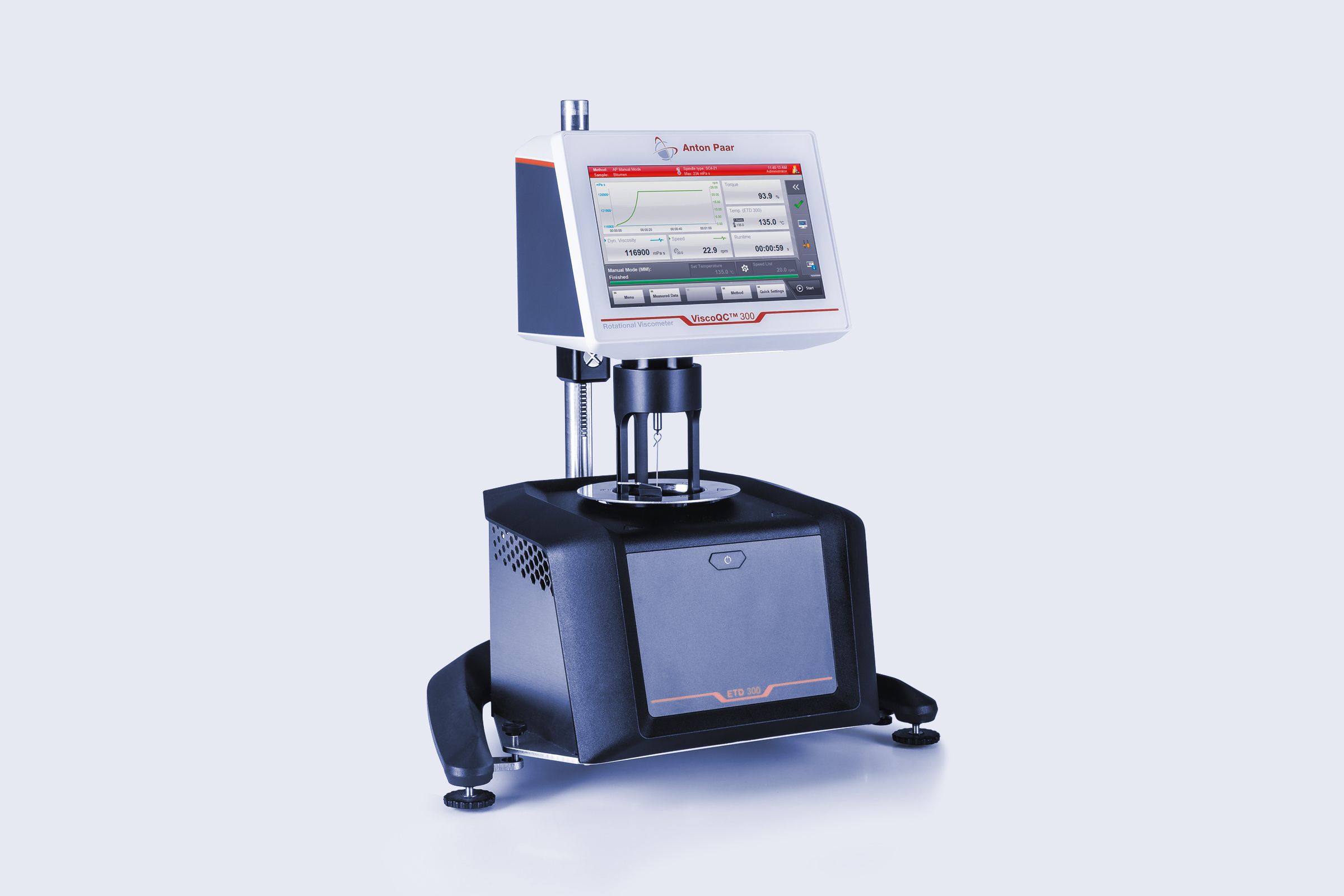

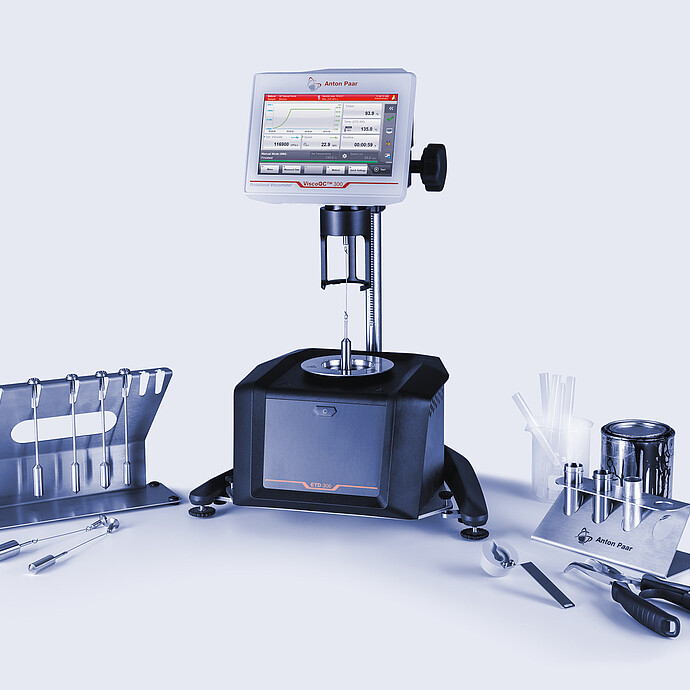

ETD 300 – for high-temperature tests
- Ready to use right out of the box
- Temperature and measurement control via ViscoQC interface
- Fully automated ASTM D4402 method with V-Curve
- Calibration templates with up to 19 temperatures
- Automatic temperature calibration (requires MKT 10 or 50)
- T-Ready™ feature signals sample temperature equilibration
- Magnetic coupling for safe handling at high temperatures

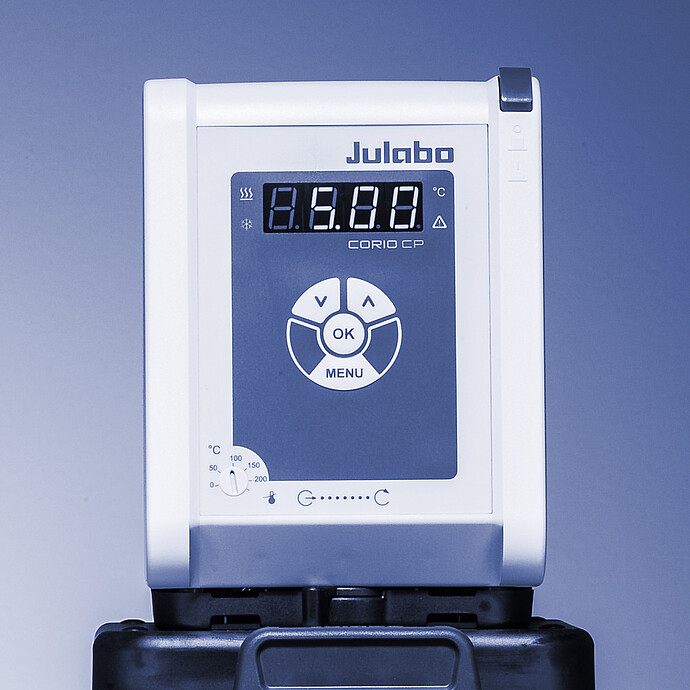

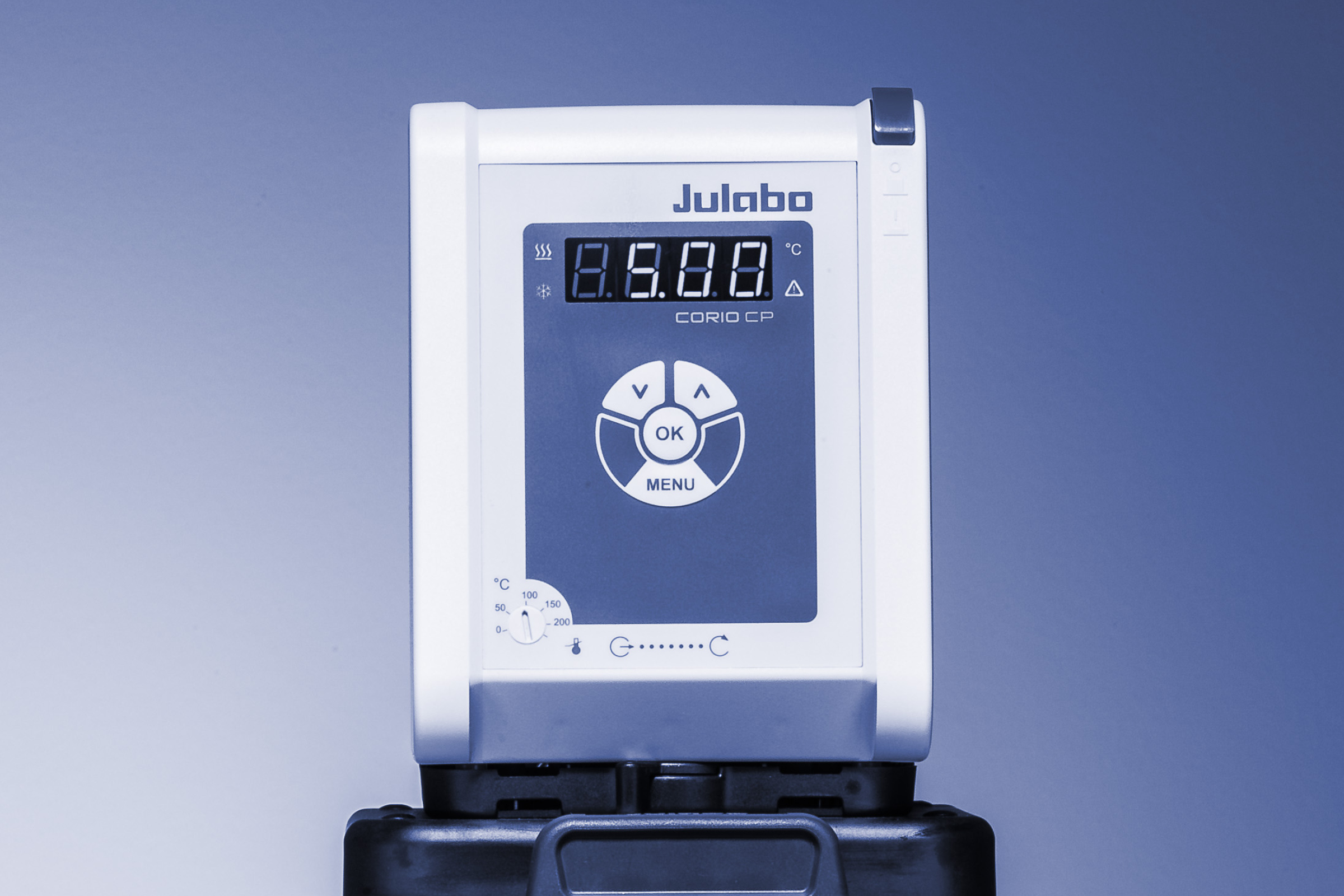

Water bath Julabo Corio for ViscoQC 100/300
- Small footprint: saves extra lab space
- Temperature control of 600 mL beakers
- Optional sensor monitors sample temperature
- Optional tap water coil for use below ambient temperature
Specifications
| PTD 175 | PTD 80 | PTD 100 Cone-Plate | ETD 300 | Water bath | |
| Temperature range [°C] | -45 to +175 | +15 to +80 | 0 to +100 | +25 to +300 | Ambient to +100 |
| Supported viscometer(s) | ViscoQC 300 | ViscoQC 100/300 | ViscoQC 100/300 | ViscoQC 100/300 | ViscoQC 100/300 |
| Supported measuring systems | Concentric cylinders (DIN), double-gap, ultra-low viscosity adapter, small sample adapter, insulated 4B2, L1D22 | Concentric cylinders (DIN), double-gap, ultra-low viscosity adapter, small sample adapter | Cone-Plate | Small sample adapter, HTDIN81 | L/RH, T-bar, and vane spindles in 600 mL beakers |
| Cooling liquid | No | No | No | No | Yes |
| Thermal management | Active heating & cooling | Active heating & cooling | Active heating & cooling | Active heating | Active heating |
| External power supply | Yes | No | Yes | Yes | Yes |
Standards
Open all
Close all
ASTM
D1986
D2983
D3236
D4402 (for temperatures up to +175 °C)
D4682
D5018 (for temperatures up to +175 °C)
D5133
D6080
D6158
D7110
D8210
DIN
13302 (for temperatures up to +175 °C)
51398
AASHTO
T316 (for temperatures up to +175 °C)
Anton Paar Certified Service
The Anton Paar quality in service and support:
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
Adhesives | Measurement of Hot Melt Adhesives According to ASTM D3236 Application Reports
-
Asphalt, Bitumen | Measurement of bitumen according to ASTM D4402 / AASHTO T316 Application Reports
