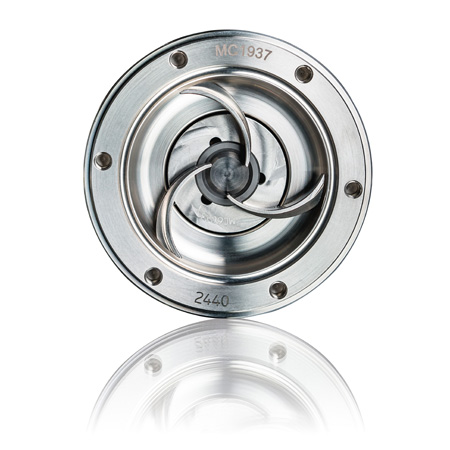

Magnetically coupled centrifugal pump:
Inline Pump 520
- For use with various Anton Paar density sensors
- Easy integration – options for full flow, inline, bypass as well as tank installation
- Flow volume has no effect
The Inline Pump 520 is a sample pump for non-corrosive, non-flammable liquids regardless the flow in the main line. It can be installed inline without a bypass construction and is maintenance-free.
Key features
Simple installation
- Connection with different density transducers
- Installation e.g. in Varivent housing
- Selectable CAN-address
Efficient production
- Regardless the flow in the main line
- Suitable for sirup
Suitable for industrial use
- Robust design
- Maintenance-free
- Optical indicator for status
- Self-diagnosis according to NAMUR NE 107
Specifications
| Technical Data | |
|---|---|
| Type | Magnetically coupled centrifugal pump |
| Drive | Brushless DC motor |
| Operating Conditions | |
| Temperature | Continuous operation -5 to +100°C CIP/SIP-cleaning: max. 30 min. to 120°C |
| Pressure | 0 to max. 16 bar (max. 232 psi) |
| Medium | Non-corrosive, non-flammable liquids |
Rotation speed (at water) | 500 to 4000 rpm; Factory setting 3500 rpm |
| Ambient conditions | |
| Temperature range - ambient | -20 to +40°C |
| Degree of protection | IP67 |
| Electrical connections | |
| Power supply | SELV DC 24 V (DC 20 - 30 V) |
| Current consumption | max. 6 A |
| Power consumption | max. 180 W |
| Electrical connection | Screw-type terminal |
| Cable (not supplied) | Recommended cable type: LiYCY; Diameter 4.5 to 10 mm Insulation resistance/test voltage 4000Veff, 50/60 Hz |
| Housing material, dimensions and weight | |
| Housing material | Stainless steel W. Nr. 1.4301 / 1.4305 / 1.4404** / 1.4571** |
| Wetted material | Stainless stell W. Nr 1.4404* / 1.4571*, EPDM**, FPM**, SSiC, Tungsten carbide (WC) |
| Dimensions | 293 x 70 x 70 (without connection kit) |
| Weights | 3 kg (without connection kit) |
* certified raw materials | |
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
