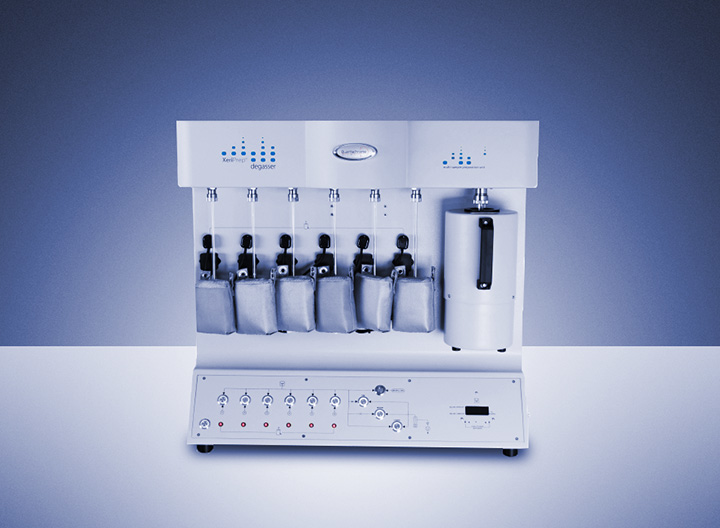

Vacuum Degasser:
XeriPrep
- 6 independent stations provide optimal flexibility for sample preparation
- Software-controlled heating profiles
- Turbo pump optional for high-vacuum applications
XeriPrep is the ideal degasser for R&D, commercial labs, and multi-user laboratories where flexibility in sample preparation is required to meet high-throughput workflows for different kinds of samples. Each of the six degassing ports offers an independent temperature zone, controlled via the included PC software, PrepWin, allowing for up to 20 heat ramp and soak steps to be automatically programmed. This makes it easy to meet the special sample preparation needs of highly temperature-sensitive samples. The built-in cold trap and optional turbo vacuum pump maximizes vacuum performance and ensures rapid and complete sample preparation of all types of materials.
Technical specifications
| Sample stations | 6 (expandable to 12) |
| Degassing methods | Vacuum |
| Cold trap | Yes |
| Max. temperature | 350 °C (standard) 450 °C (optional) |
| Temperature control | yes (in the PC software) |
| Evacuation rate | Coarse, medium, and fine |
| Dimensions (H x W x D) | 74 cm x 77 cm x 40 cm (29 in x 30.5 in x 15.8 in) |
| Weight | 72 kg (159 lbs) |
| Vacuum pump | Included |
| Turbo pump | Optional |
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
Catalyst Characterization - From Fresh to Spent Application Reports
-
NEW HORIZONS IN PARTICLE ANALYSIS Brochures
-
XeriPrep Brochure Brochures
Consumables
Consumables
To find out if you can purchase online from your location, check the online availability below.
If you do not find the item you require, please contact your Anton Paar sales representative.
COLD TRAP DEWAR ASSEMBLY
MANTLE, MALE INLET, 1 PHONO
SAMPLE CELL ADAPTOR, 6 mm
SAMPLE CELL ADAPTOR, 9 mm
SAMPLE CELL ADAPTOR, 12 mm
Sample Funnel For 6/9/12 mm 6mm Opening
DOWEL PIN, 12 mm
DOWEL PIN, 6 mm
COLD TRAP TUBE
DOWEL PIN, 9 mm
VACUUM PUMP OIL, PFEIFFER, 1 L
O-RING, BUNA 010, BLACK, PACK OF 2
O-RING, BUNA 015, BLACK, PACK OF 2
O-RING, BUNA 12 mm, BLACK, PACK OF 2
O-RING, BUNA 20 mm, BLACK, PACK OF 2
