External Vacuum and Flow Degassing:
FloVac
-
-
-
- +5
- Degas six samples at a time while six others cool
- Heat samples from ambient to 425 °C
- Keep the heater ON for a faster turnaround time
- Perform vacuum and flow degassing
- Set up heating and cooling rates with ease

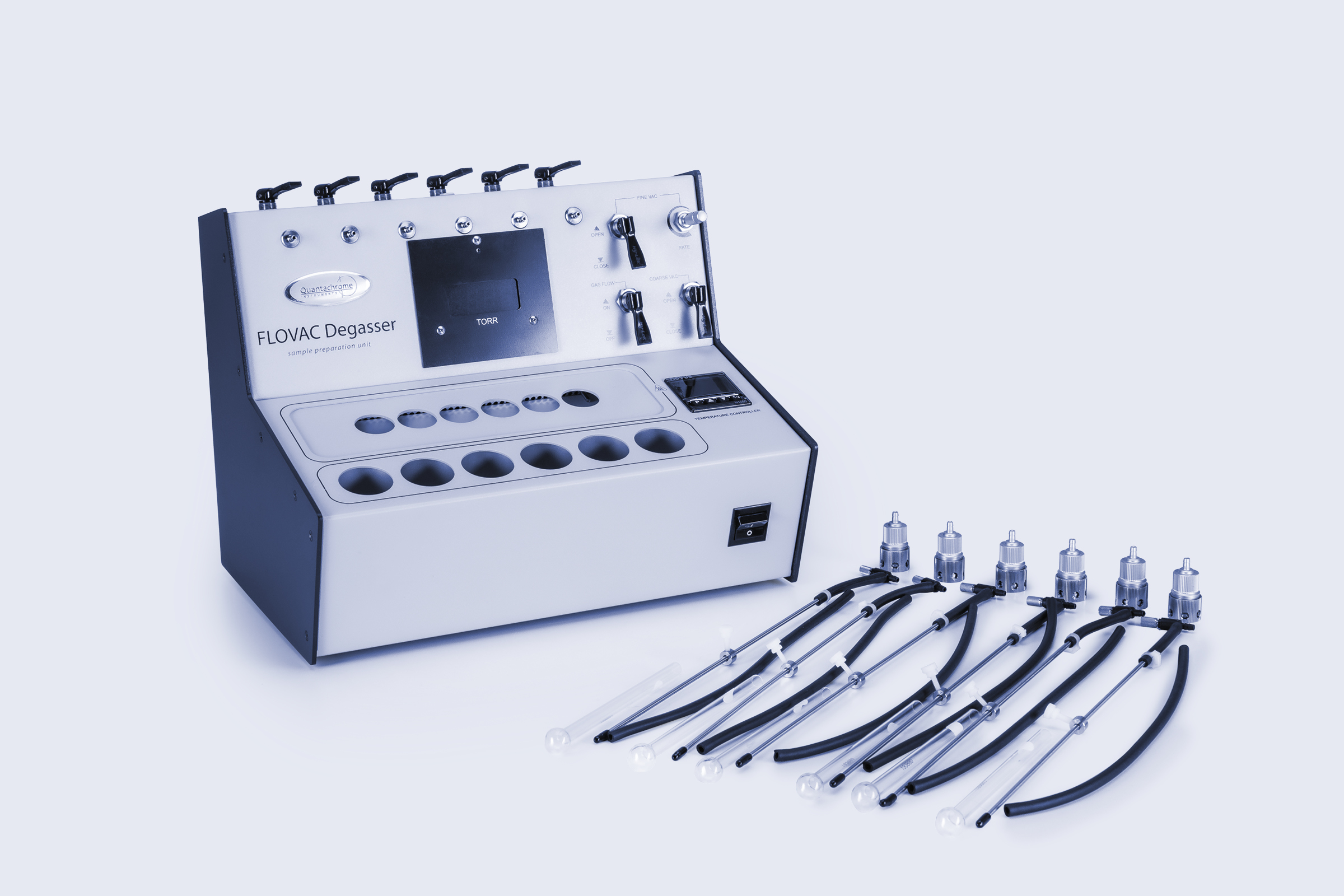

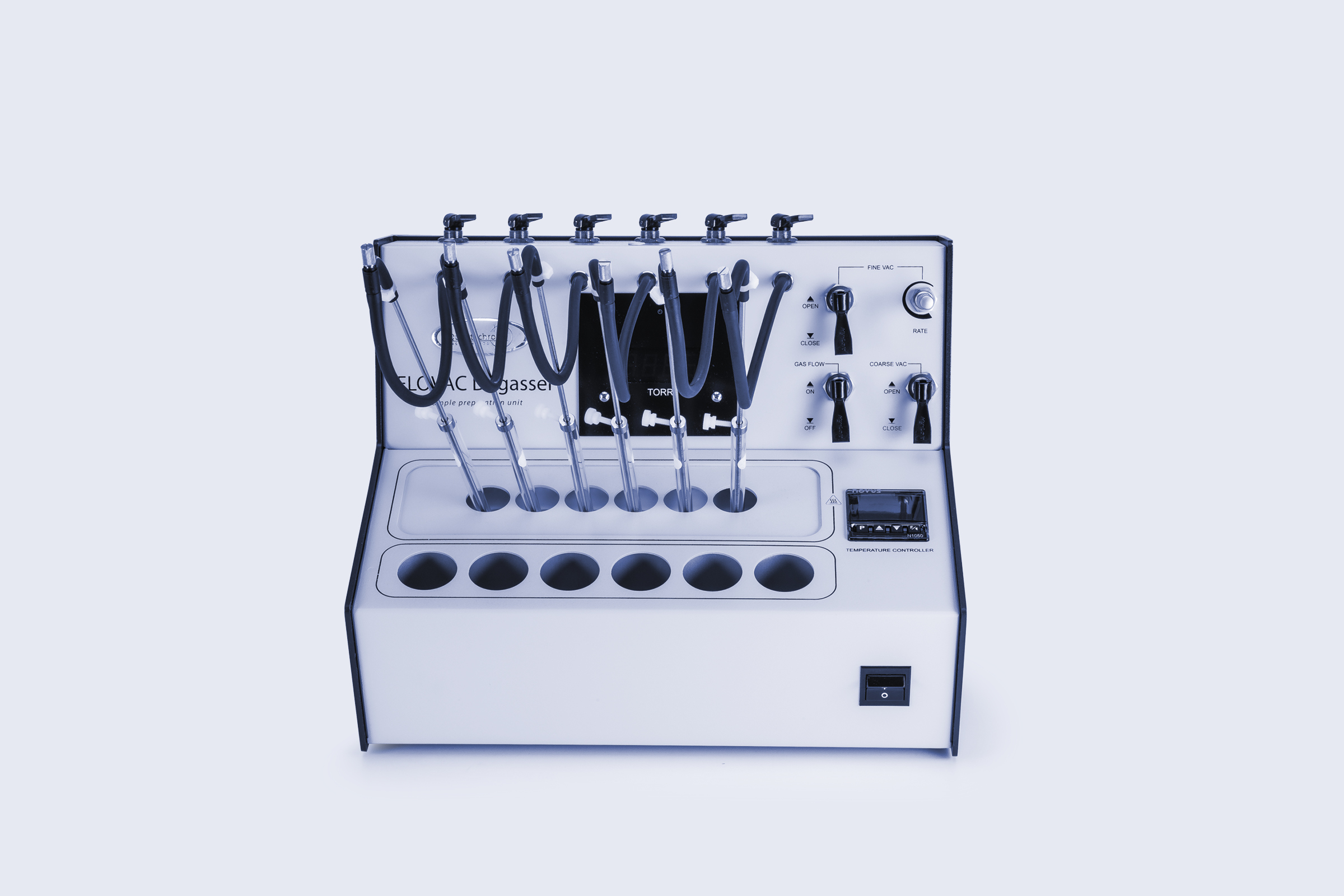

Flow and vacuum degassing capability in a single instrument, featuring an easy-to-use temperature controller and adjustable gas flow valves: Degas six samples at a time while cooling six previously processed samples in the cooling chamber.
Key features
Vacuum or flow: do it the way you want
FloVac gives you all the degassing options you need in one package – no separate flow and vacuum systems required.
Manage 12 samples simultaneously
Streamline your workflow and maximize degassing efficiency. FloVac offers you the flexibility to move hot degassed samples to the cooling chamber while you’re degassing a fresh batch of six.
You have the control
FloVac gives you flexibility to manage gas flow rates with coarse and fine valves, and offers sample ports that accommodate six, nine, and 12 mm sample cells.
Specifications
| Sample ports | 6 |
| Temperature zones | 2 (ambient and heated) |
| Degassing methods | Vacuum and flow |
| Backfill/purge gas | User selectable (typically N2 or He) |
| Evacuation rates | Coarse and fine to prevent powder elutriation |
| Flow rates | Independently adjustable for each port up to 100 mL/min |
| Cooling areas | 6 |
| Vacuum gauge | Digital |
| Temperature control | Digital |
| Temperature display | 4 digit |
| Temperature set point | ± 1 °C |
| Temperature accuracy | ± 5 °C (at thermocouple) |
| Height x width x depth | 28 cm (11 in) to top of cabinet x 36 cm (14 in) x 25 cm (10 in); excluding connections at rear |
| Weight | 5 kg (11 lb) |
| Voltage | 100-240 VAC, 50/60 Hz |
| CE compliant | Yes |
Anton Paar Certified Service
- More than 350 manufacturer-certified technical experts worldwide
- Qualified support in your local language
- Protection for your investment throughout its lifecycle
- 3-year warranty
Documents
-
Catalyst Characterization - From Fresh to Spent Application Reports
-
FloVac Degasser Brochure Brochures
-
NEW HORIZONS IN PARTICLE ANALYSIS Brochures
Compatible instruments
Nova 600
Nova 600 BET
Nova 800
Nova 800 BET
Autosorb 6100
Autosorb 6200
Autosorb 6300
iSorb HP1 100
iSorb HP1 200
iSorb HP2 100
iSorb HP2 200
Complementary products
If you do not find the item you require, please contact your Anton Paar sales representative.
NUT & FERRULE, 1/8 INCH, BRASS
Porca e anilha, 1/8 polegada, bronze
RS232 SERIAL CABLE, 10 FEET
USB RS232 SERIAL ADAPTER DB-9
INPUT LINE, 5 FEET, COPPER
Linha de INPUT 5' de Cobre
Power Cord, 125V, type B to C13
SAMPLE CELL ADAPTOR, 6 mm
VACUUM HOSE ASSEMBLY, 5' (1.5 M)
For connecting to an external vacuum pump. Includes 5 foot (1.5 meter) length of 3/4 inch (1.9 cm) diameter reinforced vacuum hose, 16KF flanges, centering rings and clamps.
SAMPLE CELL ADAPTOR, 9 mm
SAMPLE CELL ADAPTOR, 12 mm
Sample Funnel For 6/9/12 mm 6mm Opening
lt.Zg. E87M00001/A Material: POM-H RS SCHWARZ
DOWEL PIN, 12 mm
DOWEL PIN, 6 mm
DOWEL PIN, 9 mm
VACUUM GREASE .25 OUNCE
VACUUM PUMP OIL, PFEIFFER, 1 L
O-RING, BUNA 010, BLACK, PACK OF 2
O-RING, BUNA 015, BLACK, PACK OF 2
O-RING, BUNA 12 mm, BLACK, PACK OF 2
O-RING, BUNA 20 mm, BLACK, PACK OF 2
O-RING, BUNA 9 mm, BLACK, PACK OF 2
