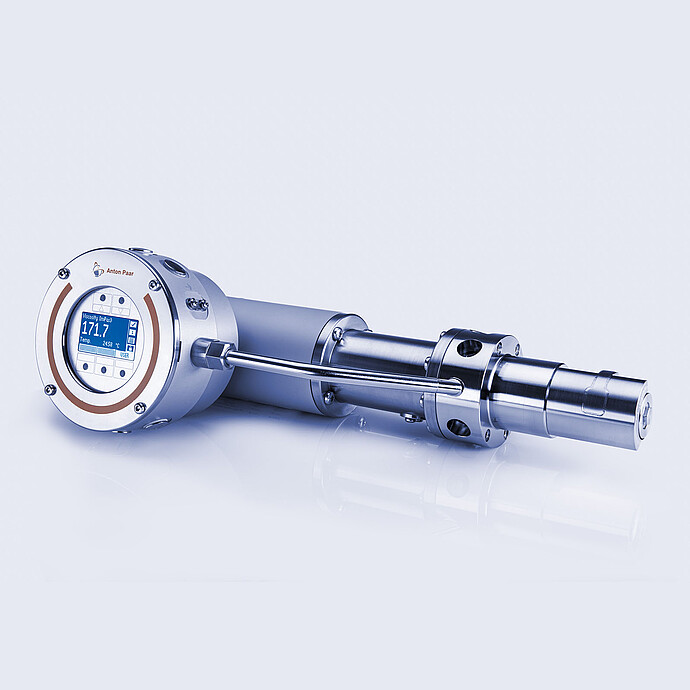

Inline viscometer:
L-Vis

Model:
  • Reduces the required lab measurements and increases your throughput
  • Best-in-class inline analysis of shear-dependent samples
  • Unaffected by pressure drops and changes in flow speed
  • Also available as an Ex-version for hazardous areas
  • Best-in-class inline analysis of shear-dependent samples
  • Reduces the required lab measurements & increases your throughput
  • For samples like sanitary ceramic, shampoos, viscose, and dough

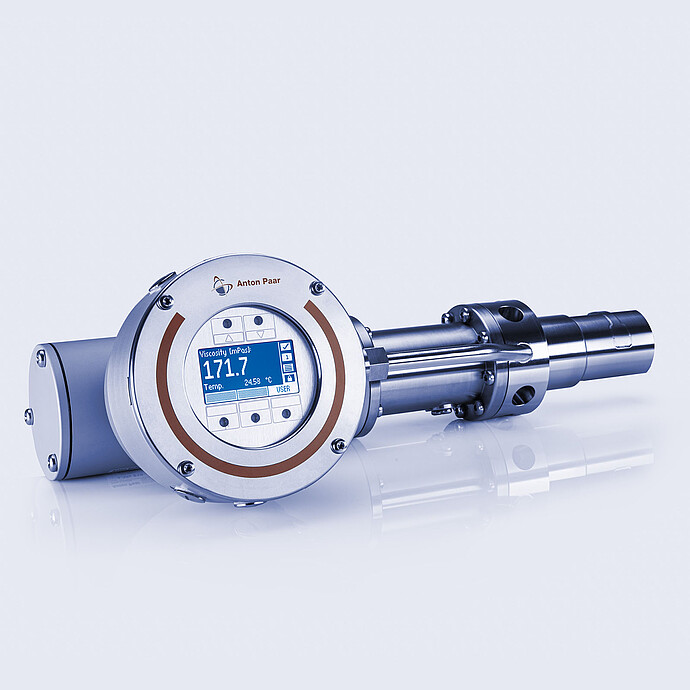

  • Built-in operating terminal for efficient handling with the instrument
  • Best-in-class inline analysis of shear-dependent samples
  • Reduces the required lab measurements & increases your throughput
  • For resins, adhesives, glycol, petroleum, etc. in hazardous areas
  • Displays kinematic viscosity at process temperature and temperature-compensated according to ASTM D341
Online price only | excl.incl. 0VAT
Price
upon request
Purchase information
Buy Anton Paar instruments online
Part number:
Check online availability Get a quote Buy this product online
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months

The L-Vis inline viscometry solution combines unique inline process technology with the know-how of the world leader in lab rheology. Applying the lowest shear rates allows for best-in-class correlation of results with your lab instruments. The L-Vis sensors stand for reliable inline measurement, especially for samples with shear-dependent behavior – such as sanitary ceramic, shampoos, viscose, and dough – resulting in higher product quality and reducing the time required for analysis in the laboratory. L-Vis 520 Ex is Ex-certified for use in hazardous areas and therefore ideal for inline viscosity measurements on petroleum products, resins, adhesives, and glycol.

Key features

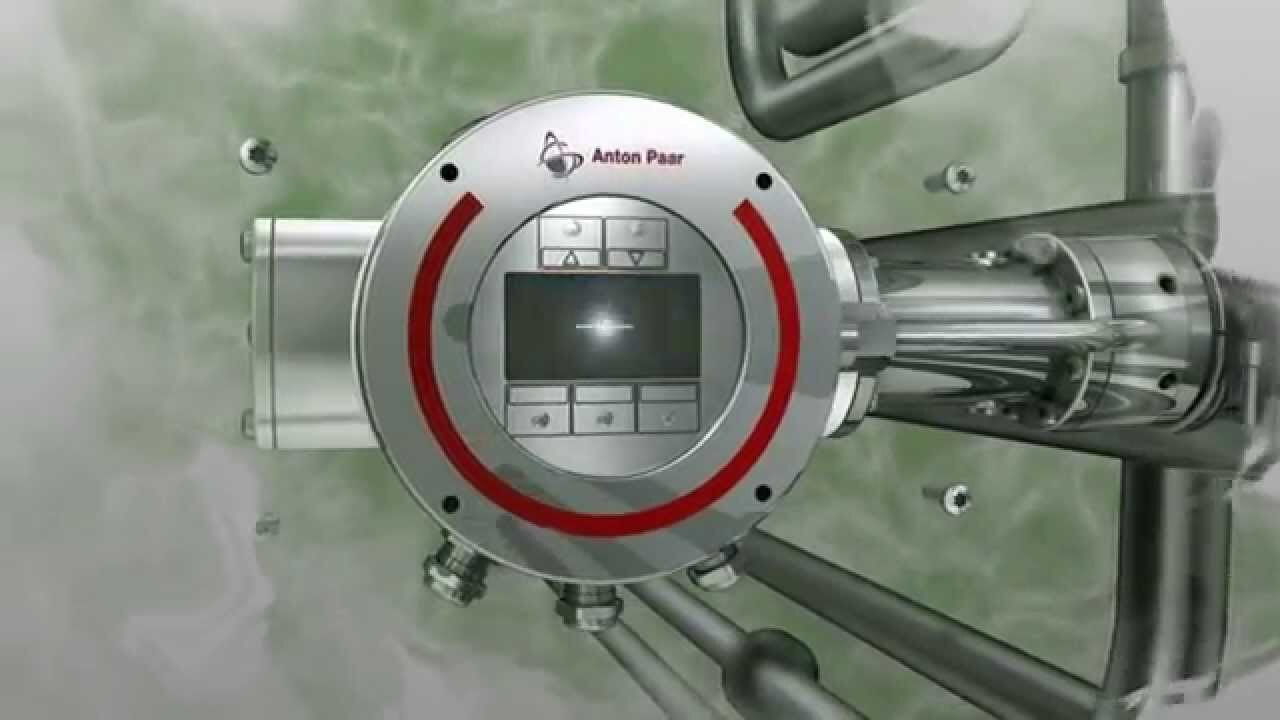

Bringing lab measurement inline

Bringing lab measurement inline

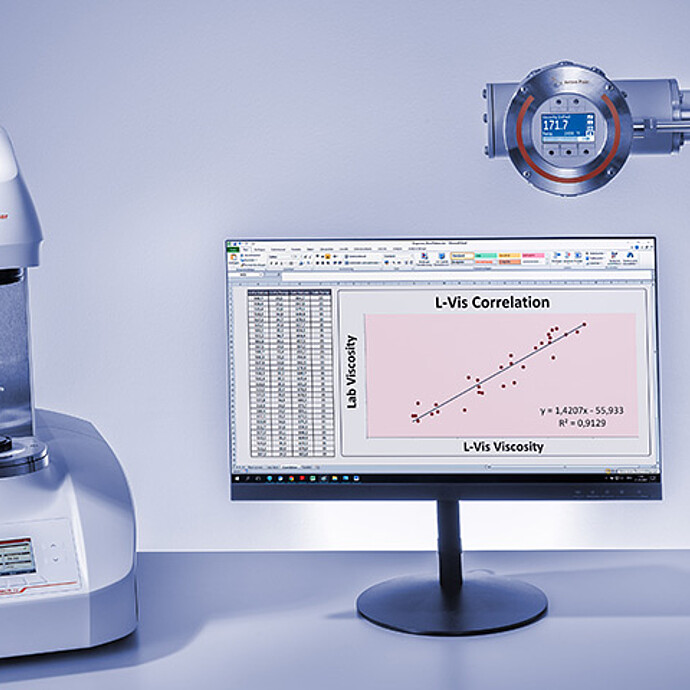

  • Higher product throughput: The number of lab measurements can be reduced from once per hour to once per day.
  • Increased output product quality: Ceramic’s waste, for example, can be reduced by 20 % as continuous inline measurement helps avoid laboratory-related sample preparation issues such as the influence of ambient conditions or read-off errors.
  • Reliable inline performance: Being the leading supplier for lab rheology instruments, Anton Paar’s expertise ensures an excellent correlation between inline sensors and lab instruments under a wide variety of operating conditions.
  • Adjustable shear rates allow for further improving the lab-to-process correlation by adapting shear rates in such a way that they are closer to those of lab instruments.

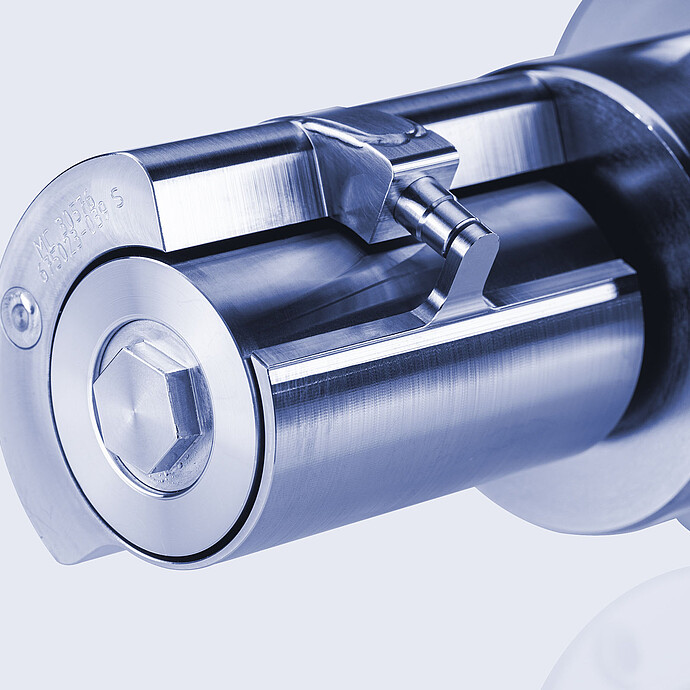

Best-in-class analysis of shear-dependent samples

Best-in-class analysis of shear-dependent samples

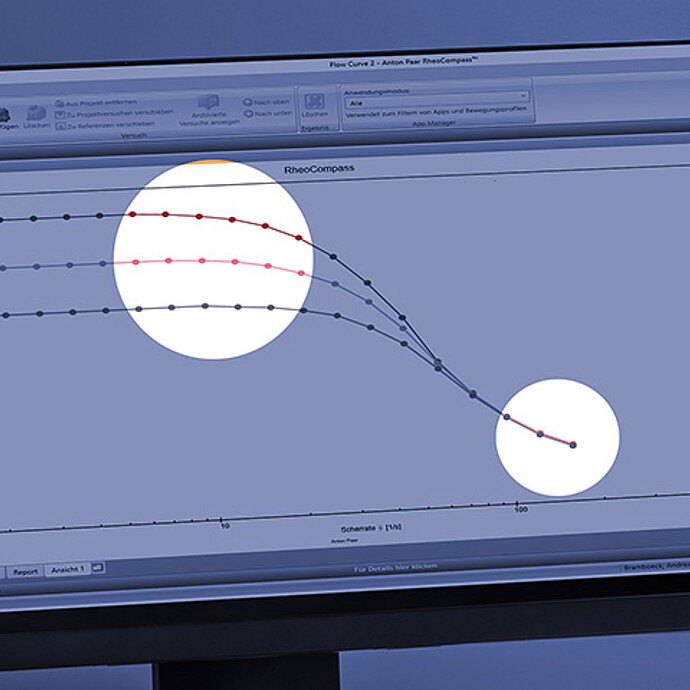

  • Get more meaningful and detailed information on your sample’s properties by applying low shear rates down to 10 s-1. Measure, for example, shear-thinning polymer solutions in their low-shear plateau rather than in the shear-bending area.
  • Accurately track varying flow behavior throughout different process steps by choosing between three different rotation speeds.
  • The influence of temperature variations is minimized due to temperature-compensated viscosity values.

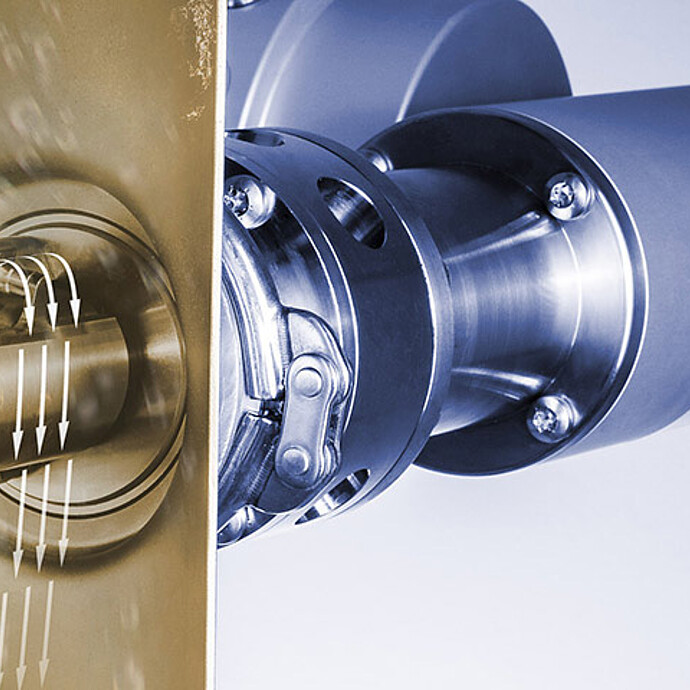

Rely on results, even under harsh process conditions

Rely on results, even under harsh process conditions

  • The instrument can be installed directly in the product flow.
  • Pressure drops and changes of flow velocity up to 2 m/s do not influence the measurement.
  • External forces, such as bearing and sealing frictions, do not influence the measurement result.
  • Measurements of inhomogeneous fluids and suspensions can be performed, maintaining excellent repeatability.

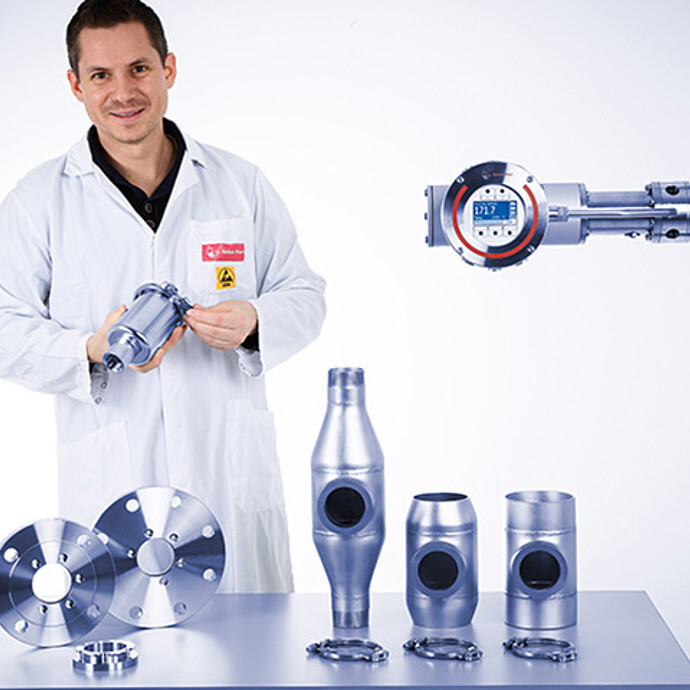

Various process installation and communication possibilities

Various process installation and communication possibilities

  • L-Vis can be installed in a stirred tank, in the main line, and in a bypass line. The innovative measuring principle always forces a proper sample exchange.
  • Multiple spool pieces and process connections make the installation as easy as possible.
  • All relevant fieldbuses as well as an analog 4-20 mA signal are available to ensure communication to your PLC/DCS.

Technical specifications

L-Vis 510 L-Vis 520 Ex
Measurement principle Dynamic fluid pressure Dynamic fluid pressure
Viscosity
Measuring range 1 mPa.s to 50,000 mPa.s 1 mPa.s to 50,000 mPa.s
Typical accuracy 1 % 1 %
Typical repeatability 0.5 % 0.5 %
Conditions
Process temperature range -5 °C to +200 °C -5 °C to +195 °C
Ambient temperature -20 °C to +40 °C -20 °C to +40 °C
Process pressure range 0 bara to 25 bara 0 bara to 25 bara
Housing
Material Stainless Steel, anodized aluminum Stainless Steel, anodized aluminum
Dimensions (L x W x H) 420 mm x 200 mm x 180 mm 400 mm x 200 mm x 240 mm
Weight approx. 12 kg approx. 13 kg
Flange type

L-Vis process flange DN60 with welding set
(25 bar@200 °C);
L-Vis process flange DN60 with adapter
(25 bar@100 °C, 20 bar@200 °C);
EN 1092-1/05/DN80/PN16,
EN 1092-1/05/DN100/PN16
ANSI flange 3", 4" CL 150
VARIVENT® Type N (10 bar@135 °C)

L-Vis process flange DN60 with welding set
(25 bar@200 °C);
L-Vis process flange DN60 with adapter
(25 bar@100 °C, 20 bar@200 °C);
EN 1092-1/05/DN80/PN16,
EN 1092-1/05/DN100/PN16
ANSI flange 3", 4" CL 150
VARIVENT® Type N (10 bar@135 °C)

Sensor
Wetted parts Stainless Steel No. 1.4542, diamond-coated SiC seal, Viton O-ring seal Stainless Steel No. 1.4542, diamond-coated SiC seal, Viton O-ring seal
Installation dimensions min. 130 mm x min. 100 mm (L x Ø) min. 130 mm x min. 100 mm (L x Ø)
Installation Inline, bypass, tank Inline, bypass, tank
Installation orientation Horizontal and vertical Horizontal
Sealing Single mechanical seal Double mechanical seal with a buffer fluid
Operating terminal
Display 35 mm x 60 mm display incl. optical pushbuttons 35 mm x 60 mm display incl. optical pushbuttons
Analog/digital communication
Analog output 2 x 4 to 20 mA 2 x 4 to 20 mA
Digital output 1 x 1 x
Digital input 1 x 1 x
Fieldbus communication PROFIBUS DP, PROFINET, Modbus TCP, EtherNet/IP, DeviceNet PROFIBUS DP, PROFINET, Modbus TCP, EtherNet/IP, DeviceNet
Power supply 24V DC 3.75 A 24V DC 3.75 A
Degree of protection IP 65 IP 65
Hazardous area No

ATEX/IECEx: II 2 G Ex d IIB T6 Gb
Class I, DIV 1, Groups C and D, T6 (USA)
Class I, DIV 1, Groups C and D, T6 (Canada)

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents

Consumables

Consumables are purchasable online in specific countries.

To find out if you can purchase online from your location, check the online availability below.

Check online availability
Online price only | excl.incl. 0VAT

O-Ring Gasket 28.3x1.78 FPM 80 Viton

Compatible with:
L-Vis 510 | 520 Ex
Get a quote
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Get a quote
Part number: 65180
