Accessories for SAXSpoint 700 and SAXSpoint 500:
Battery Cell

By watching this video, you're loading content from YouTube, which is a service of Google LLC.

For more information on how Google may use your data, read the Google Privacy Policy.

Customize your cookie settings

  • Stage for operando battery measurements
  • Wide application range
  • Effective cell design for quality outputs
Battery Cell

Our Battery Cell Stage allows you to gain unparalleled insights into your battery’s inner workings with operando SWAXS measurements. Our advanced cell design enables the simultaneous investigation of both electrochemical performance and nanostructural evolution – including changes in size, shape, and morphology – under real operating conditions.

Key features

Operando battery measurements

By capturing dynamic structural processes as they happen, you can truly understand how materials behave, degrade, and transform during charge and discharge cycles. This makes SAXSpoint 700 and SAXSpoint 500 the ideal tools for developing next-generation energy storage systems with higher efficiency, greater stability, and a longer lifetime.

Effective design

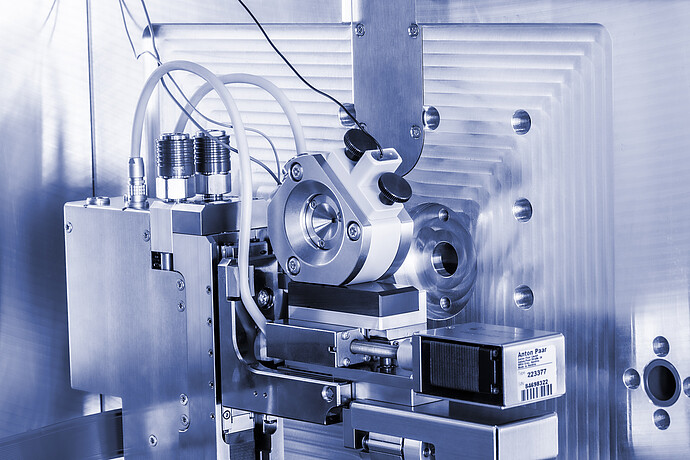

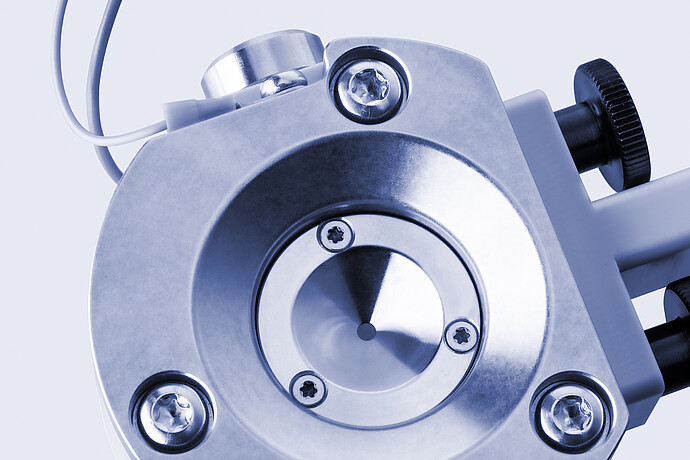

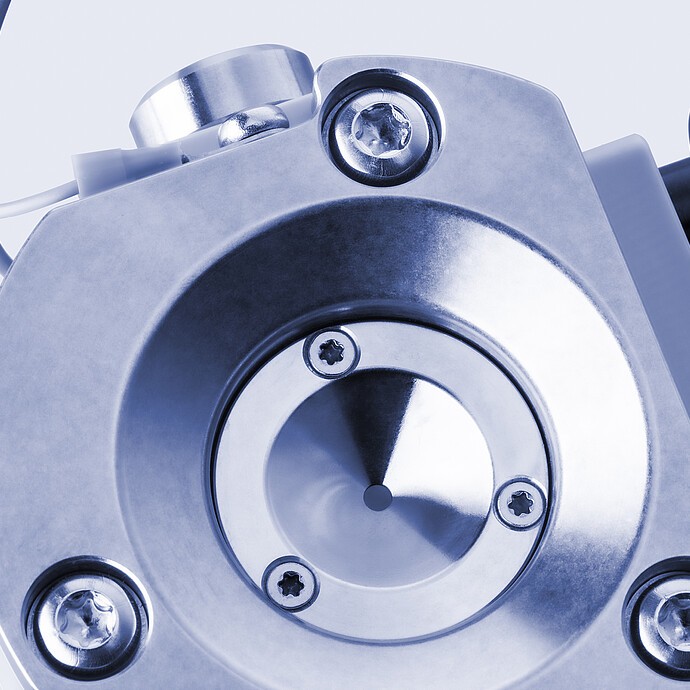

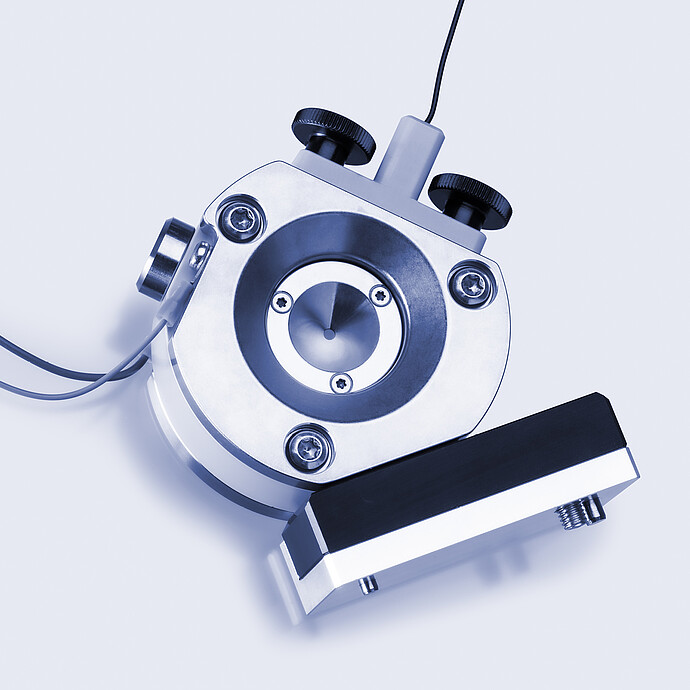

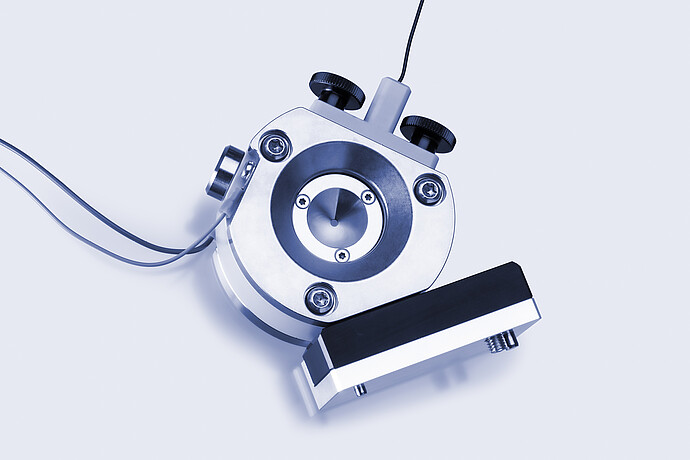

The in-situ cell is mounted on an adjustable sample stage base and enables precise alignment of the cell in the X-ray beam. The cell design ensures a sealed environment for the electrochemical cell materials that are used, good electrical contact of all electrodes, and sufficient penetration of X-rays in transmission. The feed-through adapter includes plugs for connecting an external potentiostat or galvanostat for performing cycling.
Furthermore, the cell inside can be connected to different gases (e.g. O₂ for Li-O₂ batteries).

Wide application range

Potential samples and applications to be investigated with the electrochemical scattering cell include, Li-ion, Li-S, Li-air, Na-I, super-capacitor materials, electrodeposition/dissolution processes, corrosion processes, and electrocatalysis.
