Universal Testing Holder for Medical Applications:
Syringe Test Holder

Holder to test prefilled syringes with UTM Micro testing device
Glide and break-away force measurements of prefilled syringes
Full compliance with ISO 11040-4 and ISO 7886-1

Syringe Test Holder

Key features
Documents
Compatible instruments
Complementary products

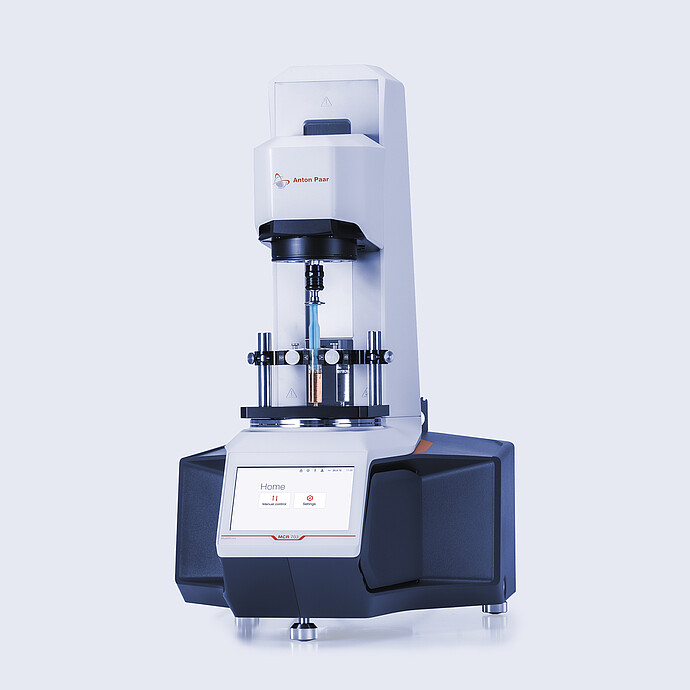

Testing prefilled syringes is important to guarantee the optimal administration of a drug. This special holder for syringe testing allows users to fix syringes of 6 mm to 22 mm in diameter and containing various volumes. Glide forces and break-away forces of the prefilled syringes can be easily measured with high accuracy and reproducibility. And you’re not restricted to syringe tests: You can upgrade your UTM Micro to a full rheometer, tribometer, or DMA.

Key features

Glide force of prefilled syringes according to ISO 11040

This holder allows users to perform glide force tests to evaluate syringe lubrication, as specified in ISO 11040, Annex E. Break-away forces can also be measured, and recorded via the RheoCompass application software.

Forces for piston movement according to ISO 7886-1

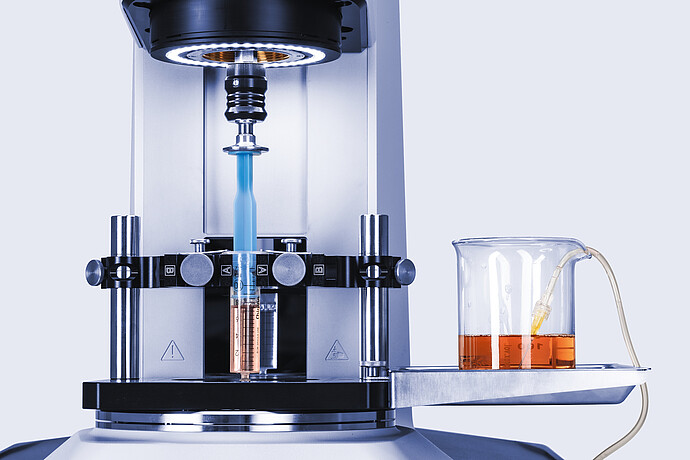

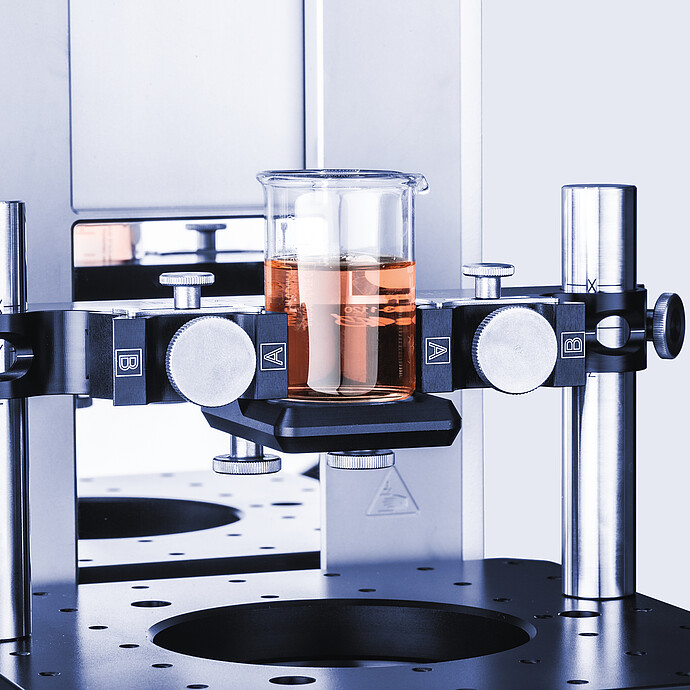

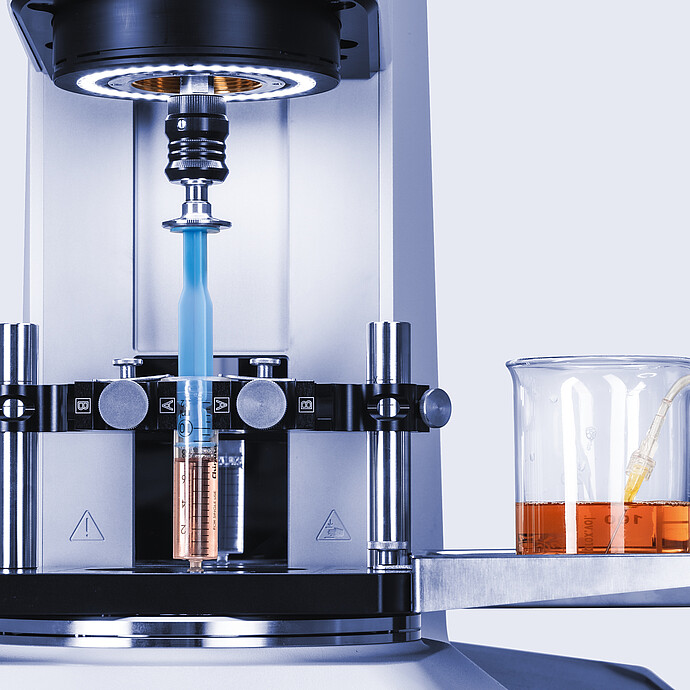

The syringe test holder is used to squeeze water out of the syringe, while the force required to move the piston is recorded according to the ISO 7886-1 standard. The set-up consists of the height-adjustable syringe clamp, as well as a stand for a fluid reservoir to collect the squeezed-out sample. The DIN ISO 7886-1 standard is also referenced in USP<382> and USP<1382>.

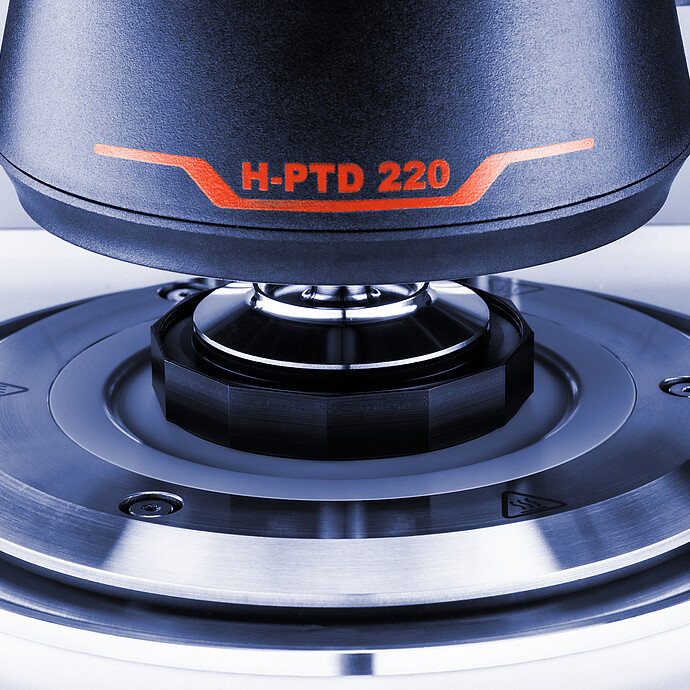

More than ‘just’ a universal testing machine

Enjoy complete flexibility and use UTM Micro exactly as you need it – whether as a dedicated mechanical testing machine or as a multi-purpose system combining several methods, including rheometry, tribology, powder rheology, and dynamic mechanical analysis. You’re not limited to syringe testing, either; you can also measure the viscoelastic properties of drugs and other liquids, semisolids, or solids to support formulation development and improve product stability.

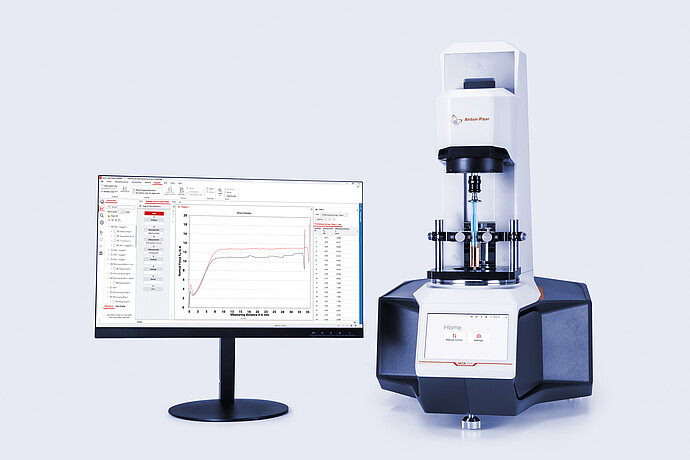

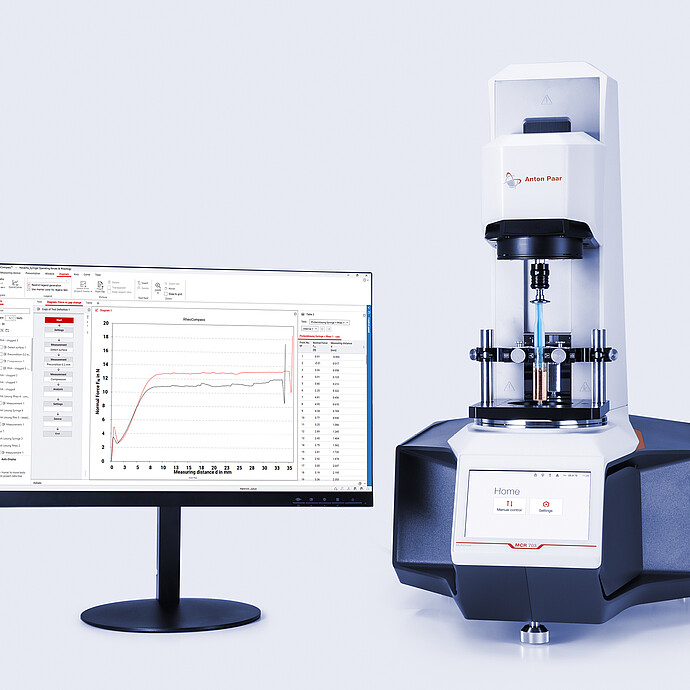

Manage users and quality with RheoCompass software

RheoCompass provides robust user and quality management features, including user accounts with defined roles and rights, event logging, template approval, and advanced tools for operating under quality management regulations such as GLP/GMP or 21 CFR Part 11. All relevant user actions are documented and traceable. Anton Paar also offers a unique Pharma Qualification Package (PQP) to support customers in the pharmaceutical industry with the qualification of their instruments.
