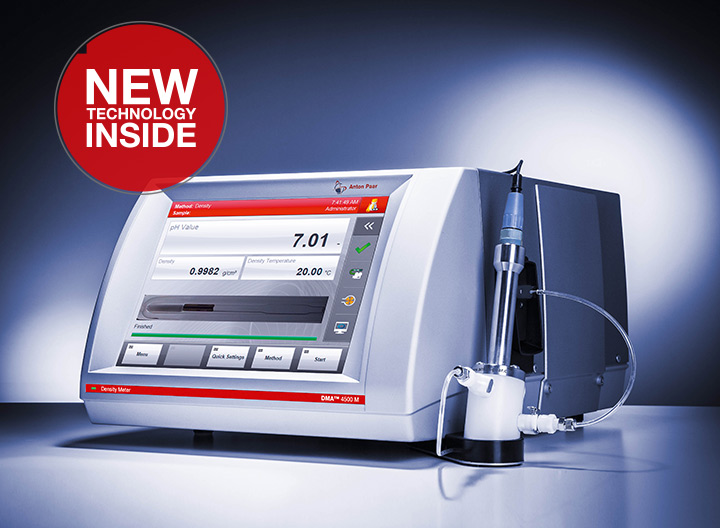

Density meter: DMA™ 4100 M

Humidity, air pressure, changing users? This smart density meter is up for the challenge.

DMA™ 4100 M delivers the 4-digit density values you need and is not affected by your working environment and workforce. It applies the patented Pulsed Excitation Method to deliver the most stable density results based on comprehensive knowledge of the oscillation characteristics. This method results in viscosity correction which is twice as effective as anything else available on the market. The integrated camera allows you to check the filling procedures of your operators at any time and also at the end of the working day. The patented condition monitoring ensures that frequently changing users with differing filling approaches, humidity, temperature fluctuations, air pressure, and instrument condition all have no effect on the operation and results – built-in intelligence for your convenience.

Get in touch Document Finder

A revolutionary density measuring principle for quick and easy quality control

The unique design of the measuring cell, a novel way of evaluating the oscillation characteristics, and many other innovative features lead to the following:

Unaffected by harsh working conditions

Stable results under varying conditions, such as humidity, temperature and air pressure
Housing withstands shocks, dirt, and spillages
Frequently changing users and filling styles do not influence the measurement results

Supervise all filling procedures and be alerted if there is an error

The U-View™ camera feature displays and stores live images of the oscillating U-tube sensor and the entire filled-in sample
Relevant images with the sample fully and clearly visible are stored in the data memory
Later review of these images guarantees completely transparent measurement processes

Automatic bubble detection

Monitor your sample handling with the FillingCheck™ that detects filling errors, gas bubbles and particles in the sample
FillingCheck™ generates and records filling warnings
U-View™ and FillingCheck™ supervise the entire measurement sequence and allow later verification of the results, which is particularly useful when using automatic sampling systems

Touchscreen for premium user experience

The only density meter with PCAP touchscreen technology for unmatched sensitivity and robustness at the same time
Easy operation, even when wearing gloves
Large screen, readable from a distance due to adaptable font sizes

Technical Specifications

	DMA™ 4100 M	DMA™ 4500 M	DMA™ 5000 M
Patents granted	AT 516420 (B1) AT 517082 (B1)	AT 516420 (B1) AT 517082 (B1)	AT 516420 (B1) AT 517082 (B1)
Patents pending	AT 517486 (A1)	AT 517486 (A1)	AT 517486 (A1)
Measuring range	Density: 0 g/cm³ to 3 g/cm³ Temperature: 0 °C to 100 °C (32 °F to 212 °F) Pressure: Up to 10 bar (145 psi)	Density: 0 g/cm³ to 3 g/cm³ Temperature: 0 °C to 100 °C (32 °F to 212 °F) Pressure: Up to 10 bar (145 psi)	Density: 0 g/cm³ to 3 g/cm³ Temperature: 0 °C to 100 °C (32 °F to 212 °F) Pressure: Up to 10 bar (145 psi)
Repeatability s.d.⁽¹⁾	Density: 0.00001 g/cm³ Temperature: 0.02 °C/0.04 °F	Density: 0.000005 g/cm³ Temperature: 0.01 °C/0.02 °F	Density: 0.000001 g/cm³ Temperature: 0.001°C/0.002°F
Reproducibility s.d.⁽¹⁾	Density: 0.00005 g/cm³	Density: 0.00002 g/cm³	Density: 0.000005 g/cm³
Accuracy⁽²⁾	Density: 0.0001 g/cm³ Temperature: 0.03 °C/0.05 °F	Density: 0.00005 g/cm³ Temperature: 0.02 °C/0.04 °F	Density: 0.000007 g/cm³ Temperature: 0.01 °C/0.02 °F
Digital Resolution	0.0001 g/cm³	0.00001 g/cm³	0.000001 g/cm³
Integrated tables and functions	Alcohol tables Extract/sugar tables API functions Acid/base tables 150 freely programmable tables/user functions (tables, polynomials, formulas, linear functions, and constants)	Alcohol tables Extract/sugar tables API functions Acid/base tables 150 freely programmable tables/user functions (tables, polynomials, formulas, linear functions, and constants)	Alcohol tables Extract/sugar tables API functions Acid/base tables 150 freely programmable tables/user functions (tables, polynomials, formulas, linear functions, and constants)
Minimum sample amount	approx. 1 mL	approx. 1 mL	approx. 1 mL
Measuring time per sample⁽³⁾	30 seconds	30 seconds	40 seconds
Dimensions (L x W x H)	495 mm x 330 mm x 230 mm (19.5 in x 13 in x 9.1 in)	495 mm x 330 mm x 230 mm (19.5 in x 13 in x 9.1 in)	495 mm x 330 mm x 230 mm (19.5 in x 13 in x 9.1 in)
Data memory	1000 measurement results (optional ring memory)	1000 measurement results (optional ring memory)	1000 measurement results (optional ring memory)
Power supply	AC 100 to 240 V 50 to 60 Hz 190 VA	AC 100 to 240 V 50 to 60 Hz 190 VA	AC 100 to 240 V 50 to 60 Hz 190 VA
Weight	22.5 kg (49.6 lbs)	22.5 kg (49.6 lbs)	22.5 kg (49.6 lbs)
Interfaces	4 x USB RS-232 CAN VGA Ethernet	4 x USB RS-232 CAN VGA Ethernet	4 x USB RS-232 CAN VGA Ethernet
Display	Bright 10.4" TFT PCAP touchscreen (640 x 480 px) with customizable display layout	Bright 10.4" TFT PCAP touchscreen (640 x 480 px) with customizable display layout	Bright 10.4" TFT PCAP touchscreen (640 x 480 px) with customizable display layout
Wetted parts	PTFE, borosilicate glass	PTFE, borosilicate glass	PTFE, borosilicate glass
Industries	Beverages Chemical Industry Cosmetics, Personal Care Electronics Environmental Food Industry Petroleum Industry Pharmacy, Medicine, Biotechnology	Beverages Chemical Industry Cosmetics, Personal Care Education, Research Electronics Environmental Food Industry Petroleum Industry Pharmacy, Medicine, Biotechnology	Beverages Chemical Industry Cosmetics, Personal Care Education, Research Electronics Environmental Pharmacy, Medicine, Biotechnology

⁽¹⁾ according to ISO 5725

⁽²⁾ under ideal conditions and for low densities/viscosities

⁽³⁾ After temperature equilibration

Standards

A

ASTM D4052
ASTM D6448
ASTM D2501
ASTM D5002
ASTM D5931
AOAC 982.10
ASBC Beer-2B: Specific Gravity by digital density meter (1978)
ASTM D1475
ASBC Beer-5: Real Extract (B. Beer measured gravimetrically (1958), C. Real Extract determined refractometrically (1982))
ASTM D1250
ASTM D4806

C

CPTC SH/T 0604-2000 eqv. ISO 12185

D

DIN 51757

E

European Union Spirits drinks: COMMISSION REGULATION (EC) No 2870/2000
European Union Wines: COMMISSION REGULATION (EC) No 355/2005
European Union Wines: COMMISSION REGULATION (EC) No 128/2004
European Union Wines: COMMISSION REGULATION (EEC) No 2676/90
EBC Chapter 1.6
EBC Chapter 9.43.2
EBC Chapter 8.2.2
