Accessory for Litesizer DIA and DIF:
Dispersion Unit

  • +6
Model:
  • Dispersion of samples using a carrier liquid
  • Automated filling, draining, and rinsing of the dispersion liquid
  • Prevention of overheating with automatic recognition of liquid
  • Dedicated version with high chemical resistance available for handling aggressive liquids
  • Available for the Litesizer DIA and Litesizer DIF series

Measure various samples with four dispersion units: Liquid Flow (wet), Dry Jet (compressed air), Free Fall (gravitational fall), and Liquid Flow Imaging (wet). Switch between dispersion units with the Quick-Click feature in just one move – no need for any extra cables, tubes, or pipes.

Welcome to particle analysis at the touch of a button.

Key features

Absolute operator safety

  • Safety cover prevents toxic or explosive sample spread
  • Liquid level recognition before sonication prevents overheating
  • All toxic or explosive samples contained

Automated dispersion units

  • Automated filling, draining, and rinsing of dispersion liquid
  • Optimal sample feeding rate set automatically
  • Filtering and identification of all particles of interest
  • Optimized results data size

Four powerful dispersion units

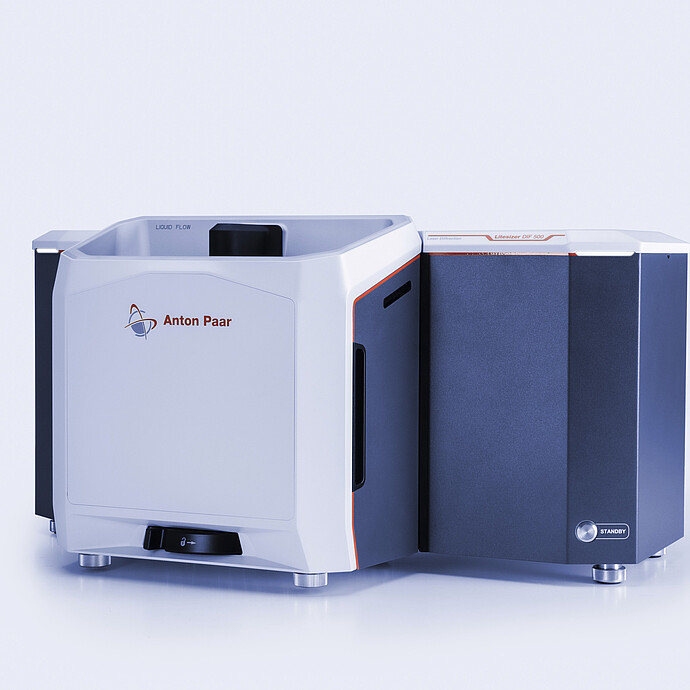

  • Liquid Flow (wet): Carrier liquid for dispersion; a dedicated version with high chemical resistance is also available for handling aggressive liquids
  • Dry Jet (compressed air): Perfect for dispersing dry agglomerates
  • Free Fall (gravitational fall): Dry and free-flowing materials (Litesizer DIA series)
  • Liquid Flow Imaging (wet): Combination of laser diffraction with dynamic image analysis

Specifications

Module Liquid Flow Dry Jet Free FallLiquid Flow Imaging
CompatibilityLitesizer DIF 500
Litesizer DIA series
Litesizer DIF 500
Litesizer DIA series
Litesizer DIA seriesLitesizer DIF series
Dispersion means Stirring, ultrasonicationVibration and compressed air (Venturi tube) Vibration and gravitational fallStirring, ultrasonication
Sample holder Tank: 150 mL to 600 mLFunnel: 150 mL to 600 mLFunnel: 150 mL to 600 mLTank: 150 mL to
600 mL
AutomationAuto-filling, auto-draining, auto-rinsingAutomatic feeding rate adjustment, automatic funnel emptying, automatic cleaning of the measurement windowAutomatic feeding rate adjustment, automatic funnel emptyingAuto-filling, auto-draining, auto-rinsing
Measurement range DIA0.5 μm to 2,500 μm 0.5 μm to 5,000 μm 0.5 μm to 16,000 μm
Measurement range DIF0.01 μm to 2,500 μm 0.01 μm to 3,500 μm  Size: 0.01 µm to
2,500 µm
Shape: 5 µm to
2,500 µm
Weight 16.5 kg (36 lb)21.3 kg (47 lb)20.9 kg (46 lb)20.1 kg (44 lb)
Accessories availableWater filter  Air filter vacuum cleaner: regular or ATEX funnel; 600 ml and 150 ml Venturi nozzles with diameter of 3.5 mm and 5 mmFunnel: 600 ml and 150 ml free fall measurement cell with 4 mm and 8 mm gapsWater filter

Standards

Open all
Close all

ISO

9276-1
9276-2
9276-6
13322-1
13322-2

Standards

Open all
Close all

ISO

9276-1
9276-2
9276-6
13322-1
13322-2

Standards

Open all
Close all

ISO

9276-1
9276-2
9276-6
13322-1
13322-2

Standards

Open all
Close all

ISO

9276-1
9276-2
9276-6
13322-1
13322-2

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
