Inline Beverage Analyzer:

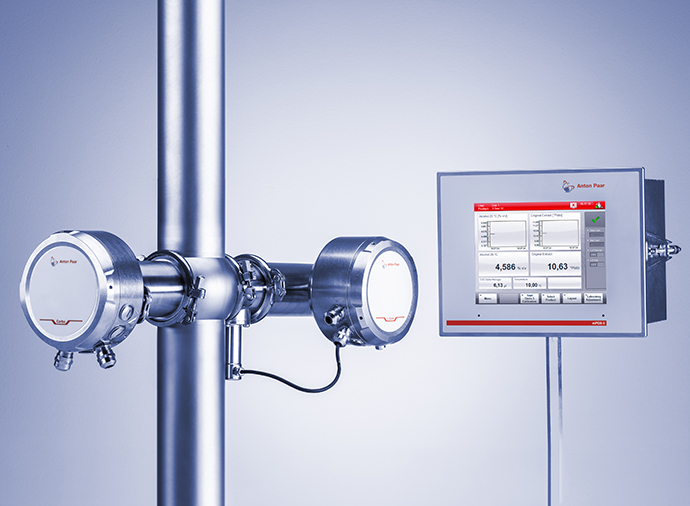

Wine Monitor 5500/5600

Wine alcohol, extract and CO2 determination

Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN
If you can't find your country in the list get a quote

The ability to accurately monitor wine quality is an important part of the modern winemaking process. The new Wine Monitor 5500 and Wine Monitor 5600 are highly accurate instruments for the continuous monitoring of the alcohol content, extract, density, and CO2 concentration of all wines – from red, white, and rosé wines to wine mix drinks. Check the sparkle of your standard or low-calorie champagne, sparkling wine, prosecco, spumante, or cava. Optionally color and oxygen can be determined as well.

Using digital signal processing and a new mechanical design, the Wine Monitors deliver stable, drift-free results and help keep your production highly efficient.

Key features

Two system configurations to suit your requirements

Wine Monitor 5500
Density and sound velocity sensor combined with a p/T (volume expansion) CO2 measurement

  • Low maintenance – depending on the operating conditions maintenance is required on average every 6 to 18 months
  • Product-specific setups at the best value
  • W-shaped oscillating tube
  • Digital signal processing
  • New mechanical design for reduced size and weight

Wine Monitor 5600
Density and sound velocity sensor combined with an optical CO2 measurement

  • Product-independent measurement (whatever your beverages’ solubility, sugar composition, foreign gases, color, or turbidity: nothing influences your readings)
  • Suitable for hygienic applications
  • Maintenance-free
  • W-shaped oscillating tube
  • Digital signal processing
  • New mechanical design for reduced size and weight



Ensured product quality with wine- and sparkling–wine-specific values

  • CO2 pressure at 20 °C for the purpose of defining sparkling wine taxes at the filler
  • Alcohol concentration in g/L, %v/v or %w/w
  • Highly accurate CO2 measurement to improve the flavoring and perception of still wines



Fits your production environment

Equipped with an internal sample pump the Wine Monitor can be installed directly in the main line. The very robust and compact setup does not require any bypass, which saves you additional implementation costs.


Rapid production start

Accommodate a wide range of wines, sparkling wines, and wine mix drinks immediately after installation with little or no adjustment. This reduces your downtimes and makes your production line fit for immediate change of products using the same monitor without being dependent on additional monitors to measure your wine parameters.


Ease of use

A simple touchscreen user interface facilitates the setup of the instrument and product parameters. In addition, you can visualize your process and display graphical trends with just a few clicks. By setting lower and upper limits on measurement values, alarms can be set and triggered using digital or relay outputs.


Improved process capability – keeping an eye on all relevant key parameters

The powerful data acquisition and visualization software (client-server) Davis 5 enables you to save all data and alarms, provides statistical process control and graphical trend analysis, and allows product adjustments. Password-protected access to all measuring systems is possible from various locations, while providing powerful reporting and integration with your corporate quality management system.

Technical specifications

Wine Monitor 5500 and Wine Monitor 5600
Extract
Range 0 %w/w to 10 %w/w
Accuracy 0.04 %w/w
CO2 concentration
Range 0 Volumes to 6 Volumes
0 g/L to 12 g/L
Accuracy 0.025 Vol. (0.05 g/L)
Alcohol
Range 0 %w/w to 16 %w/w (%weight/weight)
0 %v/v to 20 %v/v (%volume/volume at 20 °C)
Accuracy 0.04 %w/w

Measuring temperature 0 °C to +25 °C

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents

Accessories

Accessories

Accessories

Accessories

Not all items are purchasable online in specific countries.

To find out if you can purchase online from your location, check the online availability below.

Color Sensor:
L-Col 6100

Online price only | excl.incl. 0VAT
Delivery time: %1$s – %2$s working days %1$s – %2$s weeks %1$s – %2$s months
Product details
  • Inline color measurement for all kinds of beverages
  • EBC/MEBAK®/ASCB-compliant
  • Tailor-made wavelength configurations
  • Seamless integration with beverage analyzers
  • Easy installation at your plant

More info
