Inline Beverage Analyzer:
Cobrix 5500/5600

  • 360°

Intelligent multi-parameter measurement solution for beverage production

Pick your country.
Americas
Brazil
PT
Canada
EN | FR
Colombia
ES
Mexico
ES
Peru
ES
United States
EN
Europe
Austria
DE
Belgium
EN | FR
Croatia
EN
Czech Republic
CS
Denmark
EN
Finland
EN
France
FR
Germany
DE
Hungary
HU
Ireland
EN
Italy
IT
Liechtenstein
DE | FR | IT
Luxembourg
EN | FR
Netherlands
EN
Poland
PL
Slovakia
CS
Slovenia
EN
Spain
ES
Sweden
EN
Switzerland
DE | FR | IT
United Kingdom
EN
Africa & Middle East
South Africa
EN
Turkey
TR
Asia-Pacific
Australia
EN
India
EN
Japan
JA
Malaysia
EN
New Zealand
EN
Philippines
EN
Singapore
EN
South Korea
EN | KO
Taiwan
ZH
Thailand
EN
Vietnam
EN
If you can't find your country in the list get a quote

The new Cobrix 5500 and Cobrix 5600 provide continuous measurements of °Brix, %Diet, and CO2 during soft drink production. Being pre-adjusted in the factory, they do not require time-consuming, product-specific on-site adjustments and commissioning procedures. Besides measuring °Brix, %Diet, and CO2 concentration, various other parameters, such as alcohol content, sugar inversion, and optionally also conductivity, color, and oxygen, can be determined.

They use digital signal processing and new mechanical design to deliver stable, drift-free results and help keep your production highly efficient.

Key features

Two system configurations to suit your application

Cobrix 5500

Density and sound velocity sensor combined with a p/T (volume expansion) CO2 measurement

  • Low maintenance – depending on the operating conditions maintenance is required on average every 6 to 18 months
  • Product-specific setups at the best value
  • W-shaped oscillating tube
  • Digital signal processing
  • New mechanical design for reduced size and weight

Cobrix 5600

Density and sound velocity sensor combined with an optical CO2 measurement

  • Product-independent measurements (whatever your beverages’ solubility, sugar composition, foreign gases, color, or turbidity: nothing influences your readings)
  • Suitable for hygienic applications
  • Maintenance-free
  • W-shaped oscillating tube
  • Digital signal processing
  • New mechanical design for reduced size and weight



Rapid production start

Save time and costs during commissioning and production downtimes, and accommodate a wide range of soft drinks with little or no adjustment. Anton Paar’s Cobrix models give you the flexibility to react to product and market demands instantly.



Safeguard your production – maintain your product quality

Continuous measurement of all your product parameters, including °Brix, %Diet or TA, CO2, alcohol, sugar inversion, and more, ensures that your production and your product is within specifications.



Ease of use

A simple touchscreen user interface facilitates the setup of the instrument and product parameters. In addition, you can visualize your process and display graphical trends with just a few clicks. By setting lower and upper limits on measurement values, alarms can be set and triggered using digital or relay outputs.



Optimal use of raw materials due to accurate parameter measurements anytime

  • Compensate for sugar inversion
  • Determination of actual °Brix, °Brix fresh, and °Brix inverted



Fits your production environment

  • Inline or bypass version, depending on your special production conditions
  • Evaluation unit can be installed up to 250 meters away from the sensor to facilitate access to production data
  • Standard Ethernet connection to Davis 5 software to visualize statistical and production data and trends from all around the production plant and also connect to lab equipment, if applicable
  • Various communication possibilities: classic analog outputs (4 mA to 20 mA), digital-IOs, and various fieldbuses available (PROFIBUS DP, Modbus TCP, PROFINET, DeviceNet, or EtherNet/IP)



Improved process capability – keeping an eye on all relevant key parameters

The powerful data acquisition and visualization software (client-server) Davis 5 enables you to save all data and alarms, provides statistical process control and graphical trend analysis, and allows product adjustments. Password-protected access to all measuring systems is possible from various locations, while providing powerful reporting and integration with your corporate quality management system.



Technical specifications

Cobrix 5500 and
Cobrix 5600

Sugar/Diet concentration
Range 0 °Brix to 50 °Brix
0 °Brix to 15 °Brix for products with sugar inversion
0 %Diet to 150 %Diet of target
Accuracy Sugared drinks: <0.02 °Brix
Diet drinks: <1 %
CO2 concentration
Range 0 Volumes to 6 Volumes
0 g/L to 12 g/L
Accuracy 0.025 Vol. (0.05 g/L)
FABs(alcopops)
Alcohol range 0 %w/w to 16 %w/w (%weight/weight)
0 %v/v to 20 %v/v (%volume/volume at 20 °C)
Alcohol accuracy 0.02 %v/v

Measuring temperature 0 °C to +30 °C
0 °C to +25 °C for products with sugar inversion, diets, and FABs

Anton Paar Certified Service

The Anton Paar quality in service and support:
  • More than 350 manufacturer-certified technical experts worldwide
  • Qualified support in your local language
  • Protection for your investment throughout its lifecycle
  • 3-year warranty
Learn more

Documents

Categories
Industry
Application
Product
Your choice: Reset all filters

Accessories

Accessories

Accessories

Accessories

Not all items are purchasable online in specific countries.

To find out if you can purchase online from your location, check the online availability below.

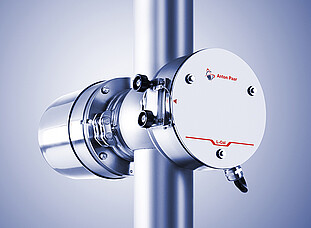

Color Sensor:
