Rheometer: MCR 102, 302, 502

The new MCR rheometers are based on a concept at the cutting edge of technology. The EC motor technique, the low friction bearing and the patented normal force sensor have been optimized over years to satisfy the highest demands of rheologists. Any type or combination of rheological tests, both in rotational and oscillatory mode, are possible with the MCR rheometers. The modularity of the system allows the integration of a wide range of temperature devices and application-specific accessories. The innovative and patented features Toolmaster™, TruGap™ as well as T-Ready™ are breakthroughs in terms of user-friendliness. TruRate™ and TruStrain™ ensure absolute control at any time during rheological tests.

Get in touch

Key Features

Technical highlights

  • Powerful, synchronous EC motor drive
  • Fully digital instrument employing the latest DSP (Digital Signal Processing) technology
  • High-precision air bearing, including patented normal force sensor
  • TruGap™: Innovative and patented system for measuring the gap
  • TruRate™: Sample-adaptive controller in rotation and step strain
  • TruStrain™: Fast and accurate strain control due to improved real-time position control oscillation (formerly DSO)
  • Intuitive color display
  • Different MCR models with outstanding specifications for various applications

Ease of use

  • Toolmaster™: Patented system for automatic recognition of measuring system and accessories
  • QuickConnect coupling: Easy, one-hand measuring system connection
  • T-Ready™: Reduces waiting times by detecting and signalling sample temperature equilibration
  • USB connection to computer/software
  • Wide range of measuring systems for all kinds of applications
  • Ethernet connection for remote control of the instrument through the company network
  • Rheometer software: User-friendly application software with 21 CFR Part 11 compatibility

Wide range of accessories

  • Temperature accessories in the temperature range from -150 °C to +1000 °C

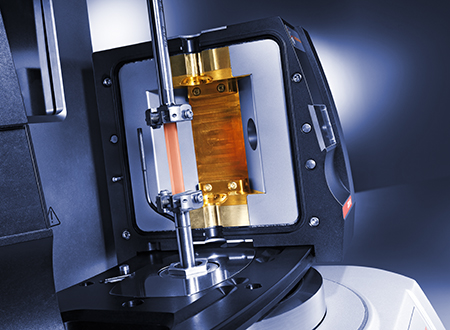

  • Application-specific accessories for DMA and DMTA measurements, rheo-optics, magneto- and electrorheology, interfacial rheology, UV curing and many other applications

Technical Specifications

All instruments of the MCR series are equipped with the Toolmaster™ system for automatic recognition of the measuring system and accessories. All systems are interchangeable between the different models.



Technical Data



Unit MCR 52 MCR 102 MCR 302 MCR 502
BearingBallAirAirAir
EC motorYesYesYesYes
Maximum torquemNm200200200230 (300)*
Min. torque, rotationnNm200 µNm511
Min. torque, oscillationnNm200 µNm7.50.50.5
Angular deflection
(set value)
µrad1 to ∞0.5 to ∞0.05 to ∞0.05 to ∞
Min. angular velocityrad/s10-410-8 10-9 10-9
Max. angular velocityrad/s314314314314
Max. speed 1/min3000300030003000
Min. angular frequency rad/s10-3 10-7 10-7 10-7
Max. angular frequency rad/s628628628628
Normal force range N-0.01-500.005-500.005-50 (70)*
Normal force resolution mN-10.50.5
Max. temperature range °C-150 to +1000-150 to +1000-150 to +1000-150 to +1000
Toolmaster™YesYesYesYes
QuickConnect-YesYesYesYes
Automatic gap control / setting (AGC/AGS) -YesYesYesYes
TruGap™ -NoYesYesYes
TwinDrive-ready -NoNoNoYes
Direct strain controller-NoYesYesYes
Direct stress contoller-NoYesYesYes
TruRate™-OptionalOptionalYesYes
TruStrain™-NoOptionalYesYes
Normal force and velocity profiles, tack, squeeze-NoOptionalYesYes
Raw data (LAOS, waveform)-NoOptionalOptionalYes
  *Rheometer EC-Twist 502 with max. 300 mNm / 70 N available on request

Standards

A

ASTM D4440
ASTM D4473
ASTM D5279

E

EN 14770
EN 3219

D

DIN 13343
DIN 1342 1-3
DIN 3219
DIN 51810 Part 1
DIN 51810 Part 2
DIN 53019-1
DIN 53019-2
DIN 54458

P

Ph. Eur. 0132
Ph. Eur. 2.2.10 - Rotating viscometer method
Ph. Eur. 2.2.8 - Viscosity

I

ISO 3219
ISO 6721-1

U

USP 912 - Rotational Rheometer Methods
